Connector Map
Chapter: Connectors
Beckhoff New Automation Technology CB4053
page 15
4.1 Connector Map

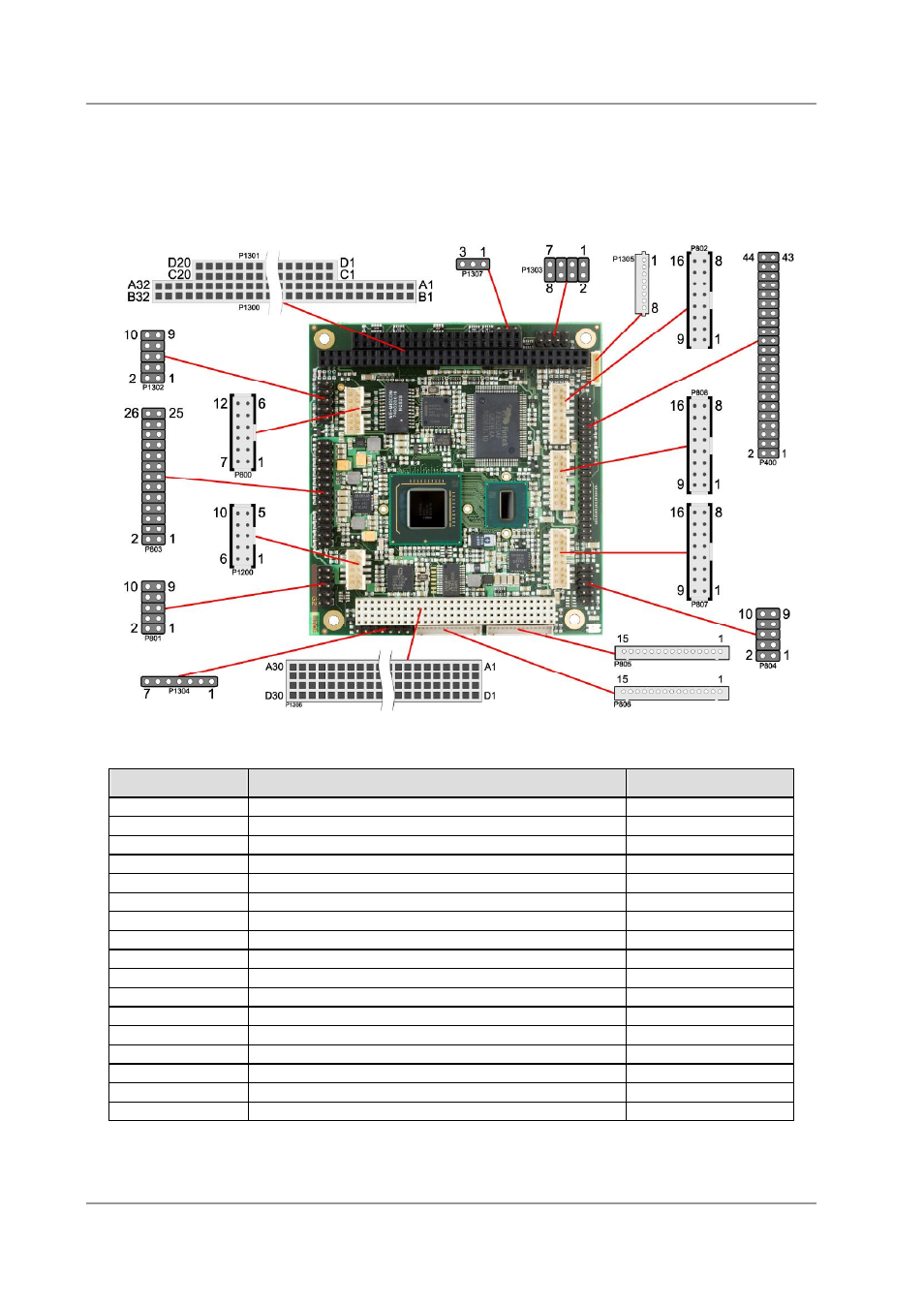

Please use the connector map below for quick reference. Only connectors on the component side are
shown. For more information on each connector refer to the table below.
Ref-No.
Function
Page
P400
"IDE Interface"
p. 32
U500*
"Memory"
p. 18
P800**
"LAN"
p. 30
P801
"Serial Interface COM1"
p. 35
P802**
"Audio"
p. 31
P803
"Parallel Interface LPT"
p. 34
P804
"Serial Interface COM2"
p. 36
P805/6
"LCD"
p. 26
P807/8**
"USB"
p. 28
P1200**
"VGA"
p. 25
P1300/1
"PC/104-Bus"
p. 21
P1302
"System"
p. 17
P1303
"Power Supply"
p. 16
P1304
"SMBus"
p. 37
P1305
"Monitoring Functions"
p. 38
P1306
"PC/104-Plus Bus"
p. 23
P1307
"Fan"
p. 39
* not in the picture above (cf. bottom side of board)
** pin orientation holds for board revision G2 and later
