Appendix
Assembly dimensions
Notice mounting orientation
Attention
The assembly of the unit must take place with the orientation diagrammed here. All dimensions are in mm.

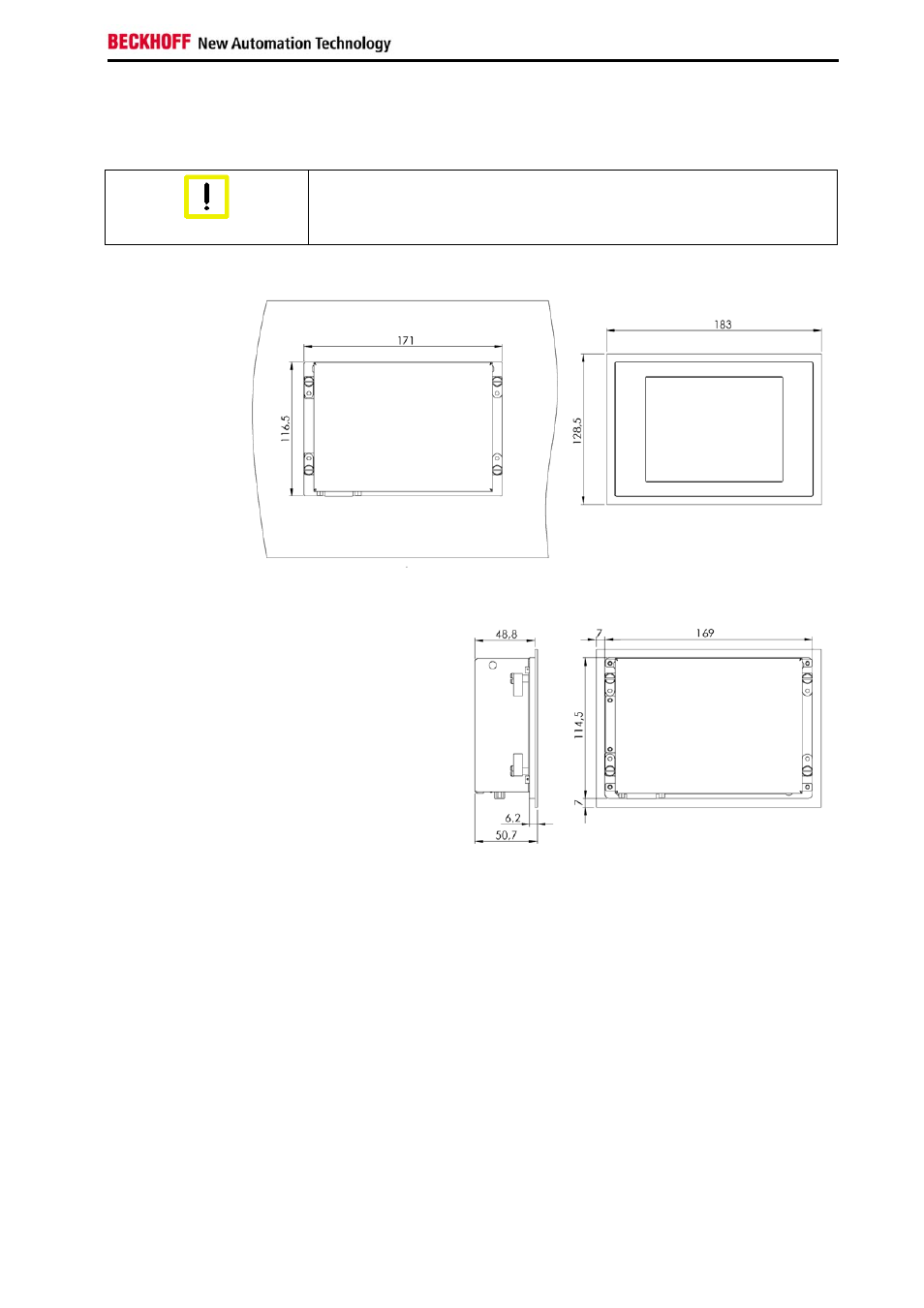

Control Panel CP6907 with 5,7“ display
front view
rear view with
cutout
dimensions
side view
rear view
CP69xx
