Operating Instructions

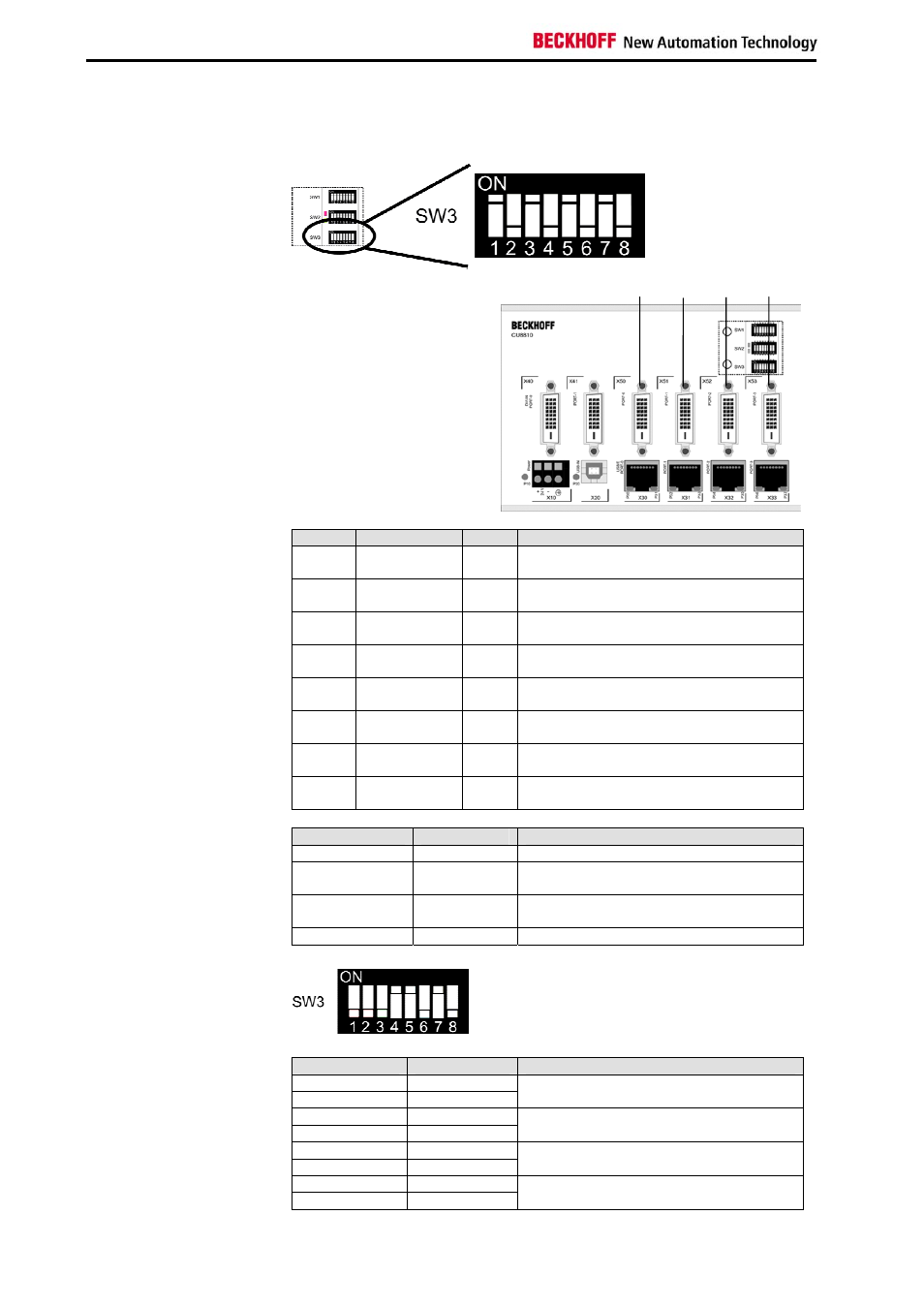

DIP Switch 3 (SW3)
DIP Switch 3 (SW3) This switch configures the output ports of the device. For each output port
there are two switches to select an input source.
Switch Name Port Function
1 IN_SEL0_high 0
(X50)
DVI Data Input Select Switch 1
for DVI Output Port 0 (X50)
2 IN_SEL0_low 0
(X50)
DVI Data Input Select Switch 2
for DVI Output Port 0 (X50)
3 IN_SEL1_high 1
(X51)
DVI Data Input Select Switch 1
for DVI Output Port 1 (X51)
4 IN_SEL1_low 1
(X51)
DVI Data Input Select Switch 2
for DVI Output Port 1 (X51)
5 IN_SEL2_high 2
(X52)
DVI Data Input Select Switch 1
for DVI Output Port 2 (X52)
6 IN_SEL2_low 2
(X52)
DVI Data Input Select Switch 2
for DVI Output Port 2 (X52)
7 IN_SEL3_high 3
(X53)
DVI Data Input Select Switch 1
for DVI Output Port 3 (X53)
8 IN_SEL3_low 3
(X53)
DVI Data Input Select Switch 2
for DVI Output Port 3 (X53)
IN_SELx_high IN_SELx_low Function
off off Disable the DVI Output Port x
off on Select DVI Input Port 1 (X41) for
DVI Output Port x
on off Select DVI Input Port 0 (X40) for
DVI Output Port x
on on Illegal
Example
The displayed DIP Switch settings result
in the following functions:
Switch Setting Function
1 off
2 off Disable DVI Output Port 0 (X50)
3 off
4 on Select DVI Input Port 1 (X41)
for DVI Output Port 1 (X51)
5 on
6 off Select DVI Input Port 0 (X40)
for DVI Output Port 2 (X52)
7 on
8 off Select DVI Input Port 0 (X40)
for DVI Output Port 3 (X53)
DVI Output Port 0 1 2 3
12 CU8810-0000
