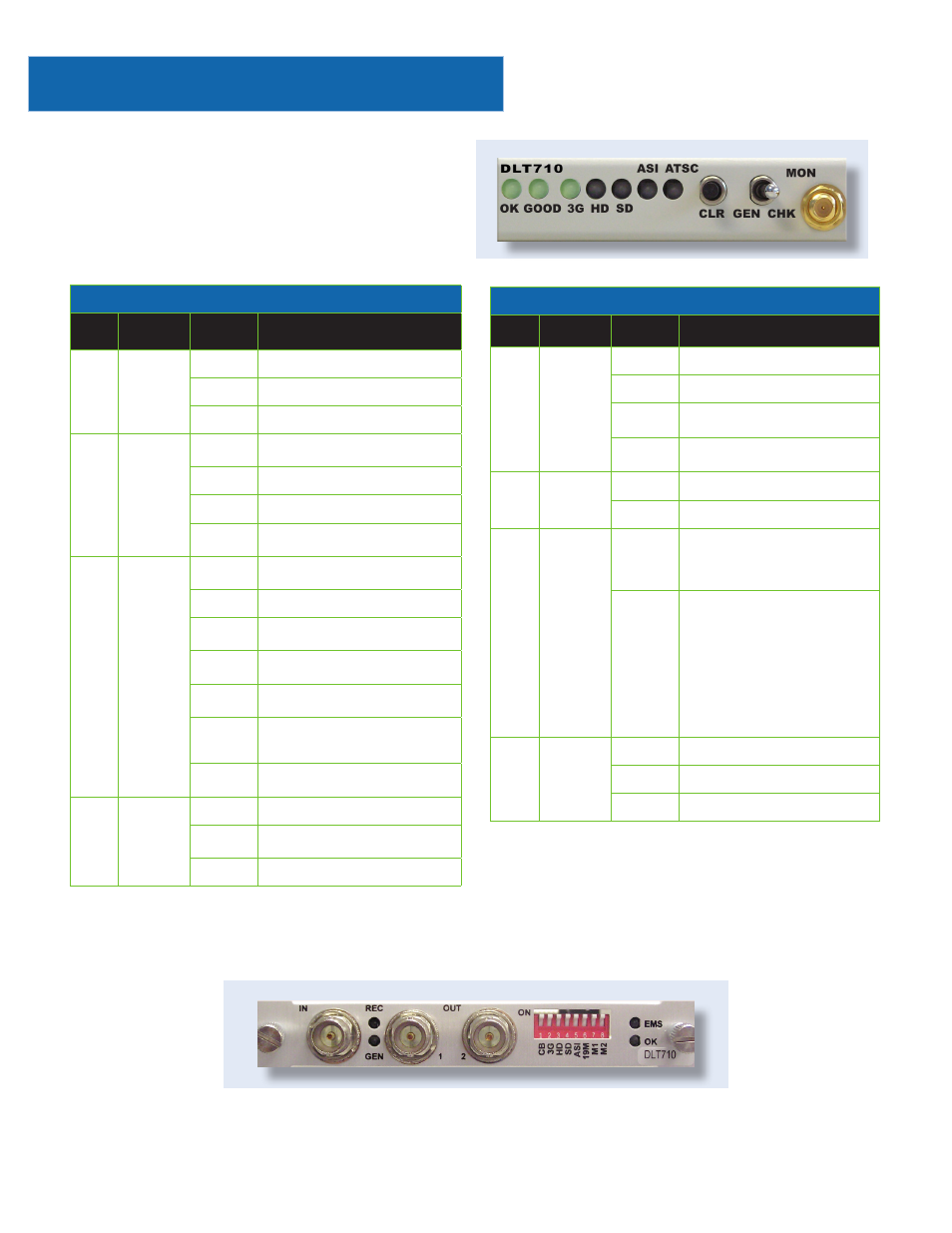

Front Panel LEDs
Front
LED
Function Color Description
OK
DLT710
Module
Status
n Green No alarm, Normal operation
n Yellow Minor alarm
n Red Major alarm
GOOD Test
Status
OFF
Test sequence not completed and no
errors detected
n Green Test completed with no errors
n Yellow Inverted ASI signal detected.
n Red
Test sequence complete, one or more
errors found
3G
HD
SD
ASI
ATSC
Checker
Video
Rate*
OFF
Indicated rate not selected or not
detected
n Yellow Indicated rate enabled, not yet tested
 Yellow
Indicated rate detected, testing in
progress
n Green
Indicated rate enabled, test complete
with no errors
 Green
Indicated rate detected, but not being
tested
n Red
Selected rate enabled, signal not
being detected, one or more errors
found
 Red
Selected rate detected, one or more
errors found
3G
HD
SD
ASI
ATSC
Generator
Video
Rate*
OFF Indicated rate not enabled
n Green
Indicated rate enabled, not yet
generated
 Green Indicated rate is being generated
*Front panel GEN/CHK toggle switch determines whether the LEDs
operate as Generator status indicators or Checker status indicators.
Rear Panel Switches
A
R2
08
-0
08
15
0-
B0
0_
C
Rear Panel LEDs
Rear
LED
Function Color Description
REC
Receiver
Status
OFF Backplane input is selected
n Green Input present at BNC
n Yellow
Double termination or low input
level detected
n Red
BNC input is enabled, but no signal
is present
GEN
Generator
Status
OFF Generator is inactive
n Green Generator is active
EMS
DigiLink
Manager
System
Status
OFF
The DLT710 module is in local
mode and its configuration
is controlled by the onboard
configuration switches
n Green
The DLT710 module is in remote
mode and the configuration has
been set by DigiLink Manager.
When in remote mode, the actual
configuration of the module will
likely not match the settings
of the configuration switches
and changing the configuration
switches will have no effect on the
module operation
OK
Module
Status
n Green No Alarm, Normal Operation
n Yellow Minor Alarm
n Red Major alarm
 Flashing green |  Flashing yellow |  Flashing red
Multi-Format Digital Video Generator and
Test Module [DLT710]
