FEATURES

High efficiency: 90.5% @ 3.3V/20A

Size: 33.0x22.9x9.5mm (1.3”x0.90”x0.37”)

Input UVLO and OVP

Industry standard footprint and pinout

Fixed frequency operation

SMD and Through-hole versions

OTP and output OCP, OVP (default is auto-

restart)

Output voltage trim: -20%, +10%

Monotonic startup into normal and

pre-biased loads

2250V isolation and basic insulation

No minimum load required

No negative current during power or enable

on/off

ISO 9001, TL 9000, ISO 14001, QS 9000,

OHSAS 18001 certified manufacturing facility

UL/cUL 60950 (US & Canada) recognized,

and TUV (EN60950) certified

CE mark meets 73/23/EEC and 93/68/EEC

directive

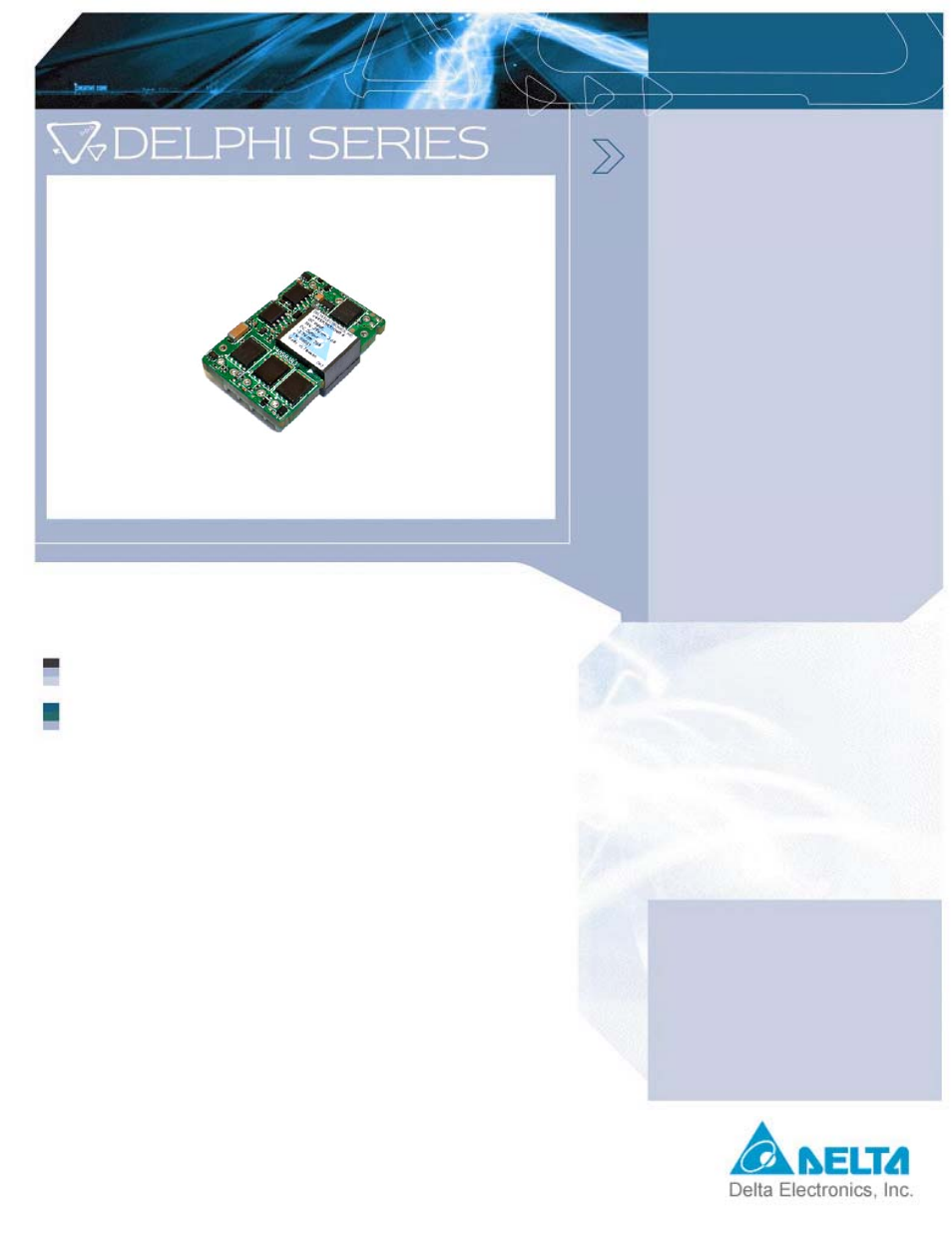

Delphi Series V48SR, 1/16

th

Brick 66W

DC/DC Power Modules: 48V in, 1.2V~15V, 25A out

The Delphi Series V48SR, 1/16

th

Brick, 48V input, single output, isolated

DC/DC converter, is the latest offering from a world leader in power
systems technology and manufacturing ― Delta Electronics, Inc. This
product family provides up to 66 watts of power or 25A of output current
(1.8V and below) in a new 1/16

th

brick form factor (1.3”x0.90”) and pinout.

With creative design technology and optimization of component placement,
these converters possess outstanding electrical and thermal performance,
as well as extremely high reliability under highly stressful operating
conditions. Typical efficiency of the 3.3V/20A module is greater than
90.5%. All modules are protected from abnormal input/output voltage,
current, and temperature conditions. For lower power needs, but in a
similar small form factor, please check out Delta S48SP (36W or 10A) and
S48SE (17W or 5A) series standard DC/DC modules.


OPTIONS

SMD module available

Positive remote On/Off

OTP and output OVP, OCP mode

(Auto-restart or latch)

APPLICATIONS

Optical Transport

Data Networking

Communications

Servers

DATABRIEF
DB_V48SR_02022007
