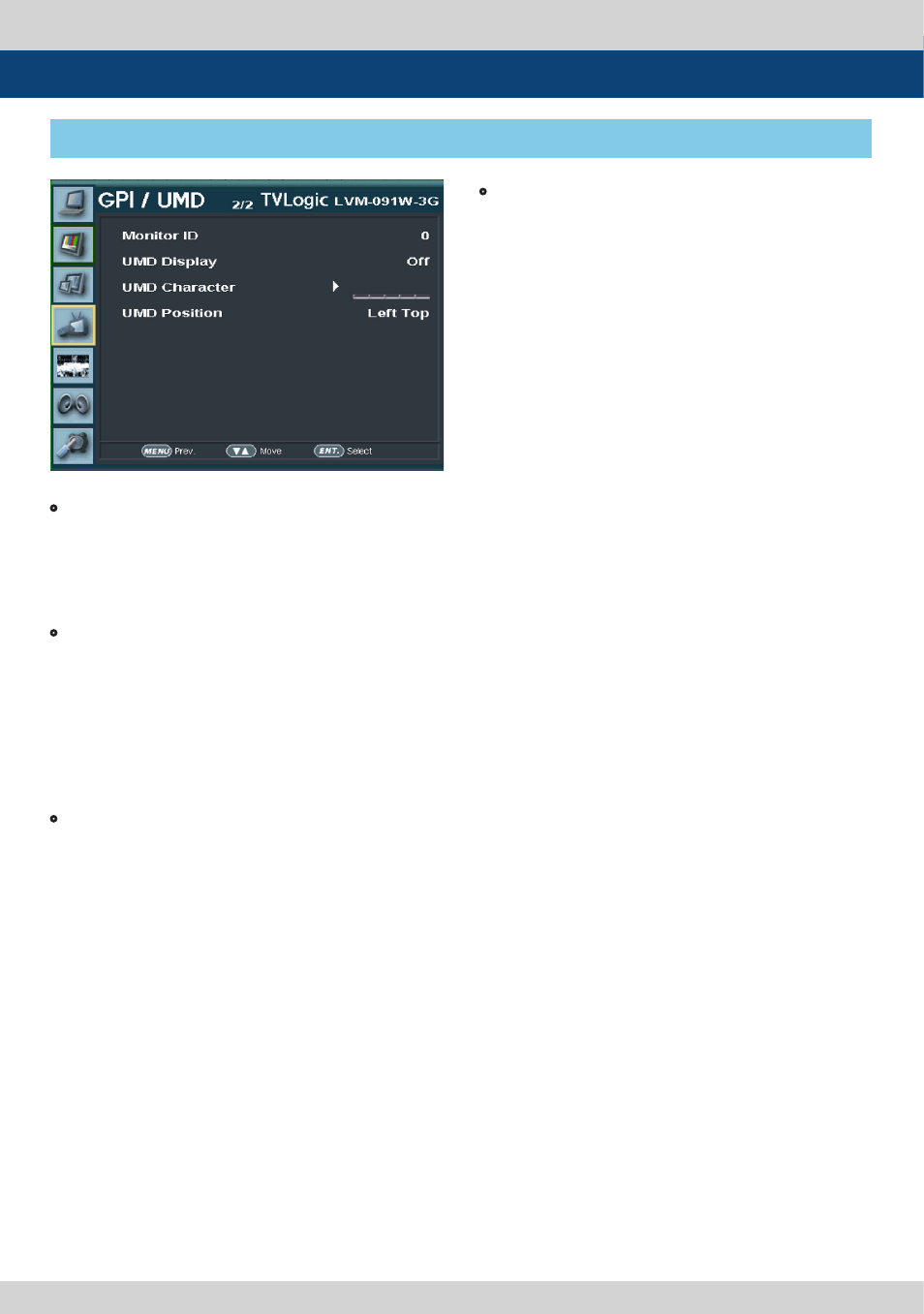

[4] GPI / UMD
5. Menu Operations
• Momitor ID
- Sets the ID of each monitor for the TV Logic
control protocol or DYNAMIC UMD using RS-
422/485 communication.
- Available values are between 0, 1, 2 ~ 125.
• UMD Display
- This item sets UMD, ANC and DYNAMIC UMD.
* UMD : Displays user customized characters
on screen.
* ANC: Displays characters embedded in SDI
signal.
* DYNAMIC UMD: Displays incoming character
or tally signal from TSL Protocol.
• UMD Character
- Customizes the characters for Under Monitor
Display.
- Alphabets, numbers and special symbols are
available.
- Maximum of 8 characters are available.
• UMD Position
- Used to set position of UMD.
- Activates in order : [Left Top]-[Mid Top]-[Left
Bottom]-[Mid Bottom]-[Left Bottom]-[Left Top].
