11

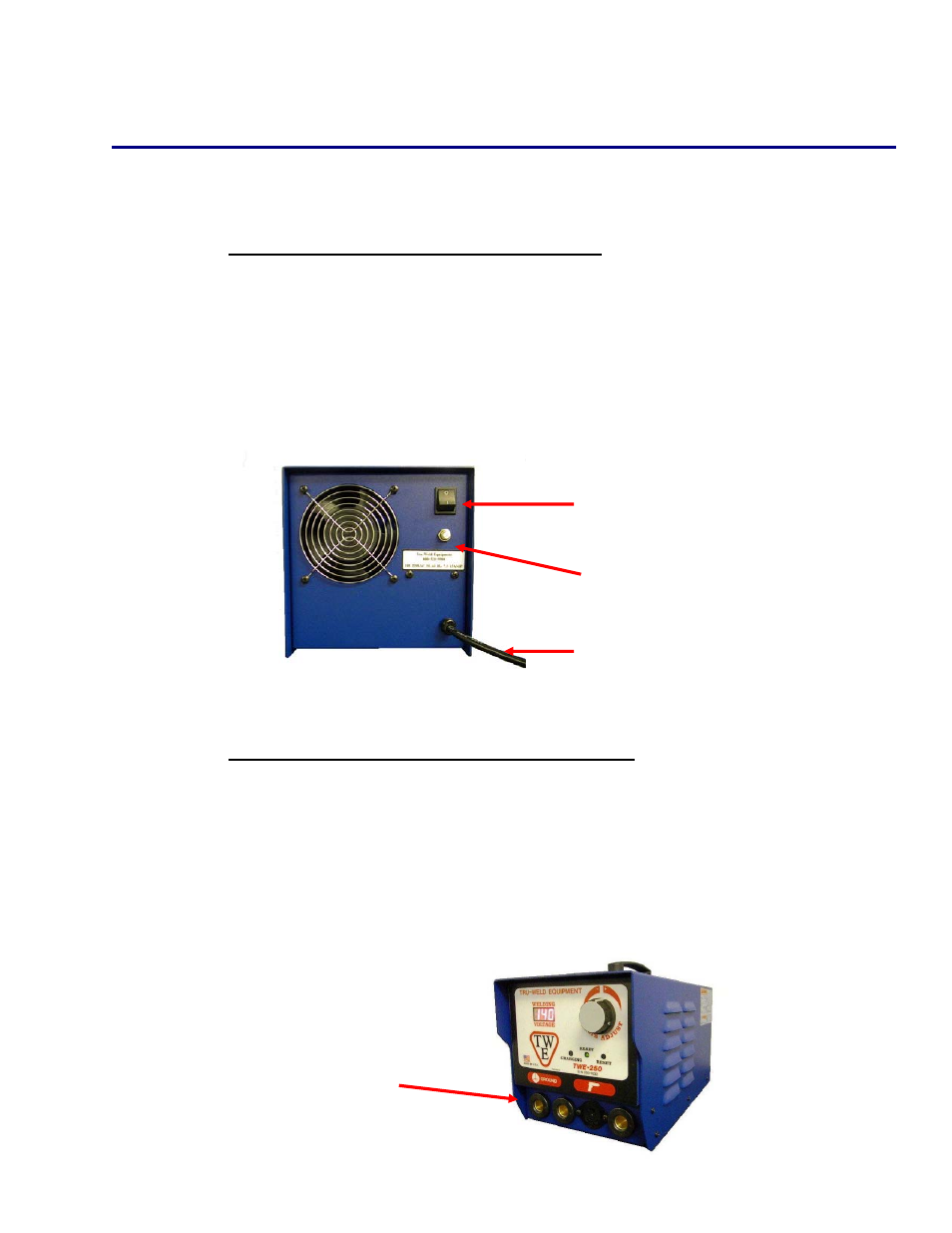

POWERING UP THE EQUIPMENT
Setup the equipment power supply (Control Unit) and connect to the main power,
making certain of the proper voltage requirement of the particular unit.
Capacitor Discharge (CD) units generally require 110 VAC @ 60Hz incoming power.
Refer to the safety recommendations before plugging this unit in.
ON/OFF Switch
Circuit Breaker
Power Cord (110 VAC)
CONNECTING THE WELDING LEADS
Connect the welding ground cable into the (+) terminal mount socket on the front of
the welding unit.
***NOTE ‐ the cable end plug has a flat which aligns with a dot on the panel mount
socket. Secure the connector into the panel mount socket, and then turn it clockwise
until it locks into proper position. Failure to do so could result in damage to the con‐
nector.
Ground Cable Socket
SET-UP AND WELDING
