Dayton Operating Instructions and Parts Manual
2
Dayton Portable
Oil-Fired Heaters
®
105553
2E510F, 2E511F, 3E218E, and 3E219E
Amperage
Model
Electrical Input
(during normal run)
2E510F
120 Volt/60 Hertz
2.0
2E511F
120 Volt/60 Hertz
2.0
3E218E
120 Volt/60 Hertz
3.6
3E219E
120 Volt/60 Hertz
3.6
ELECTRICAL SPECIFICATIONS
Product Identification

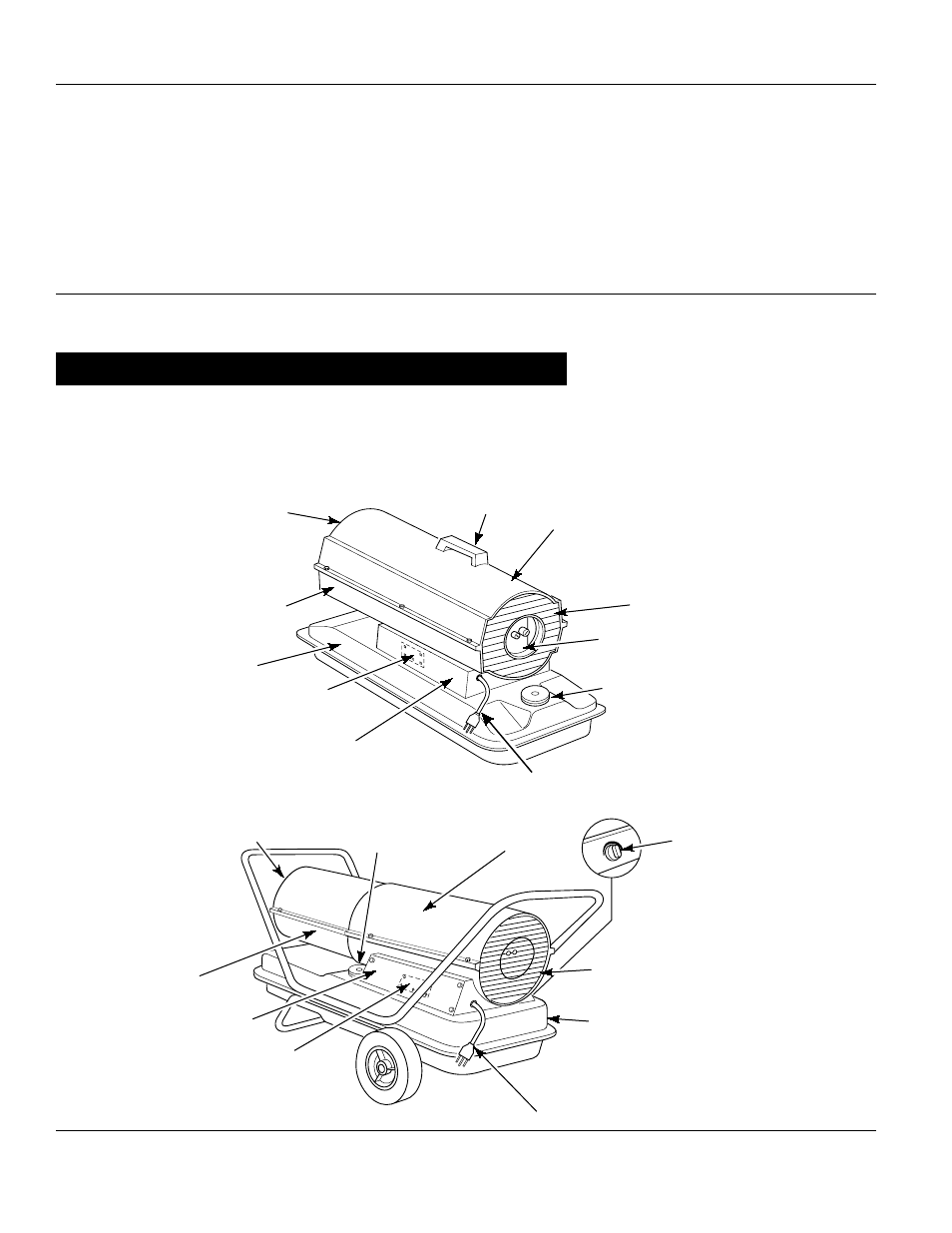

Figure 4 – Models 3E218E and 3E219E
Power Cord
Fuel
Cap
Fan Guard
Figure 3 – Models 2E510F and 2E511F
Hot Air Outlet
Fan
Guard
Fuel
Tank
Fuel Cap
Power Cord
Side Cover
Fuel Tank
Air Filter
End Cover
Side Cover
Lower Shell
Upper Shell
Ignition Control Assembly
(on inside of side cover)
Lower
Shell
Hot Air
Outlet
Handle
Upper Shell
Ignition Control Assembly
(on inside of side cover)
Specifications (Continued)
Thermostat
Knob
