8/18

4. Using the included 2.5 mm Allen key (E), replace and completely retighten the 4 screws holding

the “Sequential (+/-)” shift plate in place. Screw the gear shift knob back on (clockwise).

Carry out this procedure in reverse to replace the “H-pattern (7+1)” shift plate.

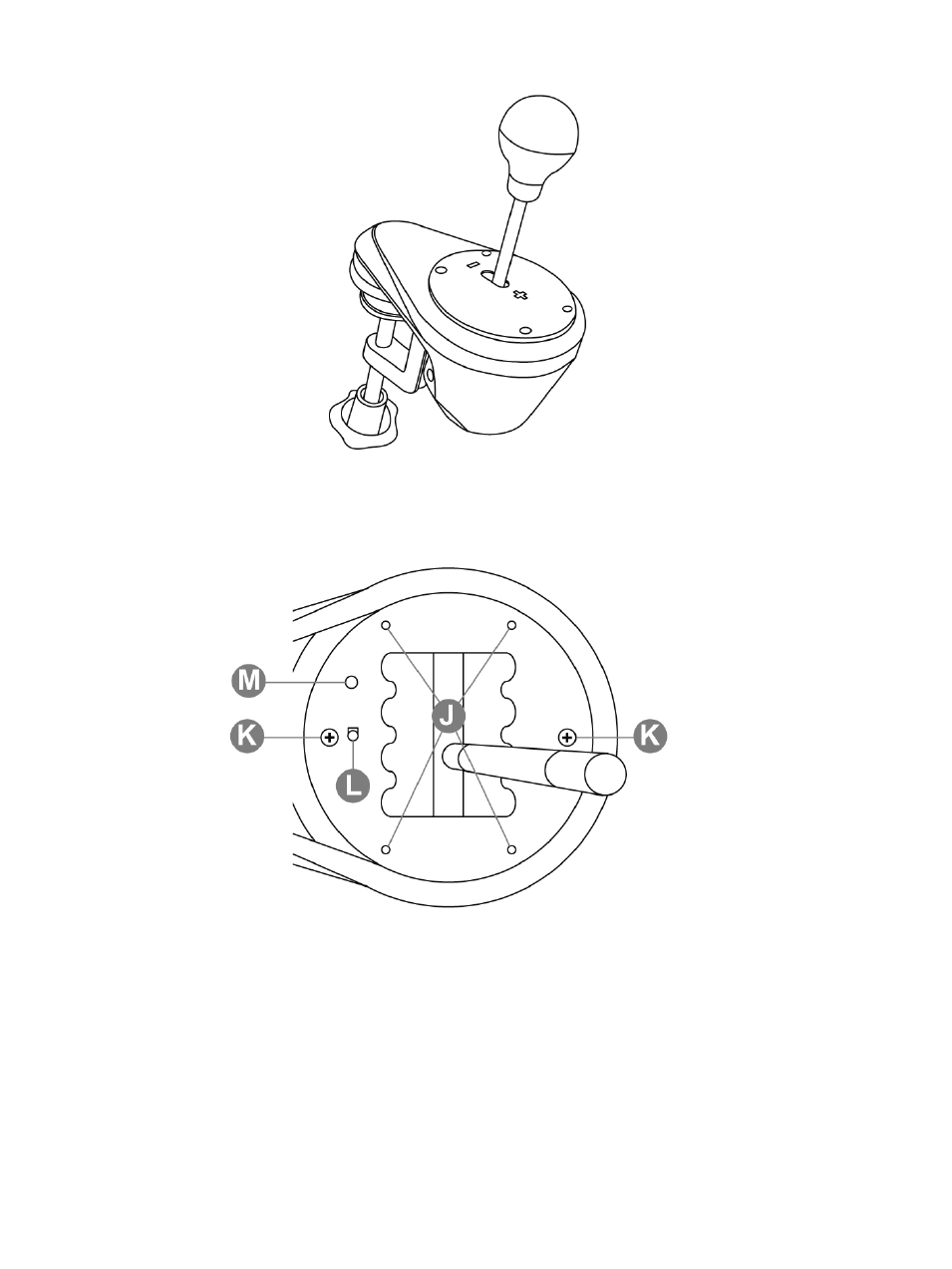

Notes regarding the internal structure's top cover:

J: 4 “screw threads” to attach the shift plates (C or D).

K: 2 screws which hold the internal structure in place (do not unscrew).

L: Button which automatically detects the type of shift plate used (C or D). Is pressed automatically

when the “Sequential (+/-)” shift plate is installed. Keep this area clean in order to avoid any

detection problems.

M: Slot for easier positioning of the shift plates.
