065-1800GSFPZ Hardened 10/100/1000BaseT/TX to 1000Base SFP Media
Converter with PoE/PoE+
V3 2
Installation
SFP Transceiver Module
You can select different SFP modules as required (Please refer to
http://www.signamax.com/sfp-interface-modules for the appropriate module).

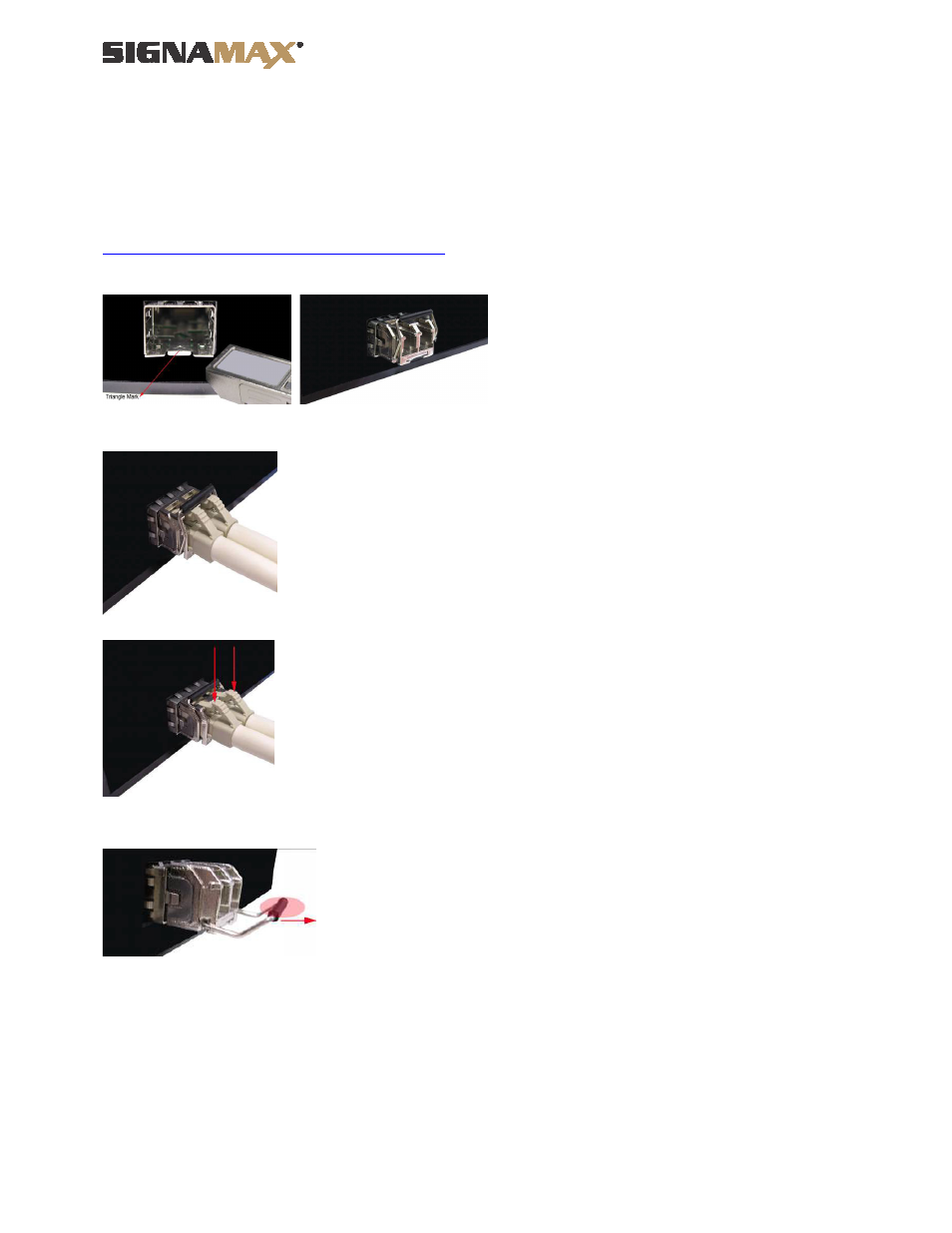

To insert/remove the SFP, the procedures are as follow:
1. On the side panel, insert the SFP module into
the SFP port until it is securely locked.
2. Connect the optical fiber (1/2 core) to the LC connector(s) of the SFP.
3. To remove the SFP module, press down the lock of the LC connector of the
optical fiber to pull out the fiber cable.
4. Pull down the SFP lever and hold its position. Pull out the SFP module
from the SFP port.
