6

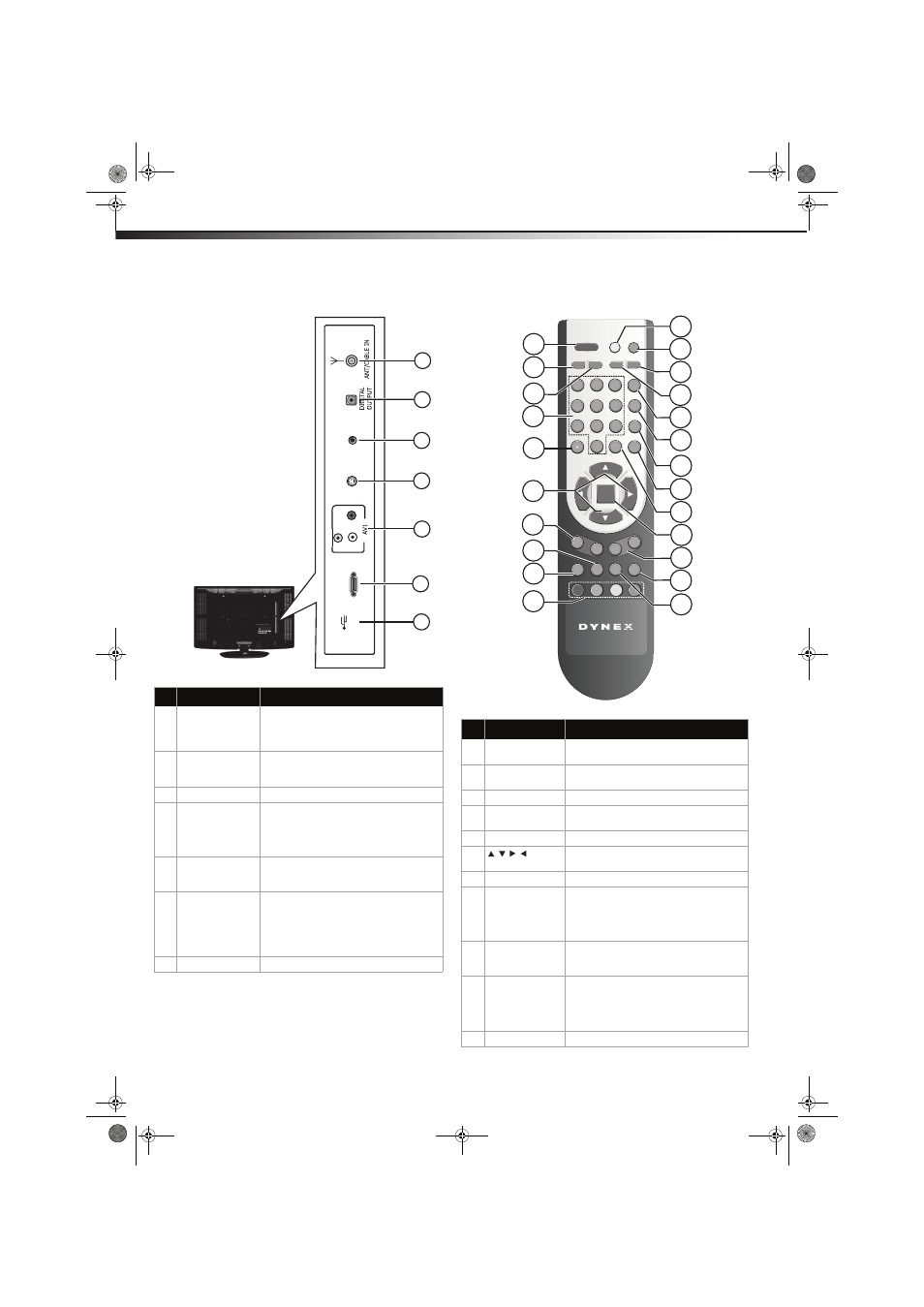

TV components DX-L40-10A
Side connections Remote control
## Component Description
1 ANT/CABLE IN
jack Connect an antenna, cable TV, or a satellite
box to this jack. For more information, see
“Connecting an antenna, cable TV, or
satellite TV box” on page 9.
2 DIGITAL OUTPUT Connect an optical audio device to this
jack. (Only available in digital TV or HDMI
modes.)
3 HEADPHONE jack Plug your headphones into this jack.
4 S-VIDEO jack Connect an S-Video cable from a VCR or
DVD player to this jack. Also requires an
audio connection or audio output from an
amplifier (see “Connecting an S-video
device” on page 11).
5 AV1 (Video and
audio jacks) Connect a composite video and audio L
and R from a VCR, game console, or
camcorder to these jacks.
6 HDMI1 jack Connect an HDMI device, such as a cable
box or DVD player, to this jack. An HDMI
cable carries both video and audio, so you
do not need to make an audio connection.
For more information, see “Connecting an
HDMI device” on page 10.
7 SERVICE port For service update only. Do not use.
L
R
VID
EO
S-
V
ID
EO H
EA
D
PH
O
N
E
HDMI1
S
ER
VIC
E
2
3
5
6
7
1
4
# Button Description
1 POWER Press to turn on your TV. Press again to put
your TV in Standby mode.
2 MUTE Press to turn off the sound. Press again to
turn on the sound.
3 PICTURE Press to select the video mode.
4 Numbers Press to enter channel numbers or the
parental control password.
5 • (dot) Press to select a digital sub-channel.
6 Press to navigate through the on-screen
menus.
7 VOL+/VOL– Press to increase or decrease the volume.
8 MTS/SAP Press to enable the SAP (Second Audio
Program) function. This lets you listen to a
program using an alternative second
language. Function availability depends on
your TV provider.
9 CCD Press to turn closed captioning on or off. For
more information, see “Adjusting the
setup” on page 18.
10 Electronic
Program Guide
(EPG) function
buttons After pressing the GUIDE button in the
digital TV channel option, the same color
buttons will appear with explanations in
the on-screen display (OSD). Follow the
steps illustrated in the OSD.
11 Power indicator Lights when you turn your TV on.
4
2 3
5 6
7 8 9
0
1
INPUT INPUT
ZOOM ZOOM MUTE MUTE PICTURE PICTURE
ENTER ENTER
AUDIO AUDIO
TIME TIME CCD CCD SLEEP SLEEP MTS /SAP MTS /SAP
CH- CH-
RECALL
GUIDE GUIDE
INFO
EXIT EXIT
MENU MENU
CH+ CH+
VOL- VOL-
VOL+ VOL+
POWER
EN-21669D
1
4
3
5
6
2
7
8
9
10
13
14
15
16
17
18
12
11
19
20
21
22
23
