10
Making connections DX-L40-10A
To play from the VCR:
1 Turn on your TV, then press INPUT. The INPUT
SOURCE menu opens.
2 Press or to select AV2, then press ENTER.
3 Turn on the VCR, insert a videotape, then press
PLAY on the VCR.

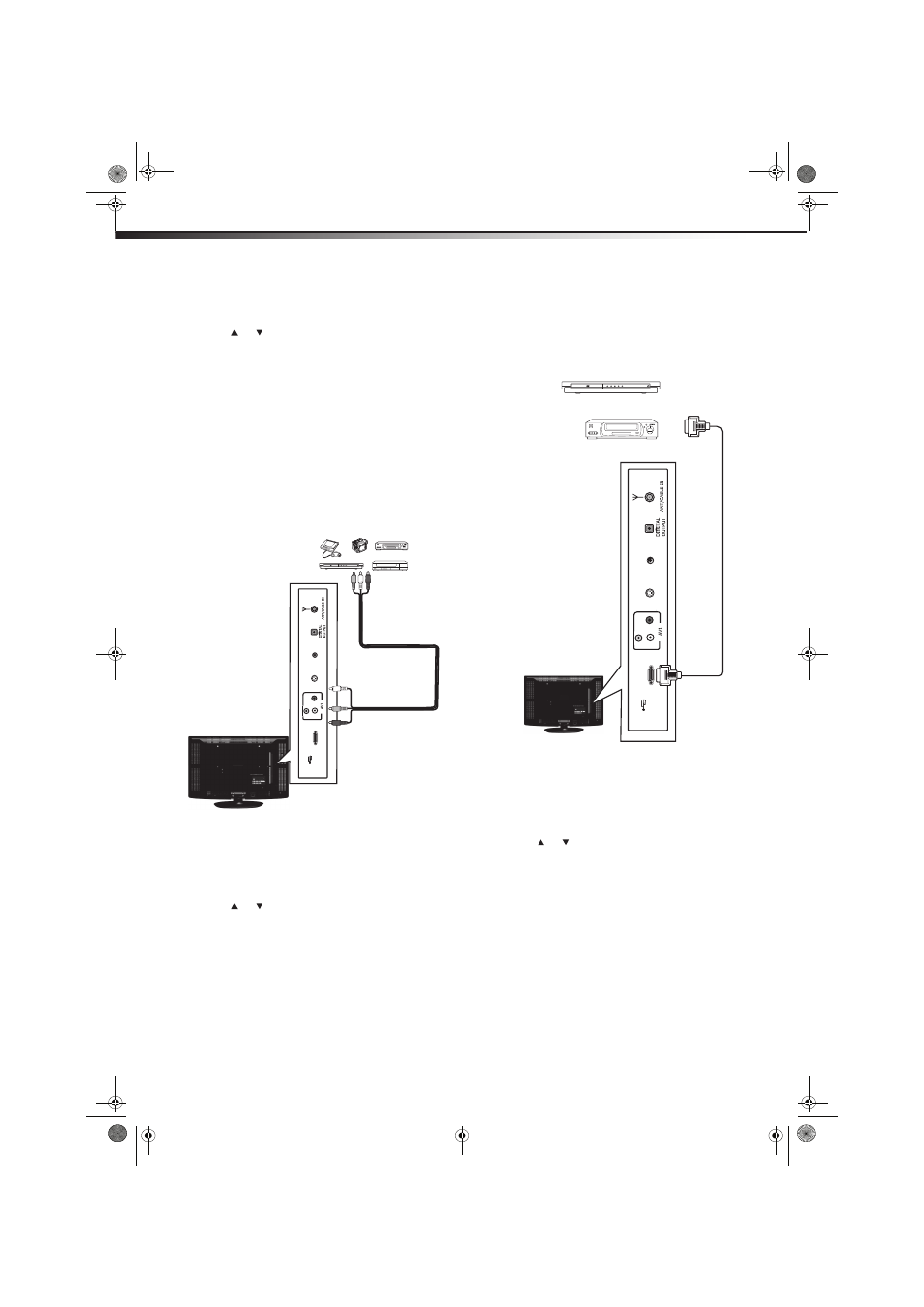

Connecting a camcorder or gaming
console
Tip: Some game consoles have an HDMI connector, which
can be used for a better picture.
To connect a camcorder or game:
1 Make sure that your TV’s power cord is
unplugged and the camcorder or gaming
console is turned off.
2 Connect an AV cable to the AV OUT VIDEO,
AUDIO-L, and AUDIO-R jacks on the camcorder
or gaming console.
3 Connect the other end of the cable to the AV1
jack and the AV1 audio in jacks on the side of
your TV.
To play from a camcorder or gaming console:
1 Turn on your TV, then press INPUT. The INPUT
SOURCE menu opens.
2 Press or to select AV1, then press ENTER.
3 Turn on the camcorder or game, and set it to
the correct output mode. See the camcorder’s
or gaming console’s user guides for more
information.
Connecting an HDMI device
To connect an HDMI device:
1 Make sure that your TV’s power cord is
unplugged and the HDMI device is turned off.
2 Connect an HDMI cable to the HDMI OUT jack
on the HDMI device.
3 Connect the other end of the cable to the
HDMI1 on the side of your TV or the HDMI2 or
HDMI3 jack on the back of your TV.
To play from the HDMI device:
1 Turn on your TV, then press INPUT. The INPUT
SOURCE menu opens.
2 Press or to select HDMI 1, HDMI 2, or
HDMI3, then press ENTER.
3 Turn on the HDMI device, and set it to the
correct output mode. See the HDMI device’s
user guide for more information.
L
R
VIDEO
S-
VIDEO
HEADPHONE
HDMI1
SER
V IC E
Camcorder or
gaming console
Side of TV
AV cable
Note: Cables are often
color-coded to connectors.
Connect yellow to yellow,
red to red, and white to
white.
L
R
VIDEO
S-
V ID
EO H
EA
D PH
O
N
E
HDMI1
S
E RV
IC
E
Side of TV
HDMI cable
Device with HDMI output
