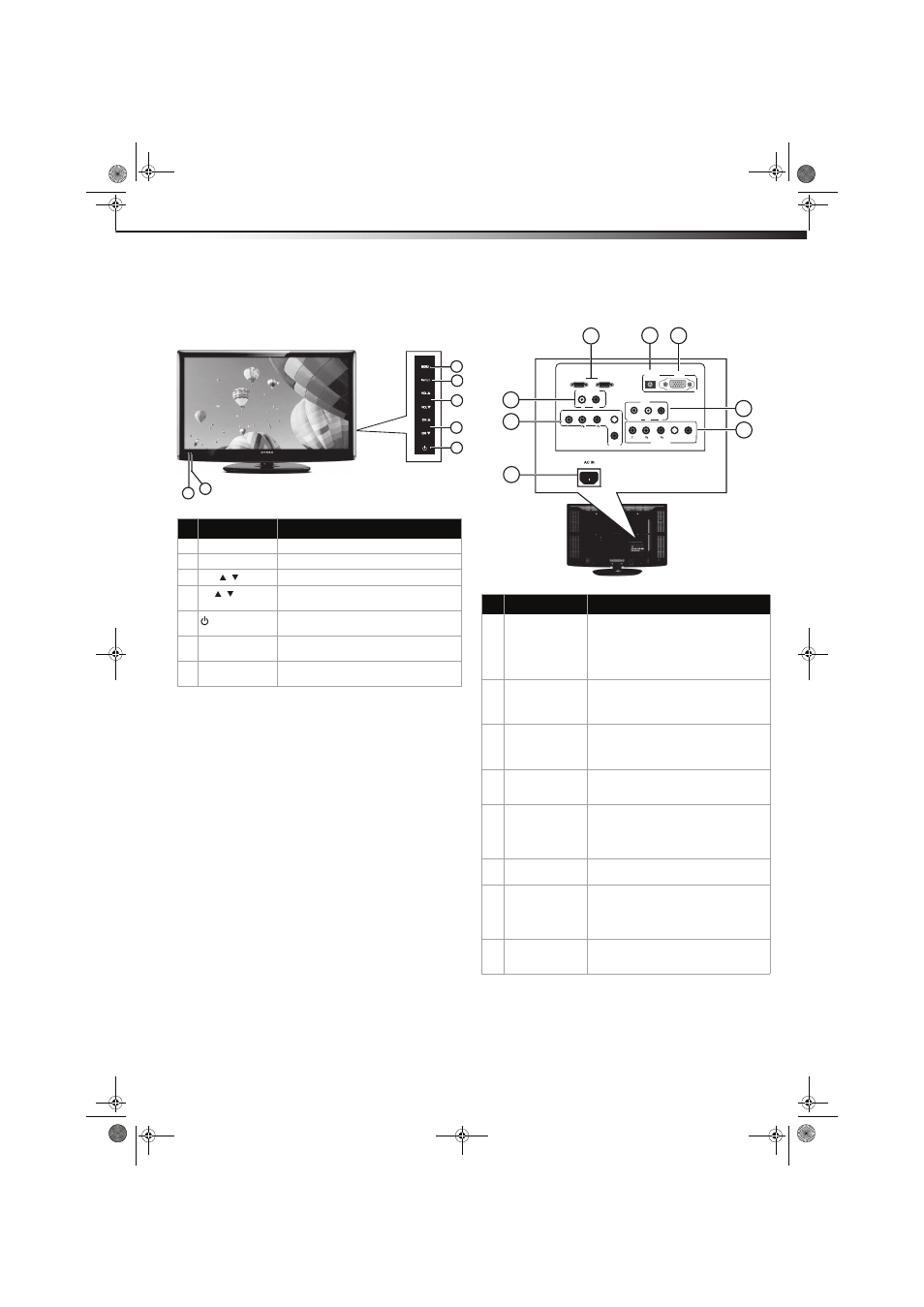

TV components

5

DX-L40-10A

TV components

Front and side controls

Back connections

#

Component

Description

1

MENU

Press to open the on-screen menu.

2

INPUT

Press to select the video input source.

3

VOL /

Press to increase or decrease the volume.

4

CH /

Press to go to the next or previous channel
in the channel list.

5

(power) button Press to turn on your TV. Press again to put

your TV in standby mode.

6

Power/Standby
indicator

Lights blue when your TV is turned on.
Lights red when your TV is in standby mode.

7

Remote sensor

Receives signals from the remote control.
Do not block.

6

7

1

2
3

4
5

#

Component

Description

1

HDMI3 and
HDMI2 jacks

Connect an HDMI device, such as a cable
box or DVD player, to one of these jacks. An
HDMI cable carries both video and audio,
so you do not need to make an audio
connection. For more information, see
“Connecting an HDMI device” on page 10.

2

VGA AUDIO IN
jack

Connect the mini plug from your
computer’s sound card output to this jack.
For more information, see “Connecting a
computer” on page 12.

3

PC VGA jack

Connect a 15-pin VGA cable from a
computer to this jack. For more
information, see “Connecting a computer”
on page 12.

4

AV2 (Video and
audio jacks)

Connect the composite video and audio L
and R from a VCR, game console, or
camcorder to these jacks.

5

COMP2 (Y, Pb, Pr
and audio L and R)
jacks

Connect a component video device to
these jacks. Cables are often color-coded to
connectors. For more information, see
“Connecting a component video device” on
page 11.

6

AC IN

Connect the AC power cord to this
connector.

7

COMP1 (Y, Pb, Pr
and audio L and R)
jacks

Connect a component video device to
these jacks. Cables are often color-coded to
connectors. For more information, see
“Connecting a component video device” on
page 11.

8

AUDIO OUT jacks
(L and R)

Connect audio cables (L and R) from these
jacks to an external audio amplifier or
receiver.

1

2

3

4
5

HDMI3 HDMI2

COMP2

VIDEO

L R

AV2

R

COMP1

AUDIO IN

VGA VGA

L R

AUDIO OUT

Y

P

B

P

R

L

R

6

7

8

L

L R
