Installing VisionSwitch32-H with the Vantage4-PRO Card
The Datapath VisionSwitch32-H is connected to the Vantage4-PRO cards via inter- card ribbon
cables,
(VRSC-Set) enabling the video overlays to select 1 of 32 possible video sources. The
VisionSwitch32-H supports up to eight Vantage4-PRO cards.
Install and configure all Vantage4-PRO cards in the system, carefully following the installation
instructions. Ensure that your multi- screen system is working correctly before installing the
VisionSwitch32-H.
Install the VisionSwitch32-H carefully following the
Once the VisionSwitch32-H is installed it can be connected to the Vantage4-PRO cards.
You will need to determine the ordering of the Vantage4-PRO cards to enable the correct

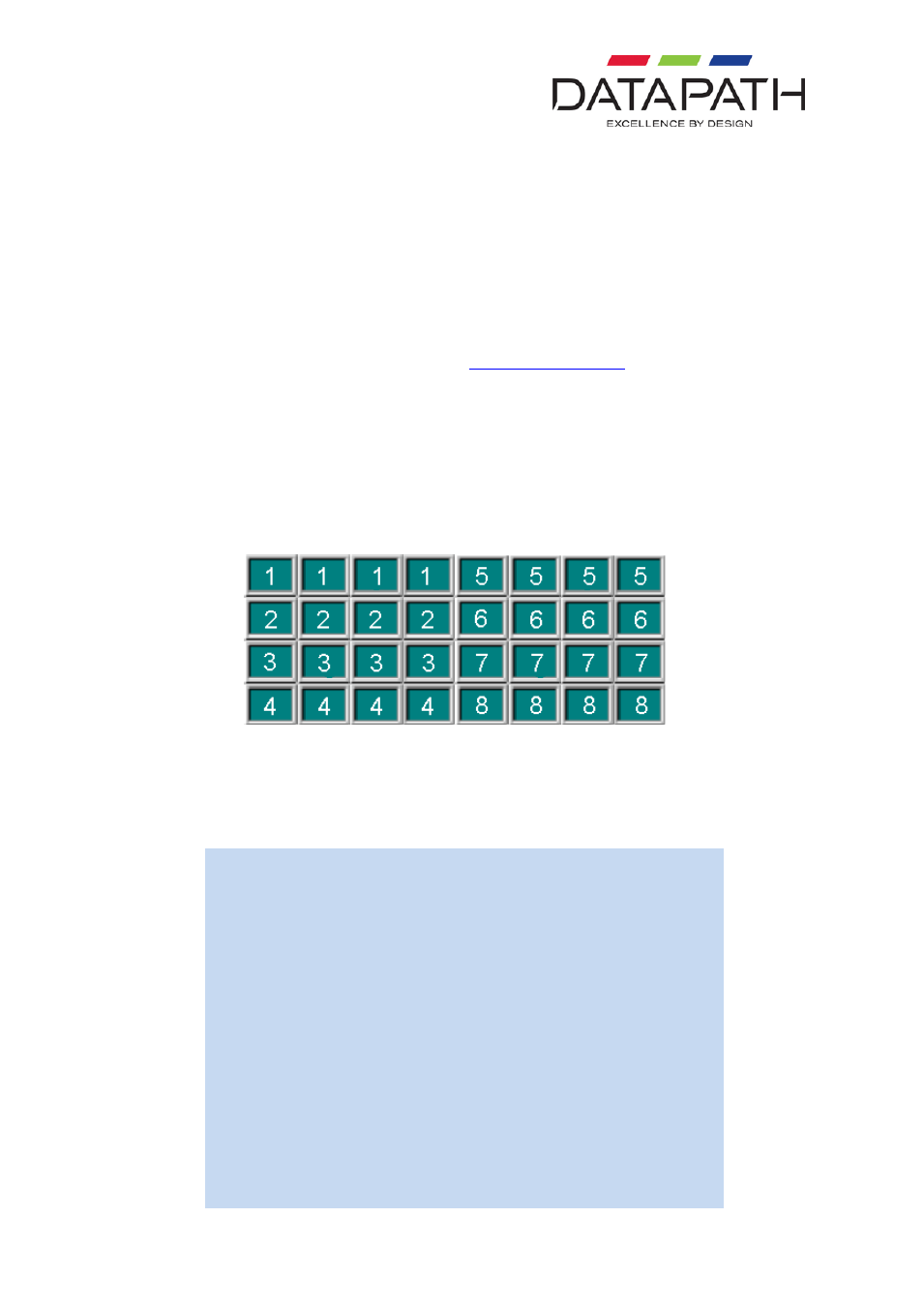

connection. The example below displays eight Vantage4-PRO cards configured as a 4 x 8 monitor
video wall. The ordering in this example is the Vantage4-PRO 1(the Master Vantage4-PRO card)
always drives the first 4 screens, in this case the top four. The second Vantage4-PRO card drives
the next four, and so on. Count the screens starting from the top left of the video wall and then
across from left to right:
Once the order of the Vantage4-PRO cards has be determined, connect the ribbon cables as
follows:
1
st
Vantage4-PRO
(Master) - J3
Connect to
VisionSwitch32-H – J10
2
nd
Vantage4-PRO
(Slave) – J3
Connect to
VisionSwitch32-H – J11
3
rd
Vantage4-PRO
(Slave) – J3
Connect to
VisionSwitch32-H – J12
4
th
Vantage4-PRO
(Slave) – J3
Connect to
VisionSwitch32-H – J13
5
th
Vantage4-PRO
(Slave) – J3
Connect to
VisionSwitch32-H – J16
6
th
Vantage4-PRO
(Slave) – J3
Connect to
VisionSwitch32-H – J17
7
th
Vantage4-PRO
Connect to
VisionSwitch32-H – J18
