Selecting the visionswitch32-h – Datapath VisionSwitch-32 User Manual

Page 11

Text mode
Original mode

Note:

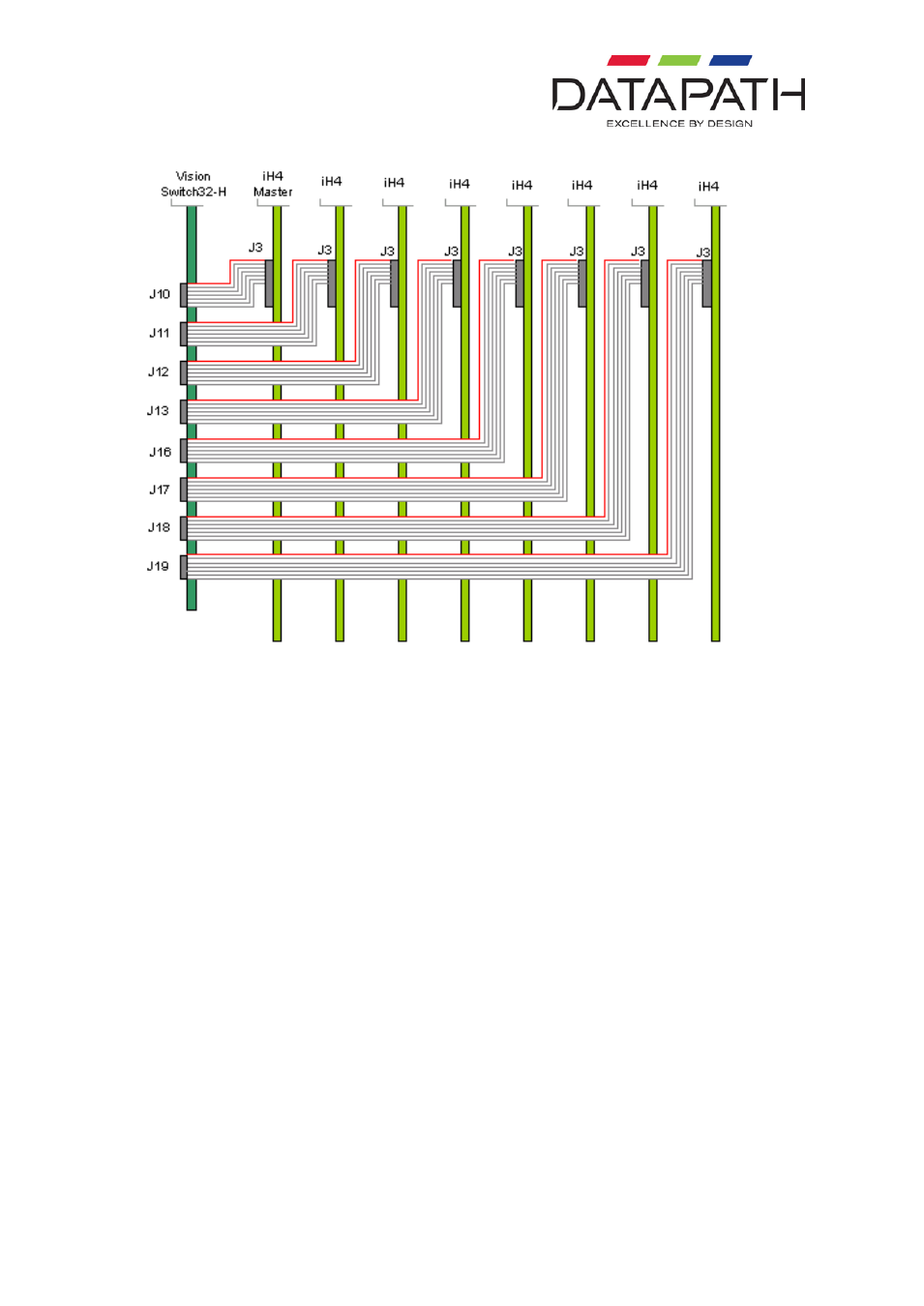

Care should be taken not to twist the ribbon cables.

Selecting the VisionSwitch32-H

If you are installing the Datapath VisionSwitch32-H to operate in conjunction with Datapath
Vantage4-PRO:

• Install and configure the Datapath Vantage4-PRO card(s) as required.

• The VisionSwitch32-H drivers are installed automatically with the Vantage4-PRO.

Open the Video Overlay sheet in the Display Properties dialog by clicking the right mouse button
anywhere on the desktop, select properties from the displayed menu and select the Settings tab.
Click on the Advanced button then select the Video Overlay tab.

Alternatively, go to Start/Settings/Control Panel/Display and select the select the Settings tab.
Click on the Advanced button then select the Video Overlay tab. The following dialog is displayed:
