MS-C71 User’s Manual
- 37 -

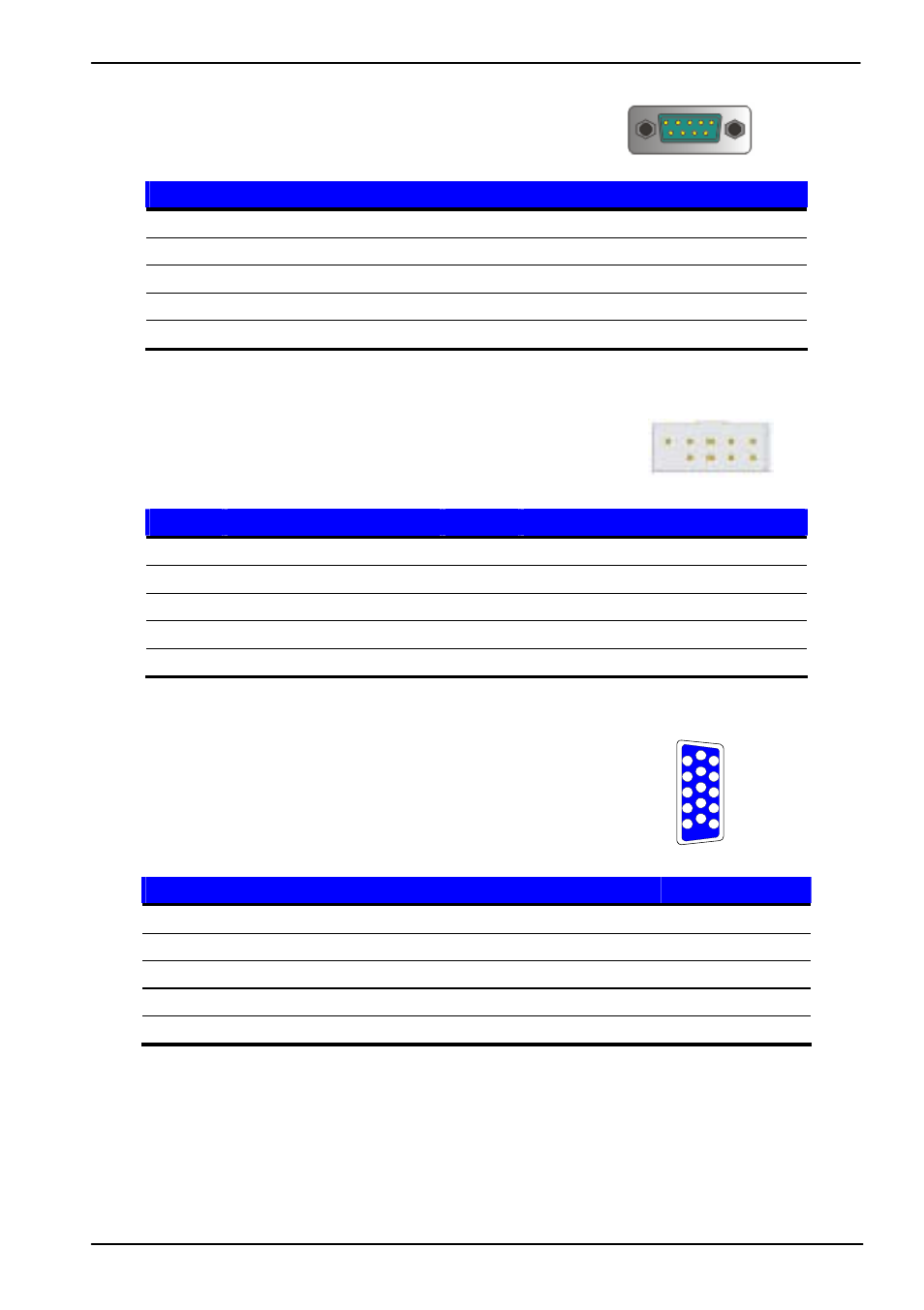

Connector: COM3
Type: D-sub male connector on bracket
Pin Description Pin Description
1 DCD- 6 DSR
2 SIN- 7 RTS
3 SO- 8 CTS
4 DTR- 9 RI
5 Ground
Connector: COM4/5/6
Type: 9-pin header connector for COM4/5/6
Pin Description Pin Description
1 DCD 6 DSR
2 SIN 7 RTS
3 SO 8 CTS
4 DTR 9 RI
5 Ground
A.5
Connector: CRT
Type: 15-pin D-sub female connector on bracket
Pin Description Pin Description Pin Description
1 RED 6 Ground 11 N/C
2 GREEN 7 Ground 12 DDCDA
3 BLUE 8 Ground 13 HSYNC
4 N/C 9 N/C 14 VSYNC
5 Ground 10 Ground 15 DDCCLK
6
10
1
2
3
4
5 11
12
13
14
15
9 6
5 1
10 2
9 1
