2.4
2.4.1
The board comes with the socket rPGA988A for Intel
Arrandale and Clarkfield
Processor, Intel® Smart 8MB Cache. Please follow the instruction to install the CPU
properly.

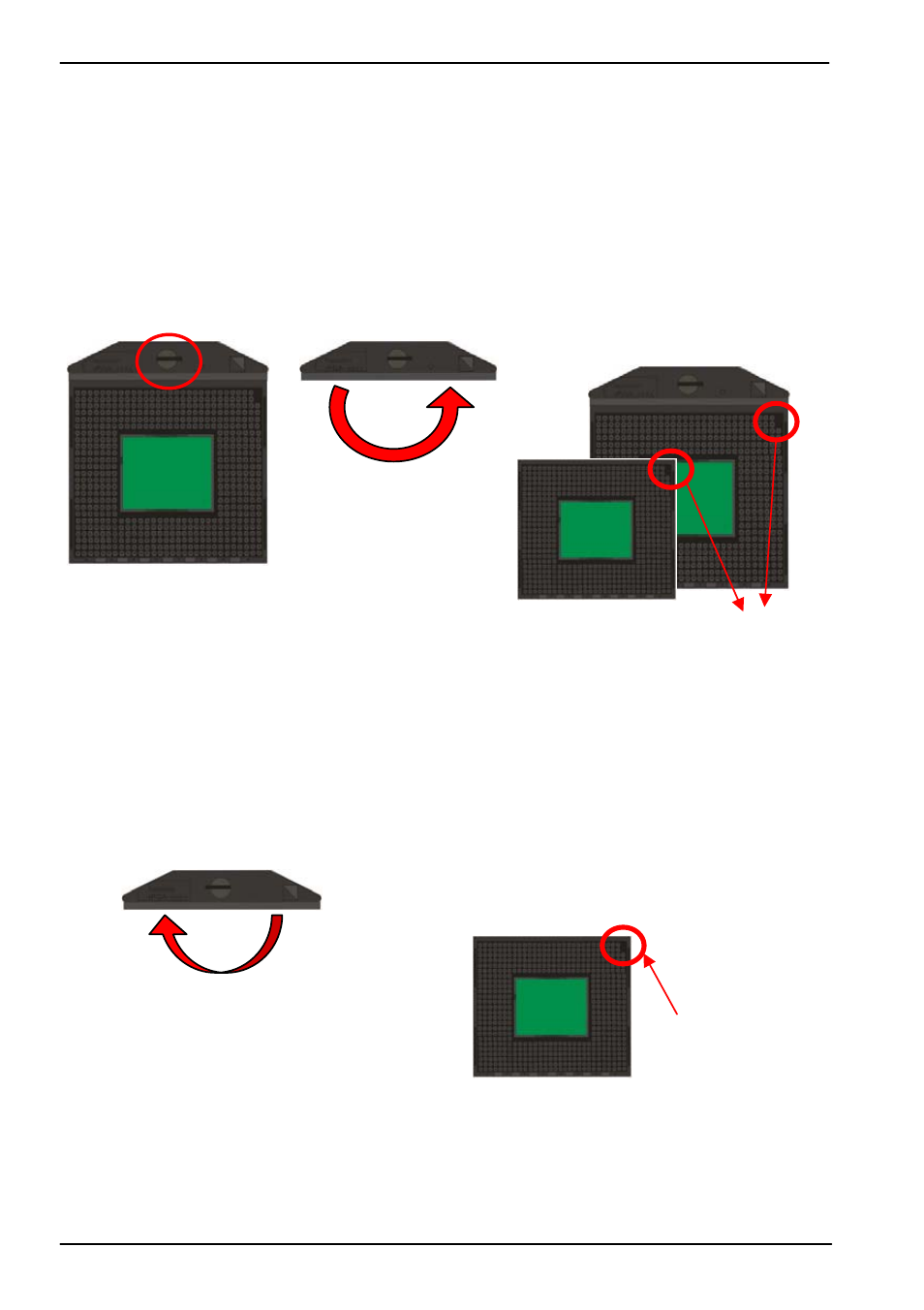

1. Use the flat-type screw
drive to unlock the CPU
socket
Unlock way
Check point
2. Follow the pin direction to install
the processor on the socket
3. Lock the socket
4. CPU socket has 988 pins
PGA 988 CPU Check point
