MS-C71 User’s Manual
- 12 -

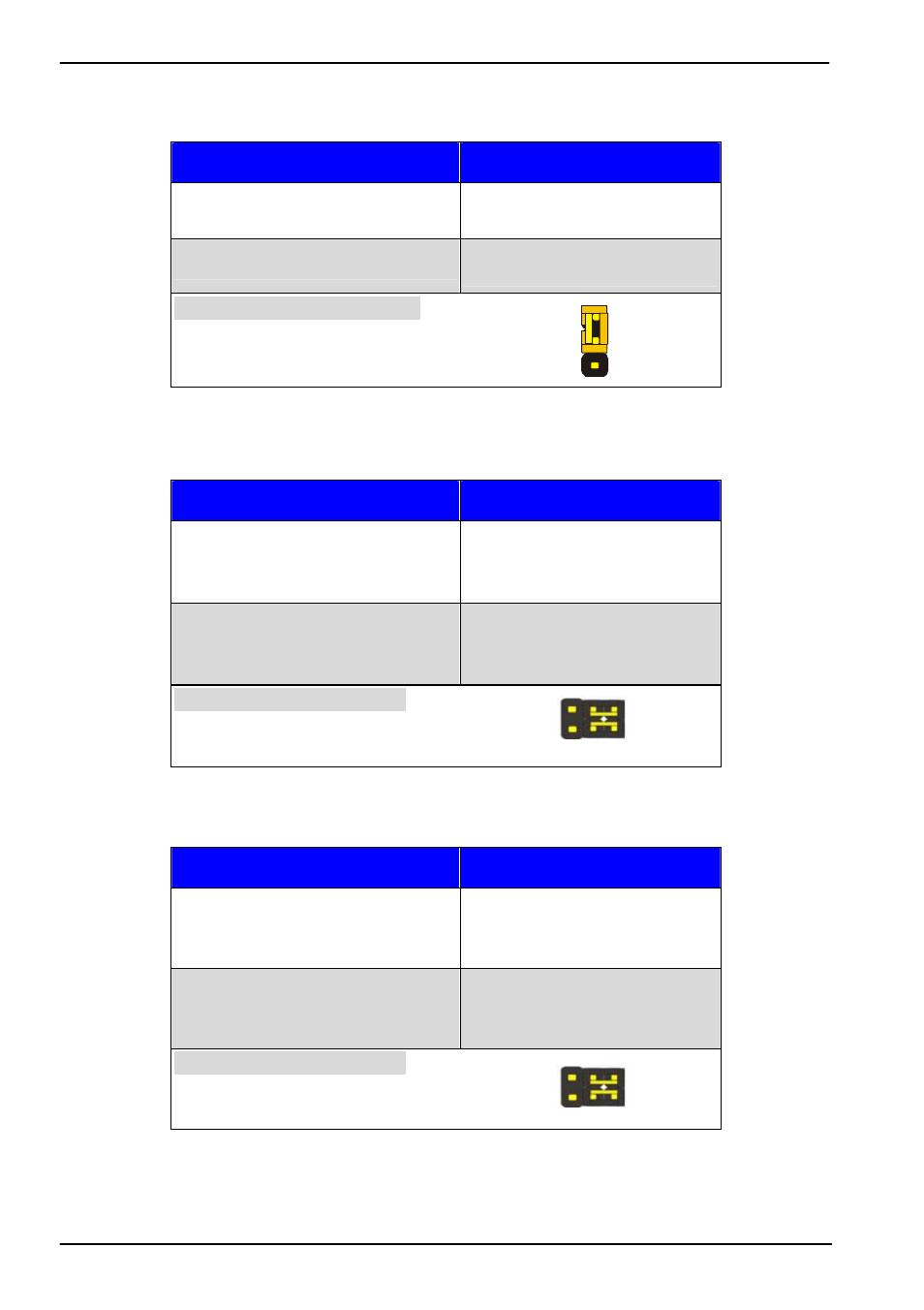

Jumper: JAT
Type: onboard 3-pin header
Power Mode JAT
AT Mode 1-2
ATX Mode 2-3
Default setting: ATX Mode
Jumper: JP1 (COM 1)
Type: onboard 6-pin header
Power Mode JP1
Pin1 with 5V signal 1-3,4-6
Pin9 with 12V signal
2-4,3-5
Default setting: 3-5, 4-6
Jumper: JP2 (COM 2)
Type: onboard 6-pin header
Power Mode JP2
Pin1 with 5V signal 1-3,4-6
Pin9 with 12V signal
2-4,3-5
Default setting: 3-5, 4-6
6
5
2
1
1
3
6
5
2
1
