Atlona AT HDVS RX User Manual

Page 8

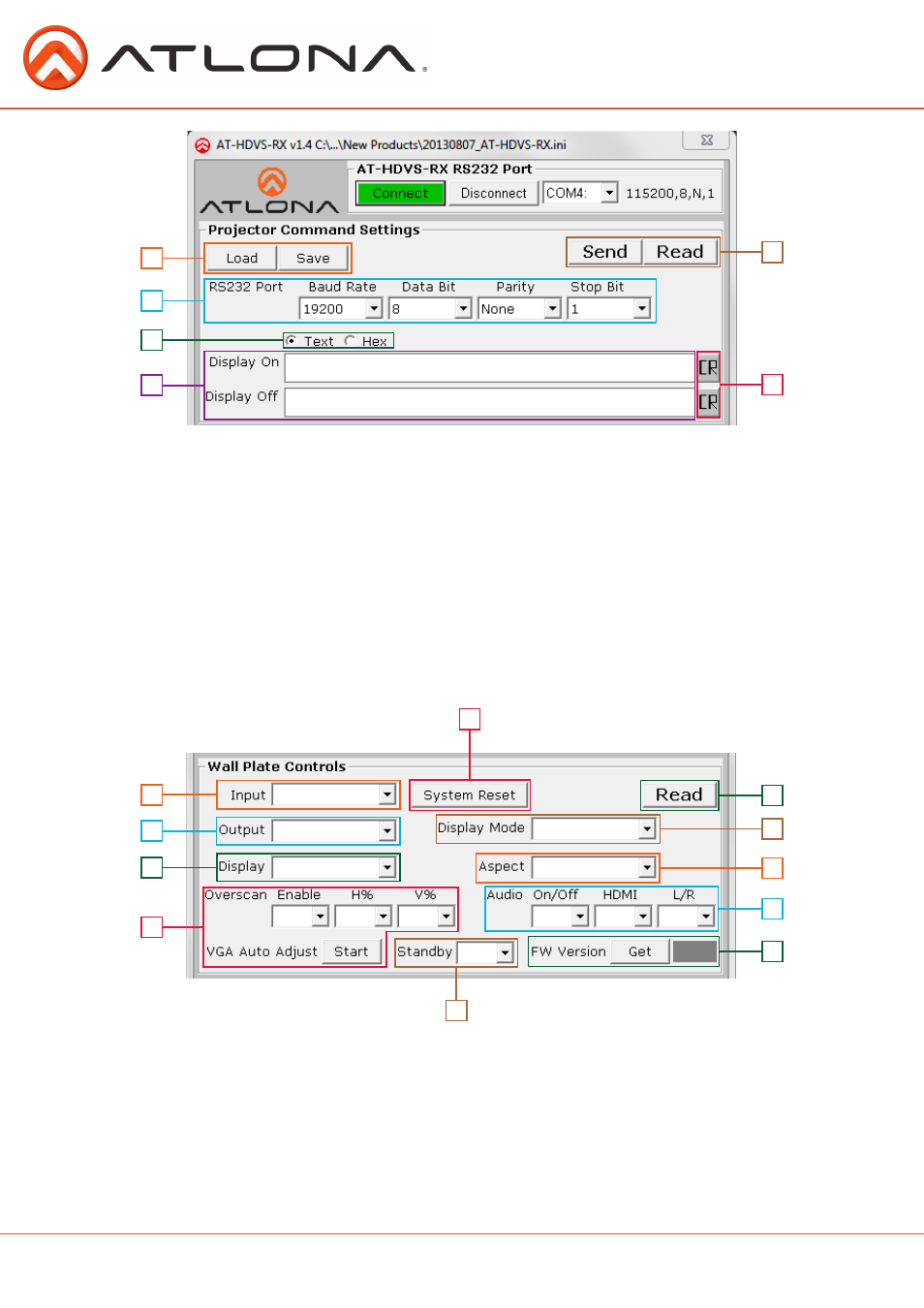

1. Save: Allows a display’s settings to be saved for easy set up in the future
Load: A previously saved display’s settings
2. RS-232 port - Set to display’s baud settings

(See display’s manual for the recommended device settings)

3. Select between text and hex commands input for display on and off
4. Type commands for display on and display off in these fields
5. Send: Once the information is filled in, press send to transmit command to RX to set up control
Read: Verifies commands are correct
6.Use this button to add a carraige return at the end of the command

Note: To verify the carriage return has been added, press the hex button - the hex code 0D

will display to show a carriage return has been added.

1. Select source
2. Select output resolution
3. Turn the display On/Off
4. Adjust the picture on the display
5. Read - Pulls up the current settings
6. Sets display mode

DispSW AVon - Display switches on/off, source audio/video signal always on

DispSW AVSW - Display switches on/off, source audio/video signal switches on/off

AV SW - Display is always on, source audio/video signal switches on/off

Always On - Default, no function
