Mechanical drawing – Delta Electronics S48SE User Manual
Page 12
DS_S48SE05003_12292006
12

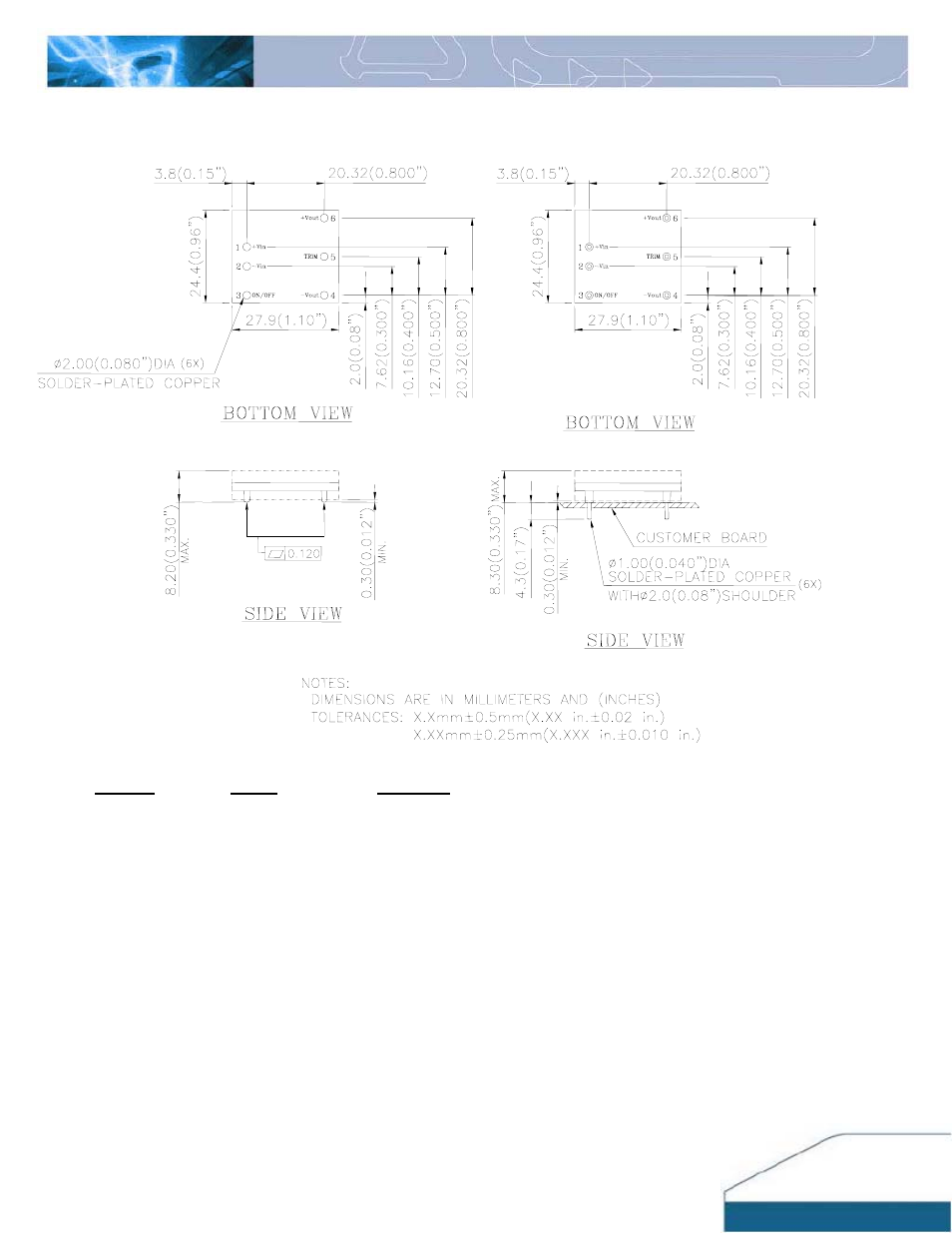

MECHANICAL DRAWING
Surface-mount module
Through-hole module
Pin No.
Name
Function
1
2
3
4
5
6
+Vin
-Vin
ON/OFF (Optional)
-Vout
TRIM (Optional)
+Vout
Positive input voltage
Negative input voltage
Remote ON/OFF (Optional)
Negative output voltage
Output voltage trim (Optional)
Positive output voltage
