Page 10
EN-10

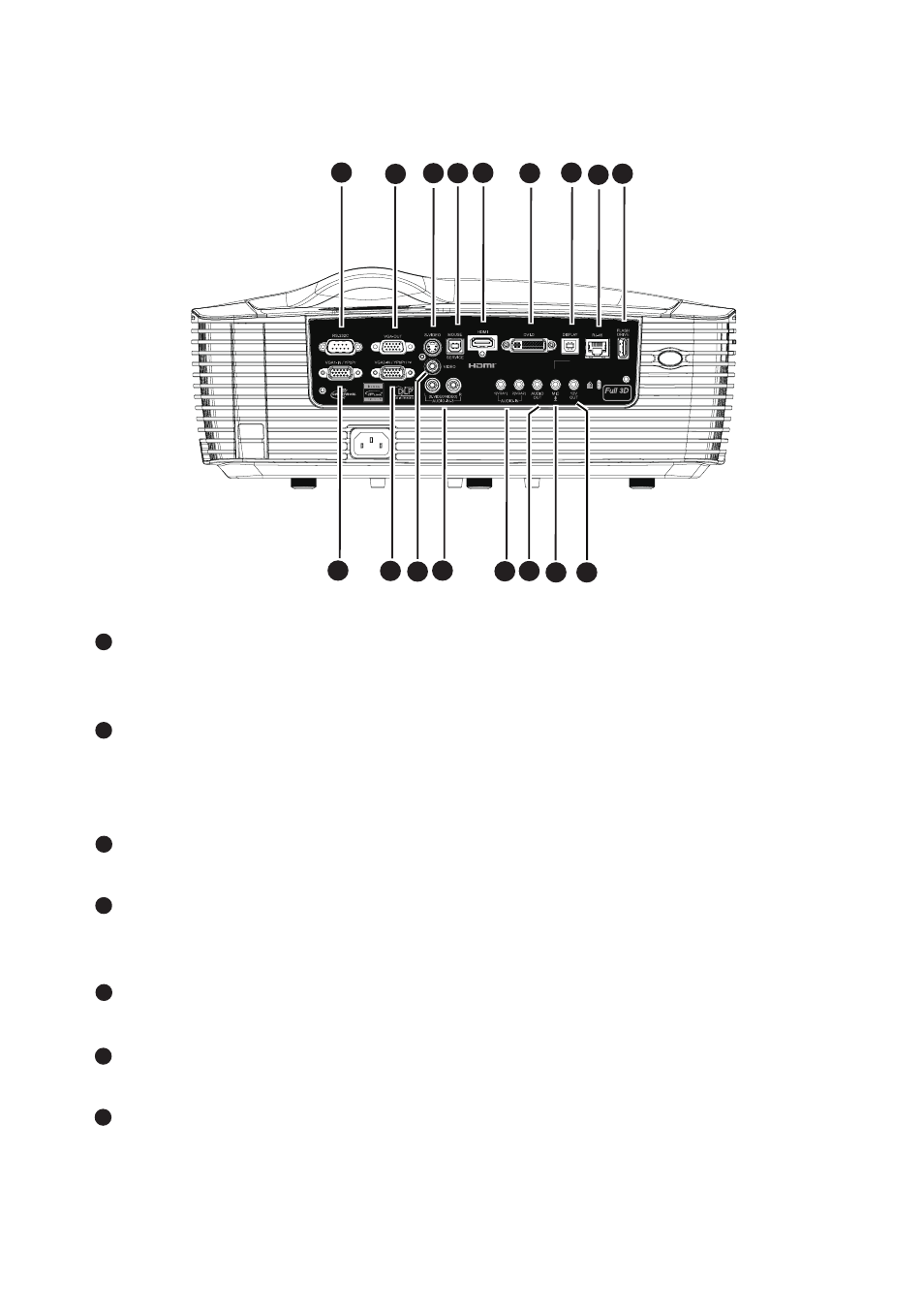

Connection Ports
RS-232C
When operating the projector via a computer, connect this to the
controlling computer's RS-232C port.
VGA-OUT
Connect to an external monitor.
In Eco mode (Standby), VGA-OUT is disabled.
In Active mode (Standby), VGA-OUT is enabled.
S-VIDEO
Connect S-Video output from video equipment to this jack.
MOUSE/SERVICE
This connector supports firmware update, remote mouse and page up/
down.
HDMI
Connect HDMI output from video equipment to this jack.
DVI-D
Connect DVI-D output from computer to this jack.
DISPLAY
USB display supports computer connection via USB B type to A type
cable.
1
2
3
5
4
6
7 8 9
11 10
12
13
14
15
16
17
1
2
3
4
5
6
7
