CONTROLS
DIXON -17
This operator’s manual describes the Dixon Zero
Turn Rider. The rider is fitted with either a Briggs &
Stratton or Kohler four-stroke overhead valve engine
developing 16 - 22 horse power.
Transmission from the engine is made via two belt-
driven hydraulic pumps, which in turn drive a hydraulic
motor for each drive wheel. Using the left and right
steering controls, the flow is regulated and thereby the
direction and speed.

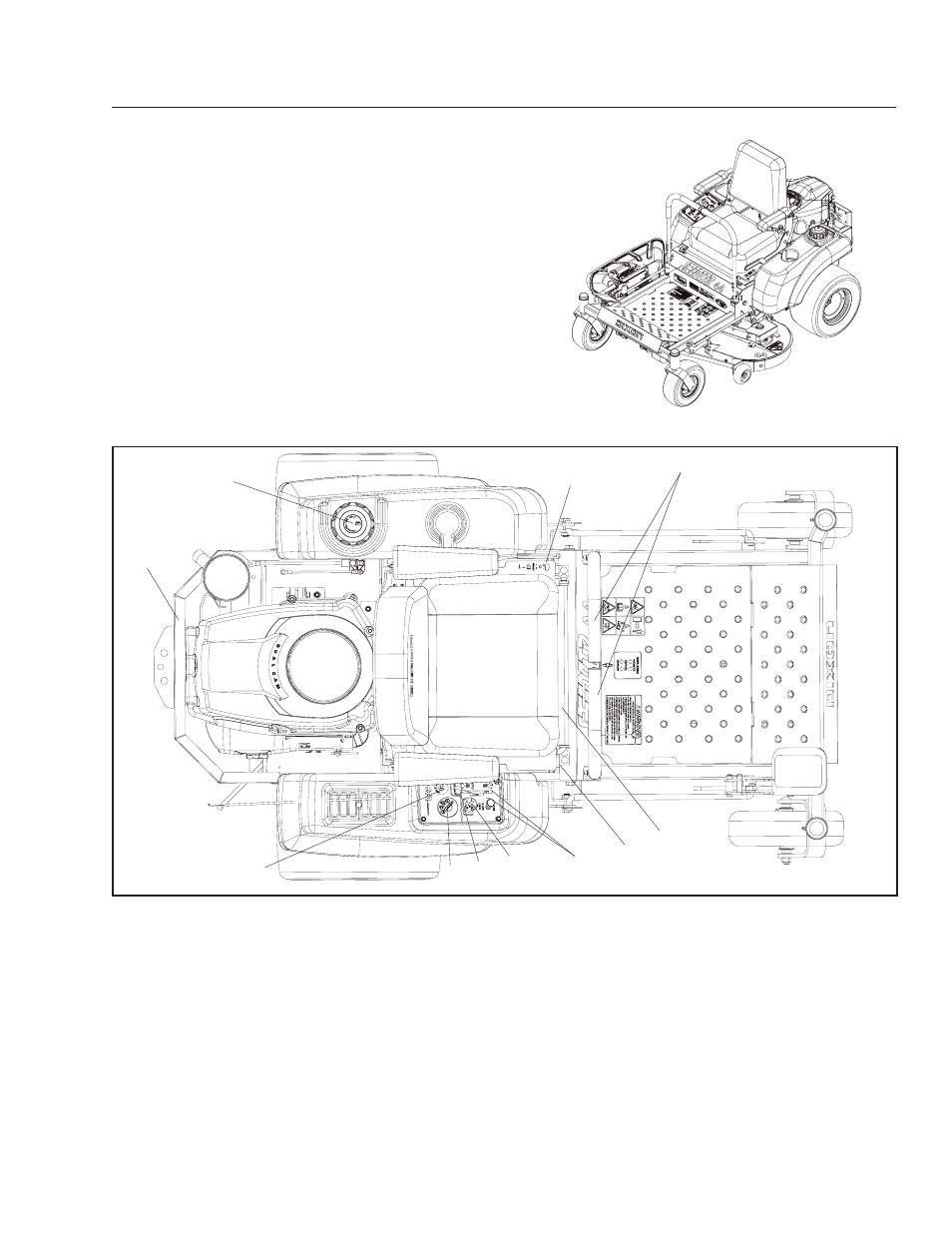

1. Motion Control Levers
2. Seat Adjustment Lever
3. Bypass Linkage
4. Fuel Tank
5. Ignition Switch
6. Choke Control 7. Throttle
8. Blade Switch
9. Circuit Breaker
10. Parking Brake
11. Lift Lever
1
2
3
4
5
6
7
8
9
10
11
