465
4-3. Do-it-yourself maintenance
4
Mainten
ance an
d ca
re

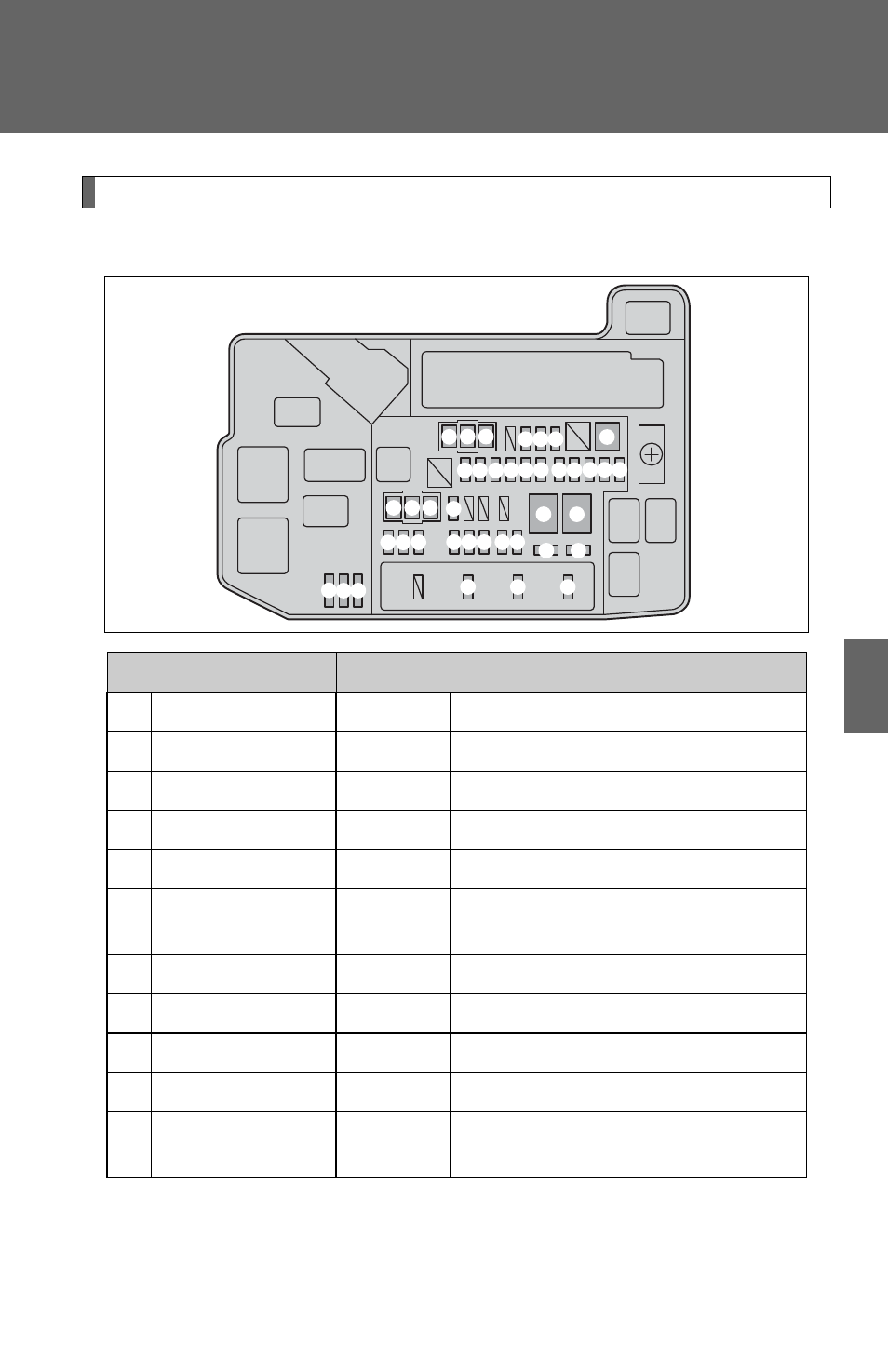

Fuse layout and amperage ratings
■
Engine compartment
FUSE Ampere Circuit
1 HTR 50A Air conditioning system
2 RDI 30A Electric cooling fans
3 CDS 30A Electric cooling fans
4 S-HORN 10A No circuit
5 ENG W/P 30A Cooling system
6
ABS MAIN
NO.2
7.5A Anti-lock brake system
7 H-LP CLN 30A Headlight cleaner
8 AMP 30A Audio system
9 IGCT 30A PCU, IGCT NO.2, IGCT NO.3
10 DC/DC-S 5A Inverter and converter
11 P CON MAIN 7.5A
Parking control system, transmis-
sion
ITO43P132
1 2 3 4 5 6 7
8 9 10 11 12 13 14 15 16 17 18
19 20 21 22
23 24
25 26 27 2829 30 3132
33 34
35 36 37
38 39 40
