6
FORM NO. L-21091-D-0110
BRAKE GUARD INSTALLATION
NOTE: Refer to Figure 2.
1. Align the mounting holes of the Brake Guard with the
four tapped holes in the Mounting Flange.
2. Using the four 10-24 Phillips Head Pan Screws,
secure the Brake Guard to the Mounting Flange.
Tighten to 35 in-lbs [4 Nm].
3. If the Brake Guard is not through shaft mounting,
place the End Cap over the front of the Brake Guard
and bend the tabs around the Brake Guard to hold
the End Cap in place.

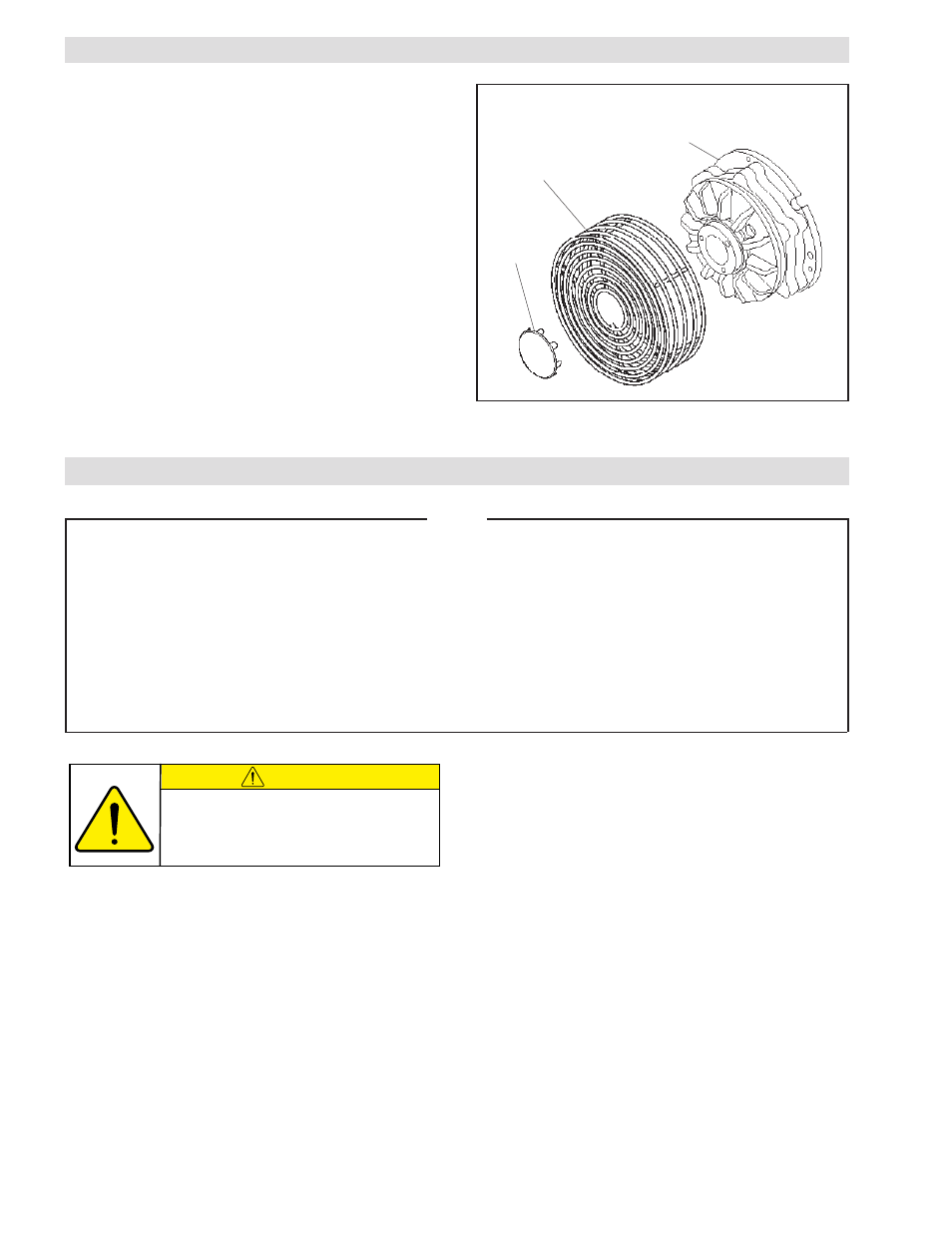

FIGURE 2
Brake Guard
End Cap
Mounting Flange
NOTE
Nexen pneumatically actuated devices require clean, pressure regulated air for maximum performance and
life. All seals in Nexen Pneumatically operated devices are lubricated for life and do not require additional
lubrication.
However, some customers prefer to use an air line lubricator, which injects oil into the pressurized air,
forcing an oil mist into the air chamber. This is acceptable, but care must be taken to ensure once an air mist
lubrication system is used, it is continually used over the life of the product as the oil mist may wash free the
factory installed lubrication.
Locate the lubricator above and within ten feet of the product, and use low viscosity oil such as SAE-10.
Synthetic lubricants are not recommended.
Nexen product's bearings are shielded and pre-lubricated, and require no further lubrication.
LUBRICATOR DRIP RATE SETTINGS
1. Close and disconnect the air line from the unit.
2. Turn the Lubricator Adjustment Knob counterclockwise three
complete turns.
3. Open the air line.
4. Close the air line to the unit when a drop of oil forms in the
Lubricator Sight Gage.
5. Connect the air line to the unit.
6. Turn the Lubricator Adjustment Knob clockwise until
closed.
7. Turn the Lubricator Adjustment Knob counterclockwise one-
third turn.
8. Open the air line to the unit.
LUBRICATION
CAUTION
These settings are for Nexen supplied
lubricators. If you are not using a Nexen
lubricator, calibration must follow the
manufacturer's suggested procedure.
