Delta Electronics E36SR User Manual
Page 2
2
SPECIFICATIONS
GENERAL SPECIFICATIONS
OUTPUT SPECIFICATIONS
Input Voltage
18~75V
Voltage Accuracy
Typical ±1%
Switching Frequency
Typical 300KHz Line Regulation
Typical ±0.1%
Isolation Voltage
In/Out 2250V Load Regulation
Typical ±0.1%
Isolation Capacitance
Typical 1500PF Ripple & Noise
Typical (48Vin)
60 mV
Isolation Resistance
Minimum
10MΩ
Current Limits
Typical 130%
MTBF
Bellcore
TBD
Over Voltage
Typical
120%
OTP
Typical 105°C
Voltage Trim
+10%,
-10%
Size
(2.30”x0.90”x0.36”) 58.4x22.8x9.2mm
PART NUMBERING SYSTEM
E 36 S R
050
15 N R
F
A
Type of
Product
Input
Voltage
Number of
Outputs
Product
Series
Output
Voltage
Output
Current
ON/OFF
Logic
Pin
Length
Option
Code
E - Eighth Brick
36-18~75V
S - Single
R- Regular
3R3 - 3.3V
050 - 5.0V
15 - 15A
20 - 20A
N - Negative
R - 0.170”
F- RoHS 6/6
(Lead Free)
A - Standard
Functions
MODEL LIST
MODEL NAME
INPUT
OUTPUT
EFF @ 48Vin, 100% LOAD
E36SR3R320NRFA 18V~75V 4.5A 3.3V 20A
88%
E36SR05015NRFA 18V~75V 5A 5.0V 15A
89%

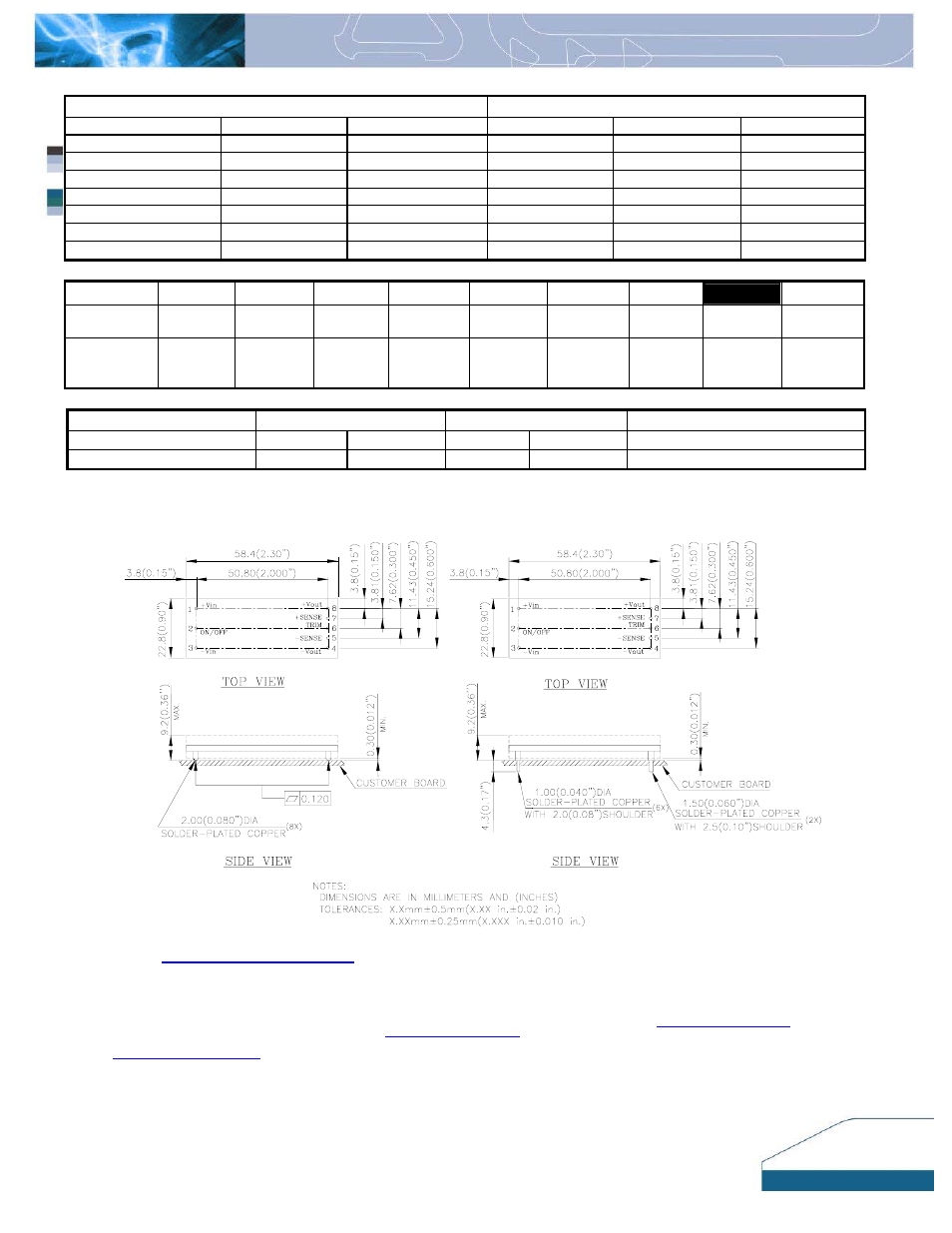

MECHANICAL DRAWINGS
Surface-mount module
Through-hole module
CONTACT:
USA:
Telephone:
East Coast: (888) 335 8201
West Coast: (888) 335 8208
Fax: (978) 656 3964
Email:
Europe:
Phone: +41 31 998 53 11
Fax: +41 31 998 53 53
Email:
Asia & the rest of world:
Telephone: +886 3 4526107 ext 6220
Fax: +886 3 4513485
Email:
WARRANTY
Delta offers a two (2) year limited warranty. Complete warranty information is listed on our web site or is available upon request from Delta.
Information furnished by Delta is believed to be accurate and reliable. However, no responsibility is assumed by Delta for its use, nor for any
infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any
patent or patent rights of Delta. Delta reserves the right to revise these specifications at any time, without notice.
