Carburetor enclosure installation, cont’d – Vortech Universal Carburetor Enclosure User Manual

Page 7

P/N: 007051

11SEP00 V 1.0

(Carb-Enclosure 007051)

NOTE: All -3 and -8 fittings should

have an O-ring installed be-
fore using.

Remove the barbed fittings, coat the barbs

with grease, and fully insert the barbed
fittings in the hose.

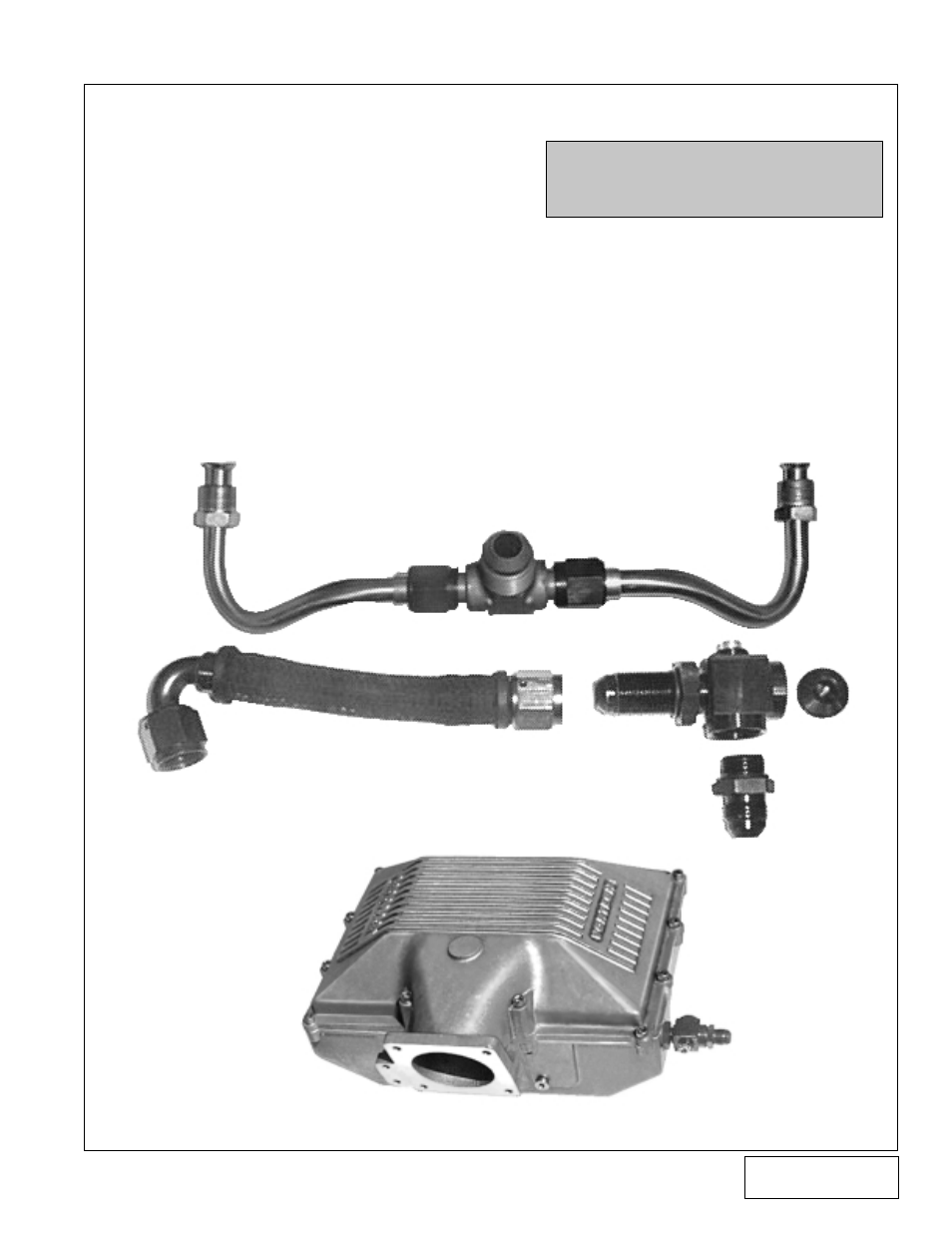

Install the fuel hose assembly and tighten

all of the fuel line connections.

W. Hose connections to the carburetor enclosure will

vary widely depending on the application. All
hoses that are not used should be plugged with
the supplied -3, -8, 1/8 NPT and 1/4 NPT plugs.

Using the supplied 5/16” cap screws, install the

top cover on the enclosure and tighten the screws.
The cover opening must be pointed away from
the throttle linkage for the idle bracket to be
utilized. If the cover opening must point to the
side where the throttle linkage is located, remove
the idle bracket and brass spacer. Install a 5/16”
washer and re-install the outer throttle arm.

Carburetor Enclosure Installation, cont’d.

Fig. 11

Fig. 10
