Vortech Universal Carburetor Enclosure User Manual

Page 5

P/N: 007051

11SEP00 V 1.0

(Carb-Enclosure 007051)

A. Relieve the fuel pressure in the system.
B. Remove the carburetor from the intake manifold.
C. Thoroughly clean the intake manifold carburetor

flange.

D. Thread the four supplied carburetor flange studs

into the intake manifold.

Install a new carburetor gasket.

Install the lower part of the carburetor enclosure

over the studs until it sits flat on the intake
manifold.

G. Install a new carburetor gasket over the studs

until it sits flat on the carburetor enclosure carbu-
retor mounting surface.

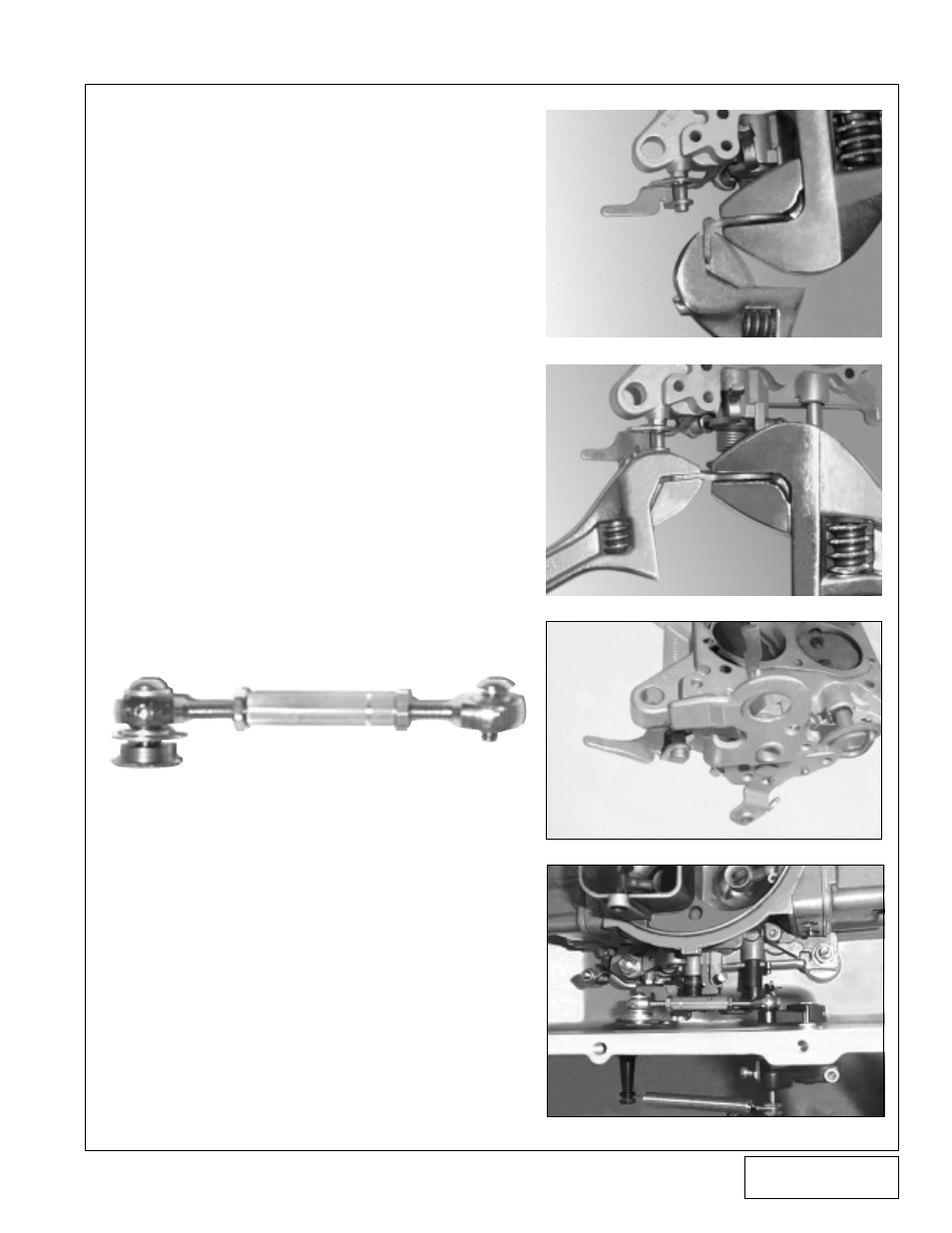

H. With the carburetor in a suitable work area, bend

the damper tab on the main throttle arm until it is
flat. (See

Figs. 2, 3, 4.)

Install the throttle nut through the large hole on

the outside of the throttle arm. Using a 10-24 cap
screw inserted through a rod end and the #10
fender washer, thread into the throttle nut and
tighten. (See

Figs. 5, 6.)

CARBURETOR ENCLOSURE INSTALLATION

Fig. 2

Fig. 3

Fig. 5

Fig. 4

Fig. 6
