Water tank mounting, Plumbing schematic) – Vortech 1996-1998 Ford 4.6L Mustang Cobra User Manual

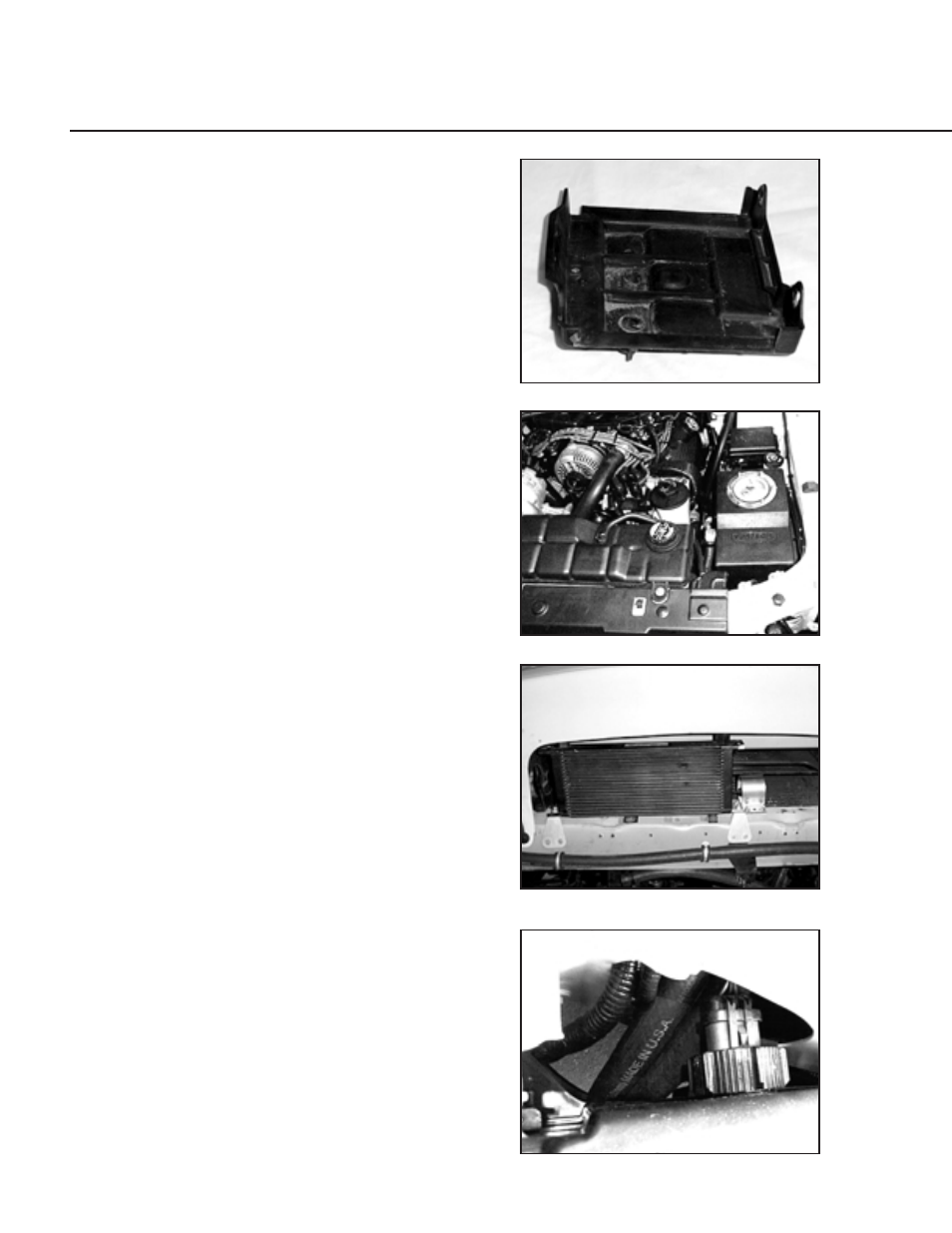

Page 10

A. Remove battery tray and notch to allow tank
to sit flush with bottom of tray and reinstall
(see photo - 3).
B. Place the water tank in the tray previously
occupied by the battery and secure using the
original battery hold down (see photo - 4).
C. Cut a piece of the 3/4” hose 50 in. length and
attach to the 3/4” 90
°
fitting (located at the
lower rear of the water tank). Route downward
and toward the front of the car. (See schematic
on the next page.)
D. Cut a piece of the 3/4” hose 98” in length and
attach it to the water return fitting on the tank.
Route the hose downward and secure with the
supplied adel clamps and #12 hardware to the
bottom of the radiator core support. Connect
the hose to the outlet fitting on the aftercooler
routing it up and through the passenger side
headlight well (see photo - 5 and 6).
5. Water Tank Mounting
(Plumbing Schematic)
© 1999 VORTECH ENGINEERING, INC.
All Rights Reserved, Intl. Copr. Secured
5
Photo - 6
Photo - 5
(water cooler not yet installed)
Photo - 4
Photo - 3
