220 V Revelation by DRAPER
Page 8 of 8
The VIC 12 KIT includes all the components necessary for the VIC 12 to work
with the Revelation. Follow these steps to install the components in this KIT.
➀ Close the door to the Revelation.
➁ DISCONNECT POWER TO THE REVELATION.
➂ Remove the covers from the electrical enclosure.
➃ Attach the pre-wired limit switch [1] to the shaft mounting bracket which
is closest to the motor as shown in FIGURE #1. Using the
#6–32 x 1" [2] long screws and #6 lock washers [2] provided.
➄ Run the wires through the open grommet in the end of the electrical
enclosure that is toward the motor as shown in FIGURE #1 and connect
them as fol lows:
Connect the black wire to screw #1 of TB2
Connect the blue wire to screw #2 of TB2. (Be sure that wires do not
interfere with moving linkage or the sliding inner pan)
➅ Put the 12V ACTIVATOR LEVER [3] onto the shaft as shown in Figure
#2. The 12V ACTUATOR LEVER will need to be spread out before it will
fi t onto the shaft. The door to the Revelation must be closed before going
on to step #7
➆ Position the 12V ACTUATOR LEVER by rotating it into the limit switch
until the limit switch clicks and secure the lever onto the shaft using the
#10-32 screw [4] and lock washer [5] supplied with the lever. (Be sure
that the screw on the lever is tightened so that the lever does not twist on
the shaft.)
➇ After the VIC 12 [7] is installed with the screen, run the wiring to the
Revelation using the cord strain relief [6] and connect to TB1 as shown
in the Rev e la tion wiring diagram.
➈ Put the covers back on to the electrical enclosure.
➉ Reconnect power to the revelation.
VIC12 Kit Installation Instructions

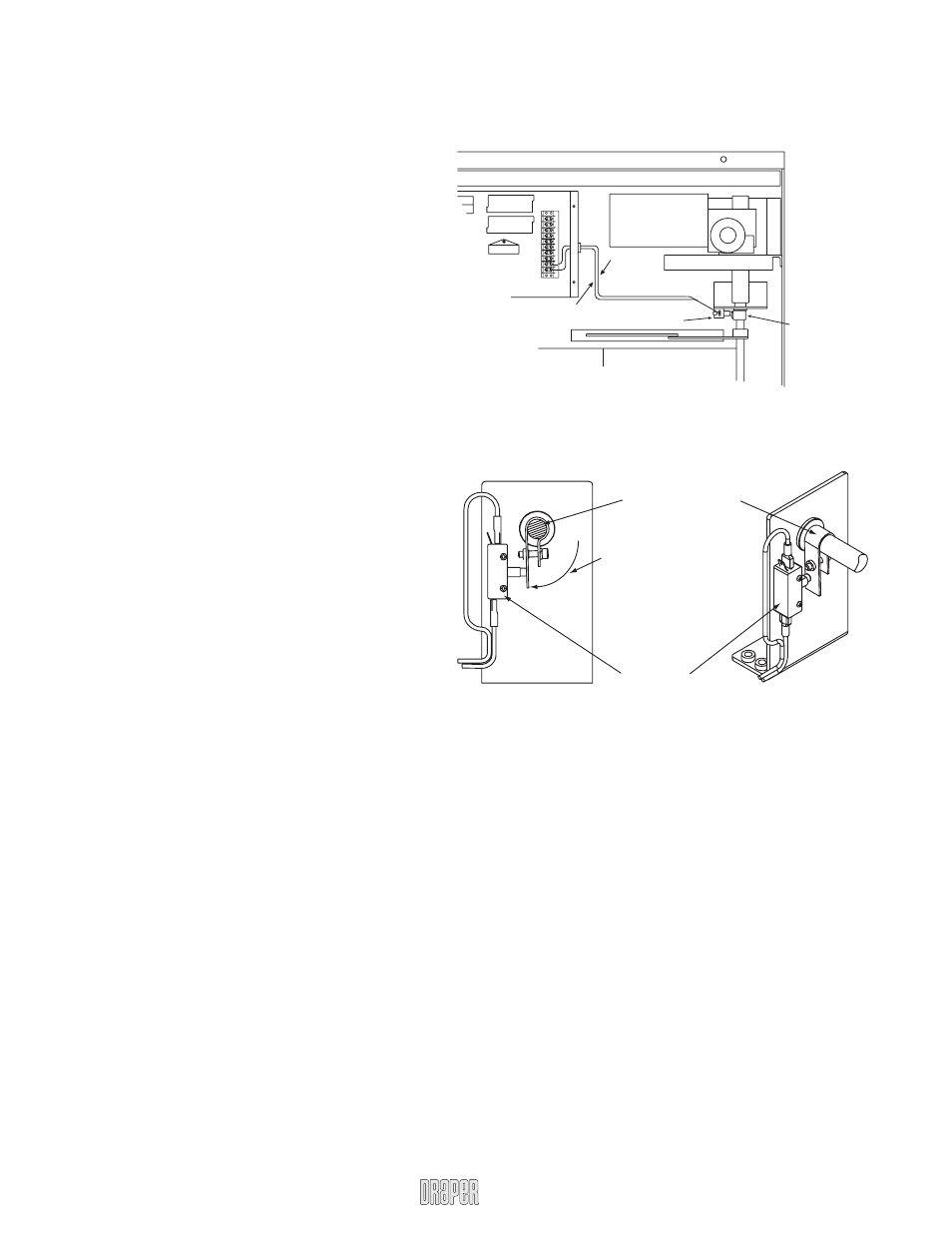

FIGURE #1
FIGURE #2
VIC 12 OR VIC 12 MODIFIED INSTALLATION PART LIST
ITEM #
DESCRIPTION
QTY
1
PRE-WIRED LIMIT SWITCH
1
2
SCREW #6–32 X 1"(25.4mm) LONG
2
PHIL PAN HD W/ EXT LOCK WASHER
3
12v ACTUATOR LEVER
1
4
SCREW #10–32 X 3/8" (9.525mm) LONG SHCS
1
5
WASHER #10–.190" I.D. X .375" (9.525mm) O.D.
1
ZINC
INTERNAL
TOOTH
6
FITTING CORD CRIMP STRAIN RELIEF
1
7
VIC 12 OR VIC 12 MODIFIED
1
TOOLS NEEDED
MED POINT PHILLIP SCREW DRIVER
I
/
8
" FLAT BLADE SCREW DRIVER
3
/
16
" ALLEN WRENCH
Pre-wired limit switch
Motor
12V Actuator lever
CR 1
CR 2
C 1
TB 2
Blue
Black
1234567
8
91
0
Rotate lever
until the limit
switch clicks.
Tighten lever
onto shaft.
12V actuator lever
Pre-wired
limit switch
