9. SUPERCHARGER AIR INLET, CONT'D.

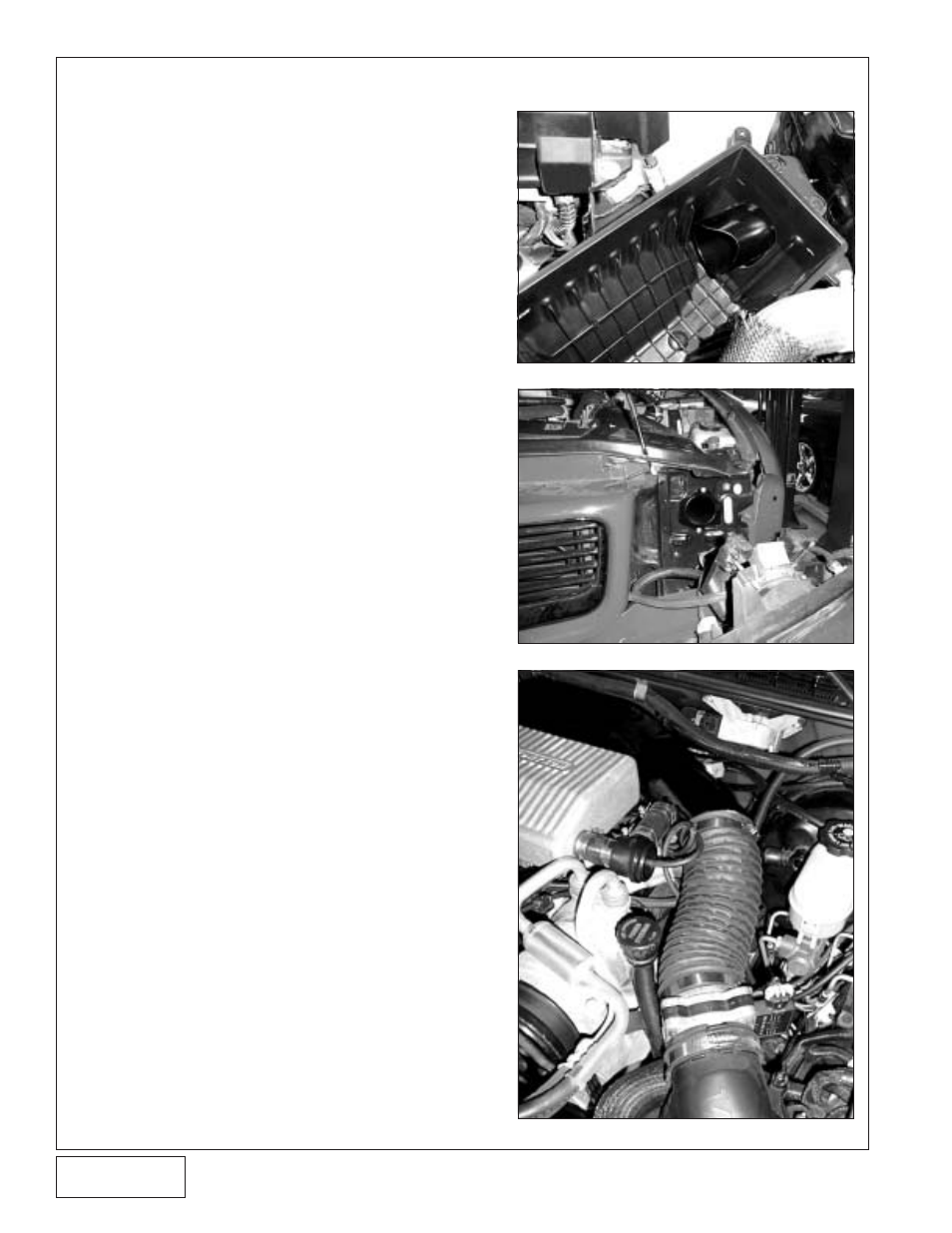

I. Slide the supplied 3” orange sleeve onto the outlet of
the MAF meter. Connect the previously installed steel
supercharger inlet duct to the MAF meter oultet using
the supplied section of flex hose and #52 clamps (see
Fig. 9-f).
J. Check to see that there is adequate clearance between
the factory mounted underhood light and the
supercharger kit by slowly closing the hood. Remove
light if necessary.
