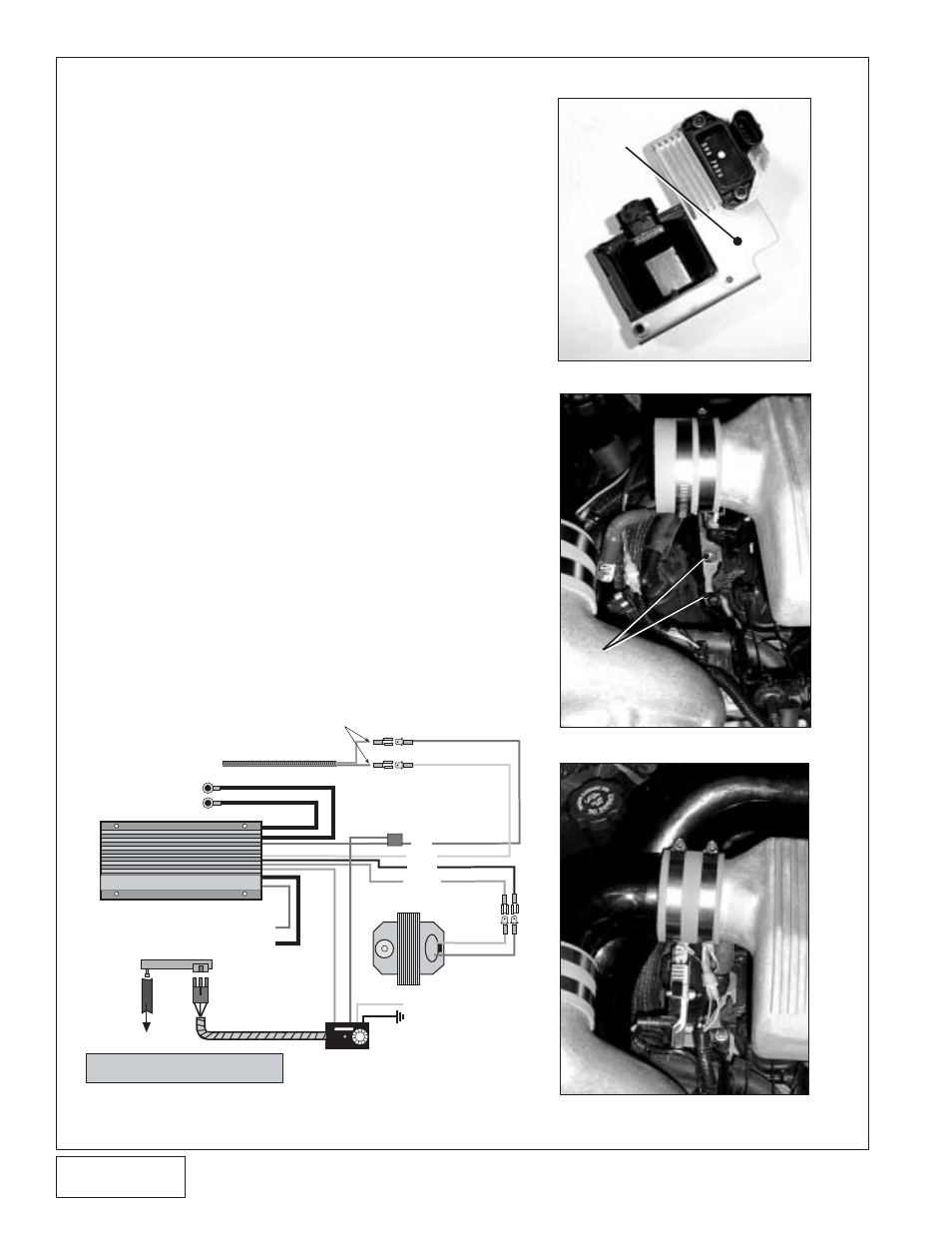

7 . COIL RELOCATION/IGNITION INSTALLATION
A. Remove ignition coil and bracket from the factory
location.
B. Separate the coil and module from factory mounting
bracket.
C. Install the coil and module to the supplied bracket using
the supplied hardware (see Fig. 7-b).
D. Mount the coil and bracket assembly to the intake
manifold. Use the factory studs and nuts to secure the
coil. (See
Fig. 7-c.)
E. Remove the interior center console (between the two
front seats). Mount the supplied ignition control box
assembly into the vehicle interior in one of two possible
locations (alternate mounting locations of the control
box, retard knob and MAP sensor may vary suiting the
taste/preference of the installer). (See
Figs. 7-f, 7-g.)
1. Pickup truck models (S-10/Sonoma):
a. The suggested mounting location is in the
center console between the two seats
(remove the center console and mount the
control unit vertically in the rear). (See
Fig.
7-f.)
b. The retard knob can mount in the forward
portion of the tray in the console. Mount the
MAP sensor under the console. (See
Fig. 7-f.)
