Vortech Alpha H3 Hummer - 2008 - Manual (Page 22)

P/N: 4GN020-015
©2008 Vortech Engineering, LLC
All Rights Reserved, Intl. Copr. Secured
20OCT08 v2.0 08HummrH3(4GNv1.0)
16

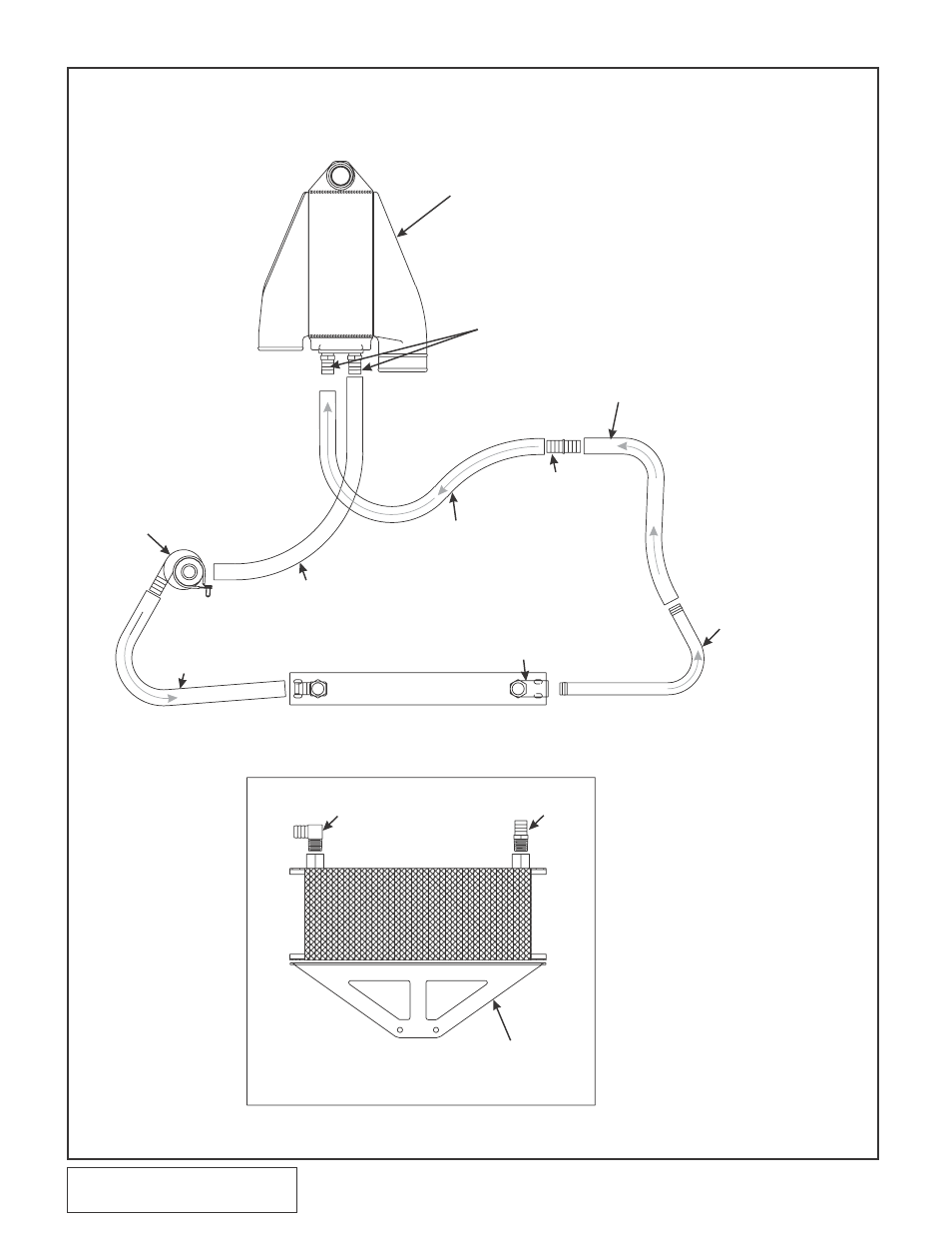

Fig. 7-h
CHARGE AIR COOLER
1/2 NPT TO 3/4” HOSE
BARB (7P500-078)
(7U038-012)
90° A” X 12”
FORMED HOSE
WATER PUMP (8F001-402)
MOUNTED WITH TWO ADEL
CLAMPS TO FAN SHROUD
3/4” HOSE (7U038-000)
CUT TO FIT
APPROXIMATELY 26”
3/4” HOSE (7U038-000)
CUT TO FIT
APPROXIMATELY 23” (7U038-012)
90° A” X 12” FORMED HOSE
(TRIMMED TO APPROX 4.5” X 1.5’ (7U038-150)
150° MOLDED HOSE
(4GV014-010)
FORMED ALUMINUM
TUBE
WATER COOLER
(8N006-010)
90° 1/2 NPT TO 3/4”
HOSE BARB (7P500-026)
1/2 NPT TO 3/4” HOSE
BARB (7P500-026)
(8N010-240) HEAT EXCHANGER
MOUNTING BRACKET MOUNTED
BETWEEN CORE SUPPORT
AND HOOD LATCH SUPPORT
3/4” HOSE UNION
BARBED (7P375-075)
(FRONT VIEW)
7. CHARGE COOLER INSTALLATION, cont’d
