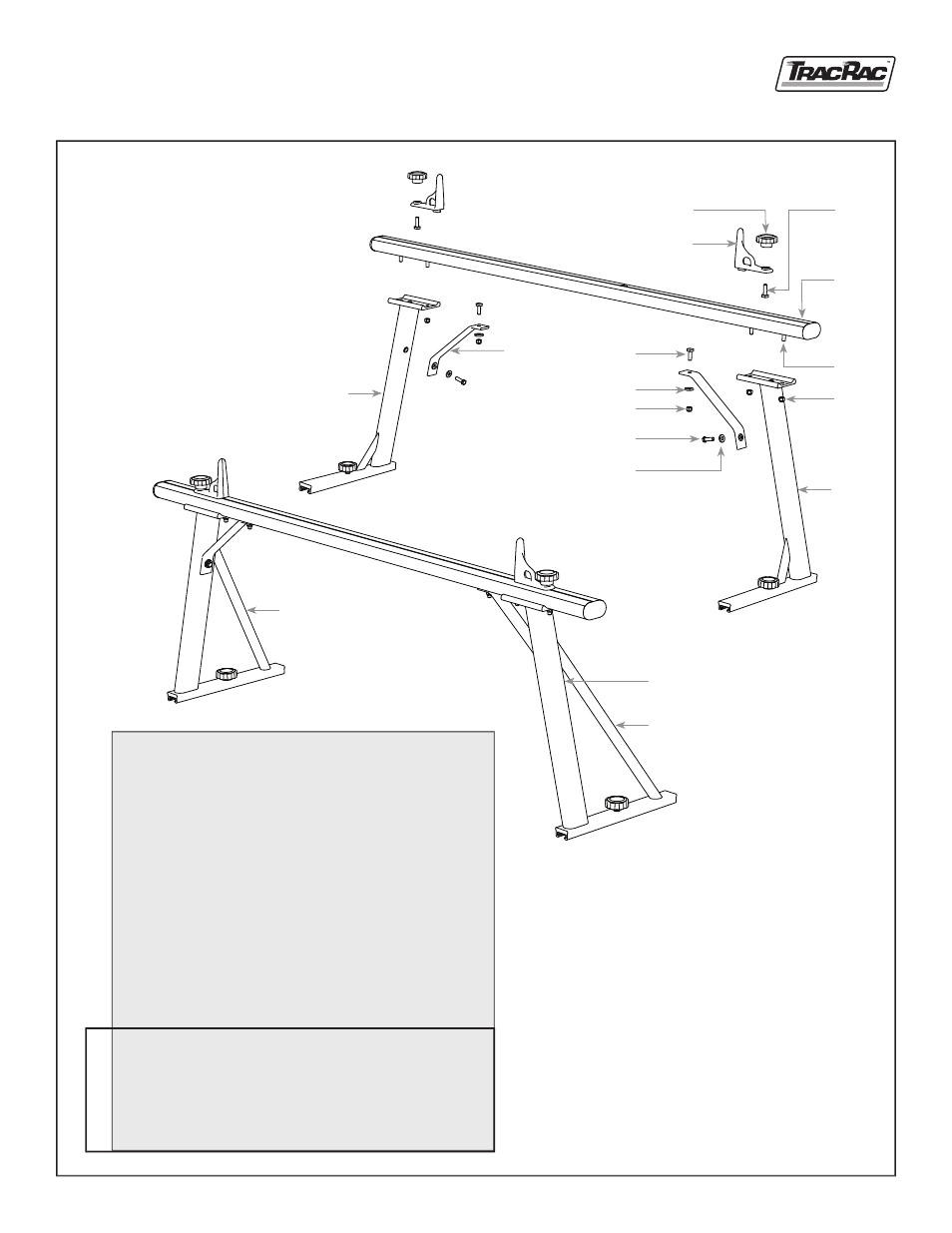

OVERHEAD RACK ASSEMBLY
OVERHEAD RACK ASSEMBLY:
Item Description Qty
1 Rear overhead rack corner-left 1
2 Rear overhead rack corner-right 1
3 Front overhead rack corner-left 1
4 Front overhead rack corner-right 1
5 Brace, corner support 4
6 Crossbar assembly 2
7 Crossbar tiedown 4
8 Knob (crossbar tiedown) 4
9 Cleat 4 ,
crossbar 2
10 T-Bolt 3/8-16 x 1-1/8” 16
11 Washer, 3/8” 8
12 Screw, hex cap 3/8-16 x 1-1/4” 4
13 Nut, self-locking, 3/8”-16 12
