Octave Mode. -­ Continued

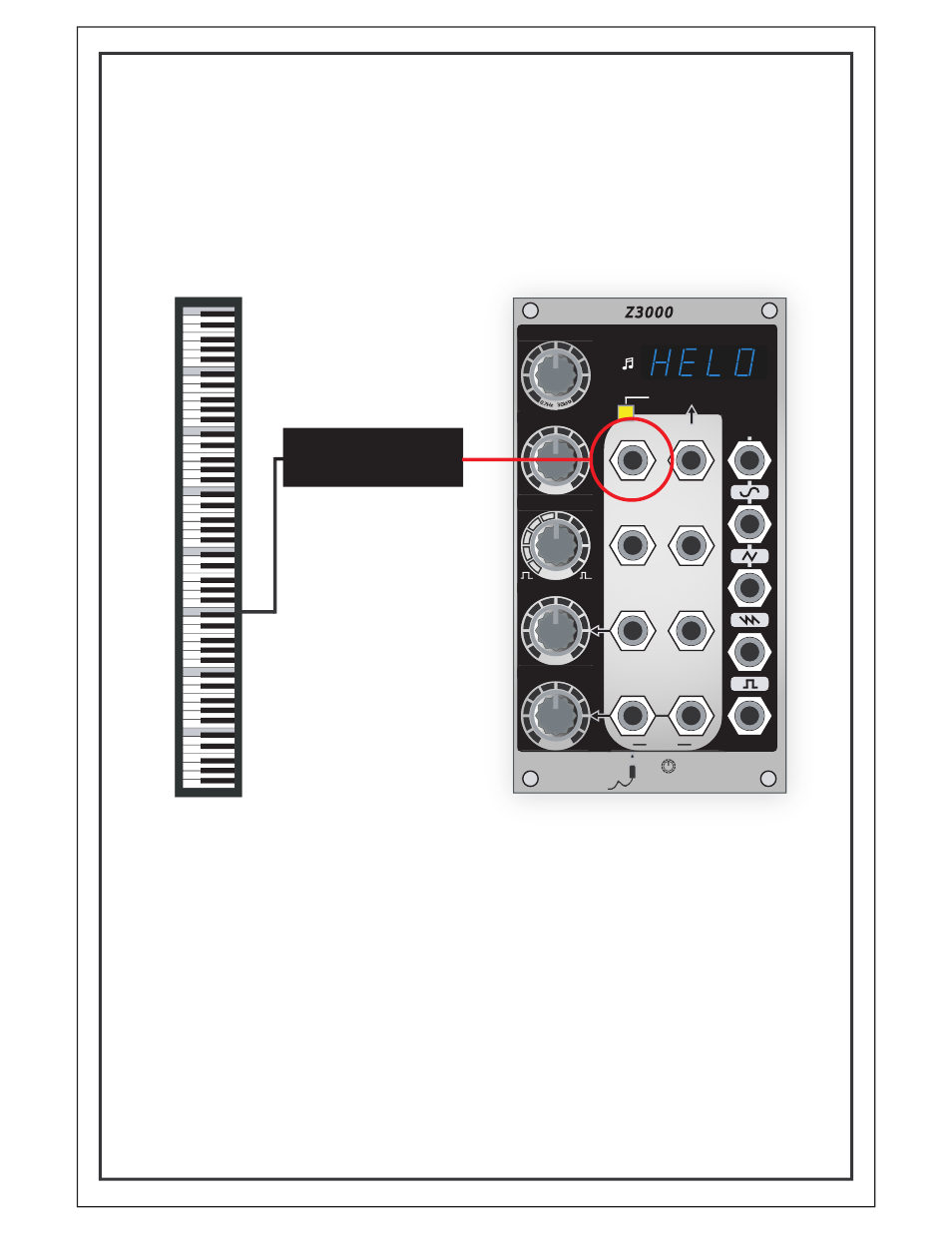

Setting up the Z3000mkII to use Octave Mode is simple.
First, configure a keyboard through a MIDI to CV
converter and plug the CV output of the converter into
the 1V/OCT input on the Z3000.mkII.
Now, set the Z3000 into Octave Mode by pressing the
FREQUENCY/NOTE/OCTAVE button.
Press any low ‘C’ key on the keyboard and use the
FREQUENCY and FINE TUNE knobs to adjust the pitch
of the Z3000mkII until the desired C note is shown on
the display.
Remember, as the frequency approaches the octave,
the display will show “-Cx” or “Cx-” to show if the
module is below or above the pitch of the actual note.
