Appendix D: INSTALLING THE OPTIONAL A773 OIL FILTER
When performing combustion tests on oil fired equipment it is important to use
the optional A773 oil filter to ensure stable readings. The A773 does not have to
be removed when working with other types of fuels.

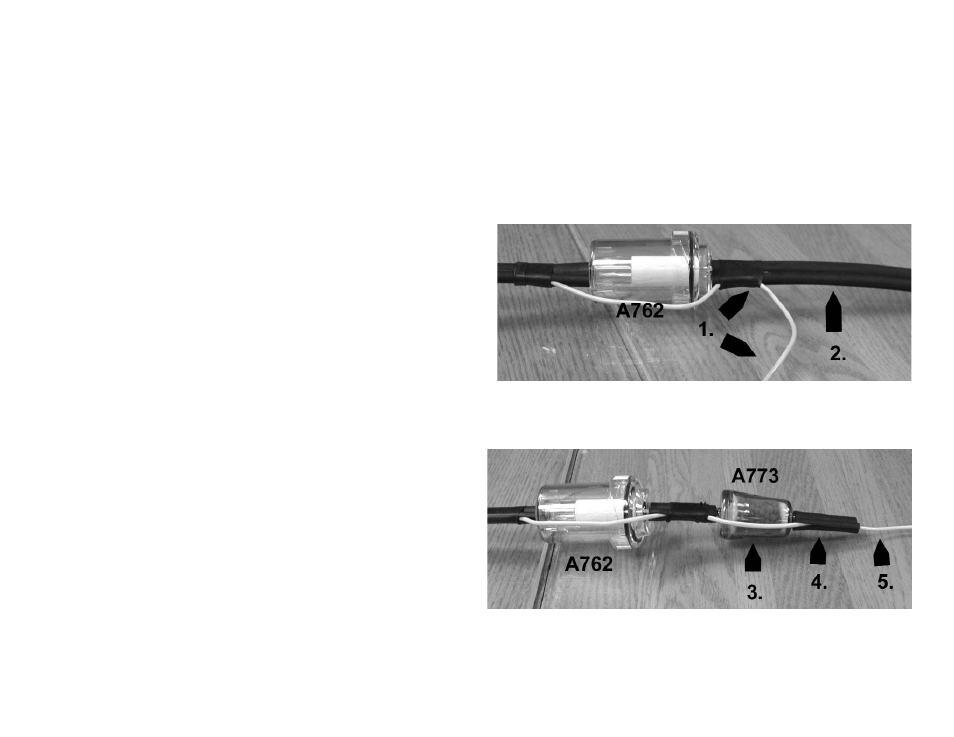

PROCEDURE
1. Pull the yellow thermocouple out of the cord channel in the tubing up to the
cord stop.
2. Cut the tubing approximately 1 1/2 inches from the end of the A762 water trap / fil-
ter assembly.
3. Insert the A773 oil filter into the tube below the A762.
4. Cut the remaining piece of tube into a 1 1/2 inch piece and connect it onto the end
of the A773 oil filter.
5.. Press the thermocouple cord into the cord channel.
The A773 should be replaced when most of the pellets become discolored.
Appendix B: CALIBRATION & SERVICE
It is recommended that the instrument be calibrated every 12 months. Please
consult Test Products International for further details.
The following are consumable parts for the instrument:
In-Line Filter Element (pkg of 5) User Replaceable A762F
Mini Pump Protection Filter Assem. User Replaceable A763
**Oxygen Sensor User / Factory Replaceable A761
**Carbon Monoxide Sensor User / Factory Replaceable A760
**Sensor replacement requires calibration gas.
The following are accessories for the instrument:
Flue Temperature Probe w/k-type Standard A770
'K' Type Temperature Probe Standard GK11M
In-Line Filter Complete Standard A762
Mini Pump Protection Filter Assem. Standard A763
Battery Charger Standard A766
Rubber Boot Standard A765
Infrared Printer Optional A740
Soft Carrying Case Standard A768
Exhaust Spigot Standard A764
PC Software Optional A769
IRDA-RS232C Adapter Optional A767
Appendix C: GUARANTEE
Your TPI 714 Flue Gas Analyzer is guaranteed free from defects in materials and
workmanship for 3 Years from the date of purchase. This guarantee does not
affect your statuary rights. For additional information please refer to the included
warranty card or contact TPI at 800-368-5719.
To obtain warranty performance or maintenance on your analyzer: - Include with
the product your name, address, phone number, written description of the prob-
lem and proof of purchase date. Carefully package and return to:
TPI / Attn. Repair
9615 SW Allen Blvd. Suite 104
Beaverton, OR 97005
