7. SAVING DATA
During testing, data can be stored for later retrieval by following these steps:
1. Press the Store/Logger Key once
'Addr' will be displayed on the top line along with 'SA ' and a location number
from 0 to 9 will be flashing on the screen. Select the required address location
that you wish to save the data to by pressing the Up and Down Arrow Keys
2. Press the Scroll/Enter Key once
The location number which you have chosen will stop flashing and after about
3 seconds the instrument will return to the screen/function you were previous-
ly on.
You have just successfully stored a set of readings which can be either
reviewed on screen (see 6) or sent to the IR printer (see 9)
When data is saved, all data previously in the address will be overwritten.When
saving pressure/draft readings, select an address different from the one used
to save combustion readings.

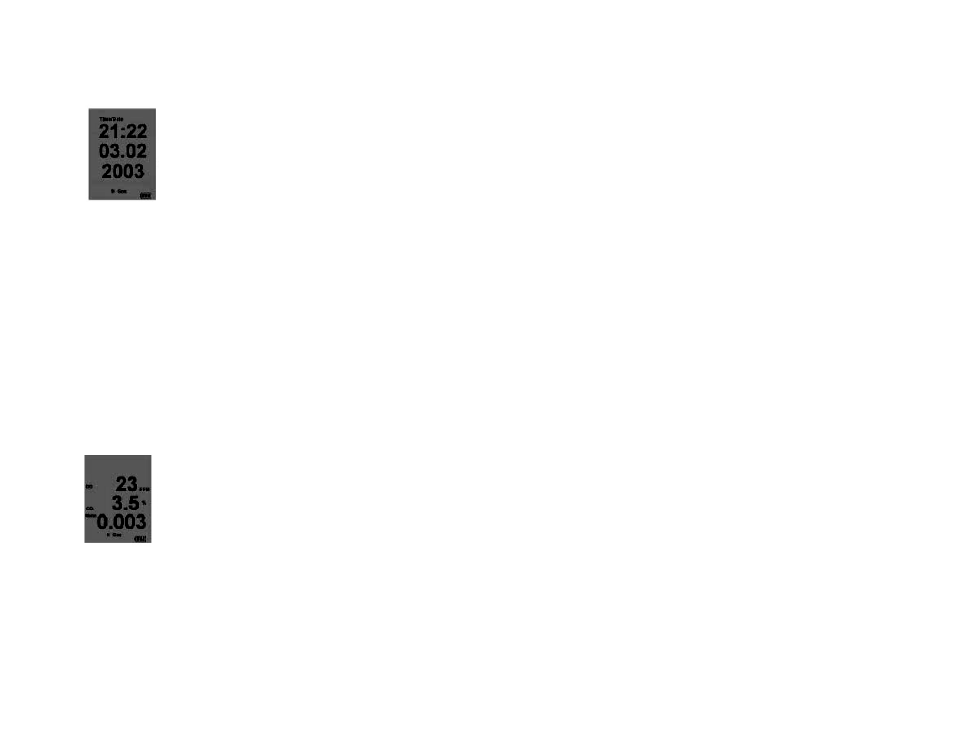

6.4 Function 3: - Date/Time
Press the Func Key repeatedly to access the date/time screen. From this func-
tion Time, Date and Year can be changed.
1. Once the Time, Date, and Year screen is displayed, press the Scroll/Enter
Key once to allow you to change the data.
2. Press the Up Arrow Key to Increase the Minutes
3. Press the Down Arrow Key to Decrease the Minutes
4. Press the Scroll/Enter Key to confirm the desired Minute and move onto
the Hours
5. Repeat steps 2 to 4 to change the Hour, the Day, the Month and the Year
6. The unit will return to normal after the desired Year has been confirmed
6.5 Function 4: - Combustion Analysis
Press the Func Key repeatedly to return to Combustion Analysis mode and
the default display (Combustion display 1)
• Combustion Display 1 (Default Start Up Display)
• Displays Carbon Monoxide (CO) reading in parts per mil-
lion (ppm)
• Displays calculated Carbon Dioxide (CO2) figure in per-
centage (%)
• Displays calculated CO/CO2 (Ratio) figure
Function Display 3 (Date / Time)
Time
Date / Month
Year
