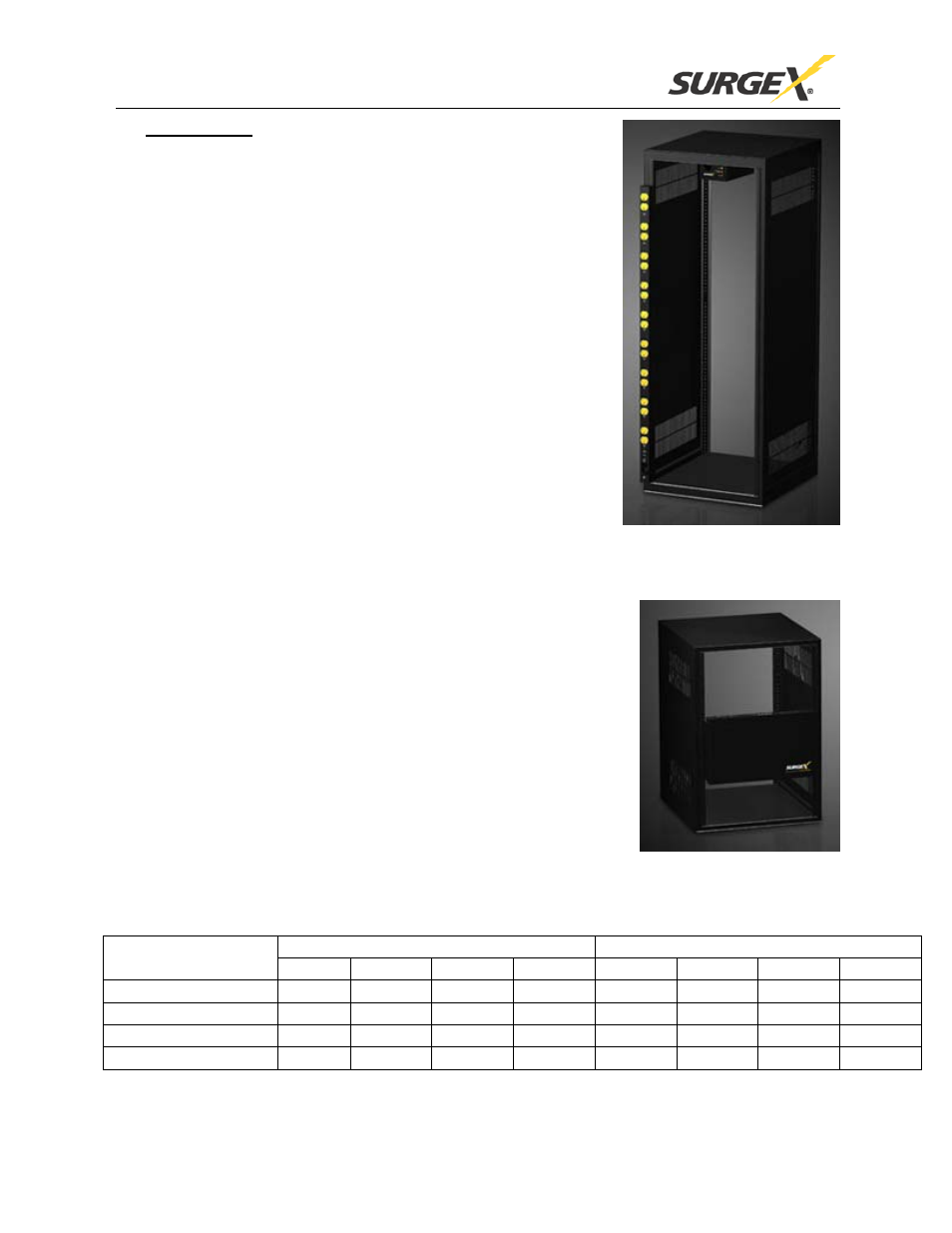

Installation
Compact Mount (CM) products are designed to rest on a flat
surface or to be mounted onto a flat surface, such as a wall. To
mount the CM product, use six 6-32 Phillips pan head screws
(included) to attach the removable mounting brackets (included)
to the sides of the product. The attached power strip available
with CM-1115(20)-RT18 and CM-1115(20)-RT24 is designed to
rest on a flat surface or to be mounted along the side of a standard
equipment rack.
Versatile Rear Mount (VM) products are designed to be mounted
vertically, either to a flat surface or spanning the rear of a standard
equipment rack. Use eight 6-32 Phillips pan head screws (included)
to attach the removable mounting brackets (included) to the sides of
the product. It is recommended to attach the hinged mounting
bracket to the side of the product closest to the input power cord.
3.1 Physical Dimensions
Model
Base Unit
Attached Power Strip
Width
Depth
Height
Weight
Width
Length
Height
Weight
CM-1115(20)-RT
4.95”
9.50”
5.66”
8.5 lb.
NA
NA
NA
NA
CM-1115(20)-RT18 4.95”
9.50”
5.66”
8.5 lb.
1.625”
48”
1.5”
5.8 lb.
CM-1115(20)-RT24 4.95”
9.50”
5.66”
8.5 lb.
1.625”
62”
1.5”
4.8 lb.
VM-1115(20)-RT
17.41”
10.63”
1.73”
11 lb.
NA
NA
NA
NA
