LED Indicator and User Interface Panel
Each InfoStation provides the user with a visual indication of chassis environmental and
configuration statuses, in addition to providing an RS-232 connection for system environmental
monitoring, configuration, and control (Figure 4).

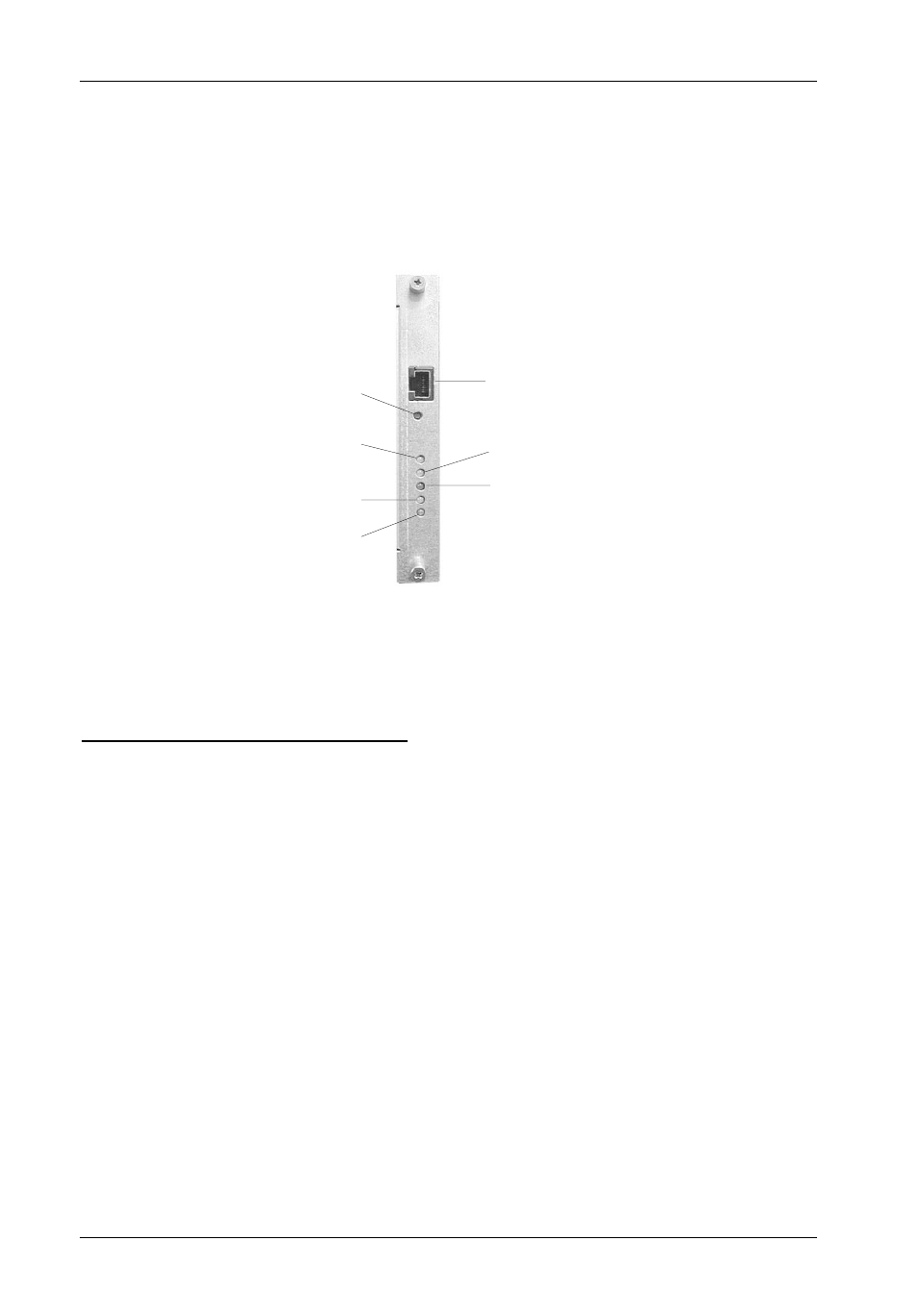

Figure 4: UI Module
LED Indicator/UI Panel Components
RS-232 - RS-232 serial connection used for InfoStation external monitoring and
Serial Port configuration
Reset Switch - Resets InfoStation User Interface Module (will not reset FC-AL bus)
Override - ON = Warning condition commands are overridden
(Amber)
NOTE: Factory default is OFF (recommended).
Mute - ON = Audible alarm is disabled
(Amber)
Fault - ON = One or more fault conditions
(Red)
Warning - ON = One or more warning conditions
(Amber)
Power - ON = Power to the chassis is ON
(Green)
RS-232
Serial Port Reset
Mute
Warning
Power
Fault
Override
