InfoStation 14-Bay FC Installation Guide - Rev. B00 StorCase Technology, Inc.
Installation 3

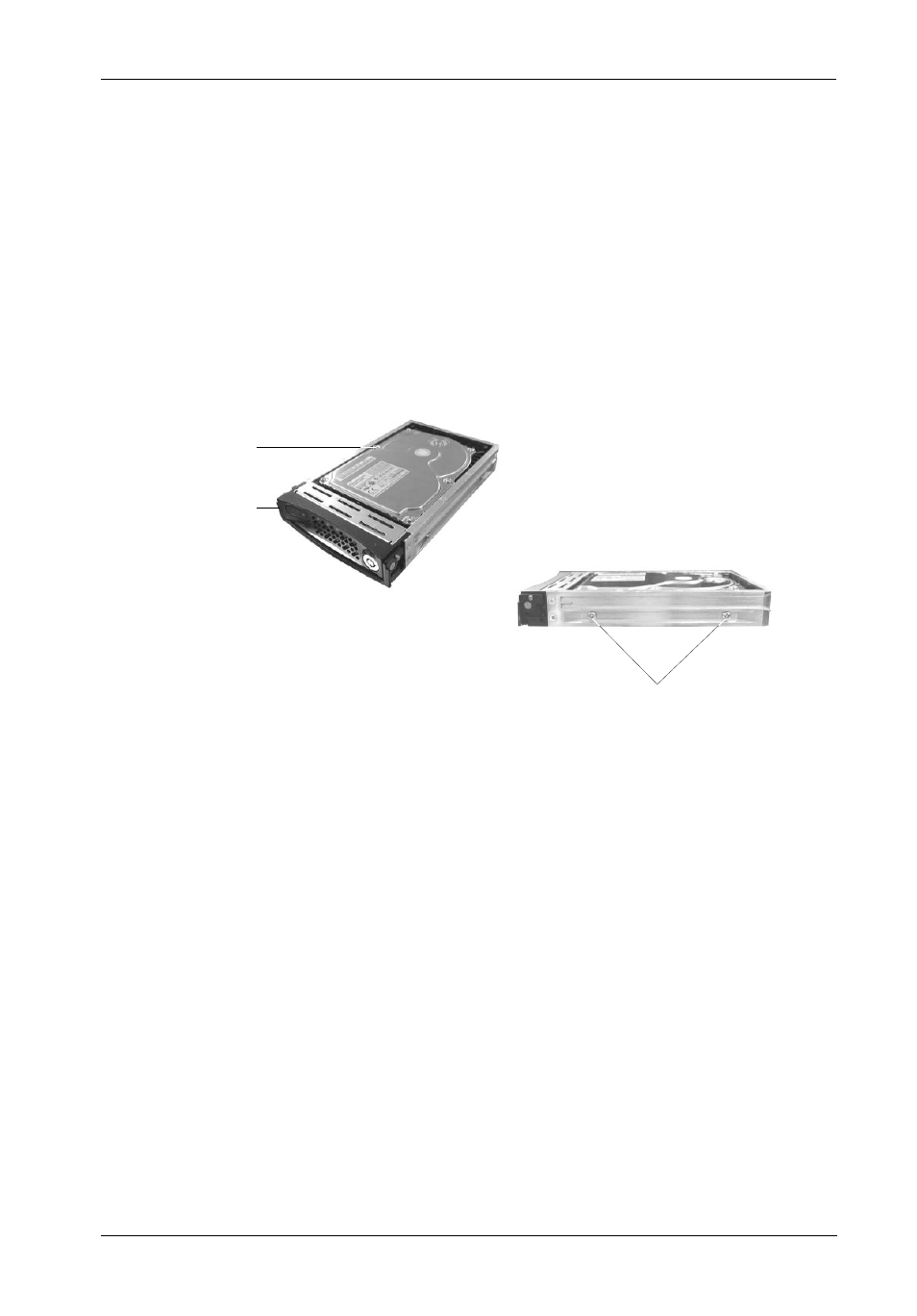

Figure 3: Drive Installation
Installing a Drive into the Drive Carrier
NOTE: A #2 Phillips screwdriver will be required for this procedure.
1. Install the drive(s) into the drive carrier(s). Drive(s) must be side-mounted into the
drive carrier(s) using #6-32 Phillips Pan Hd. screws (Figure 3).
2. After the drive(s) have been installed in to the drive carrier(s), carefully insert the
carrier(s) back into the chassis (refer to section "Inserting a Drive into the Chassis"
for further information).
Drive Compatibility
To assure maximum system compatibility and performance, StorCase recommends Seagate ®
Fibre drives for use in our InfoStation Fibre backplane enclosures.
Please contact StorCase Technical Support to obtain specific part numbers for the latest
StorCase-qualified Fibre drives.
#6-32 Phillips
Pan Hd. Screw
(2 on each side)
IFS14_9
Drive
Carrier
Fibre Channel
SCA Drive
(Not Included) 14FC_07
