InfoStation 14-Bay FC Installation Guide - Rev. B00 StorCase Technology, Inc.
Installation 7
Installing the Power Cord Retainer Clip
WARNING: Handling certain plastic coated cords or cables associated with this product
may expose you to lead, a chemical known to cause birth defects or other
reproductive harm. Wash your hands after handling cable(s).
CAUTION: The power supply/blower module contains NO USER SERVICEABLE PARTS
inside the unit. Warranty is VOID if module is opened. Refer ALL servicing
to qualified service personnel!
This unit has more than one power supply cord. Disconnect two power supply
cords before servicing to avoid electric shock.
1. Turn OFF power to the power supply/blower module via the power switch located
on the module itself. If plugged in, unplug the power cord from the module.
2. Squeeze the retainer clip (Figure 5) and install onto the power supply/blower module
(Step 1 of Figure 6).
3. Flip the retainer clip up and plug in the power cord.
4. Once cord is plugged in, push down the retainer clip so that it locks onto the power
cord (Step 2 of Figure 6).
IF14_23

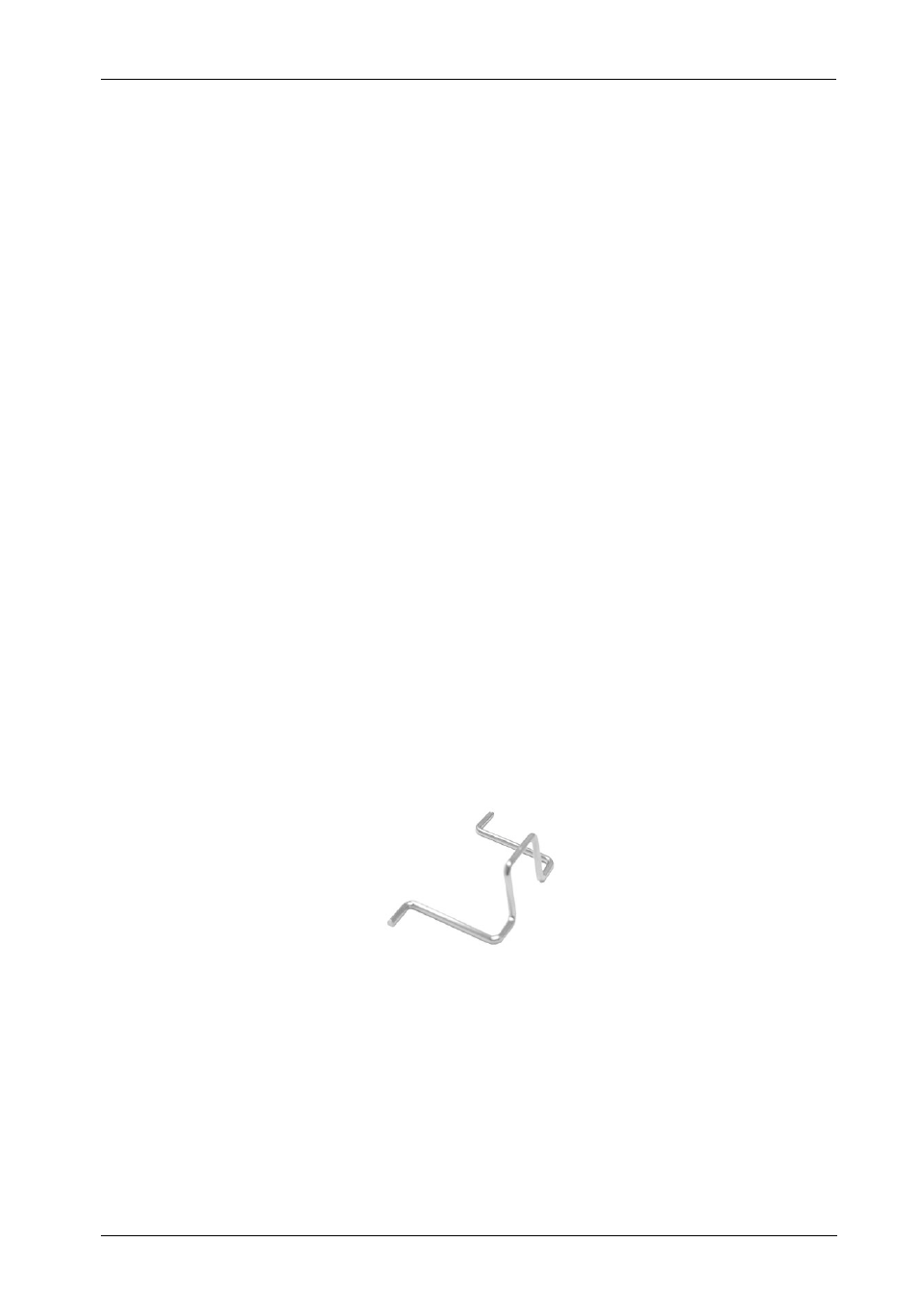

Figure 5: Power Cord Retainer Clip
