10 Installation
StorCase Technology, Inc. InfoStation 14-Bay FC Installation Guide - Rev. B00

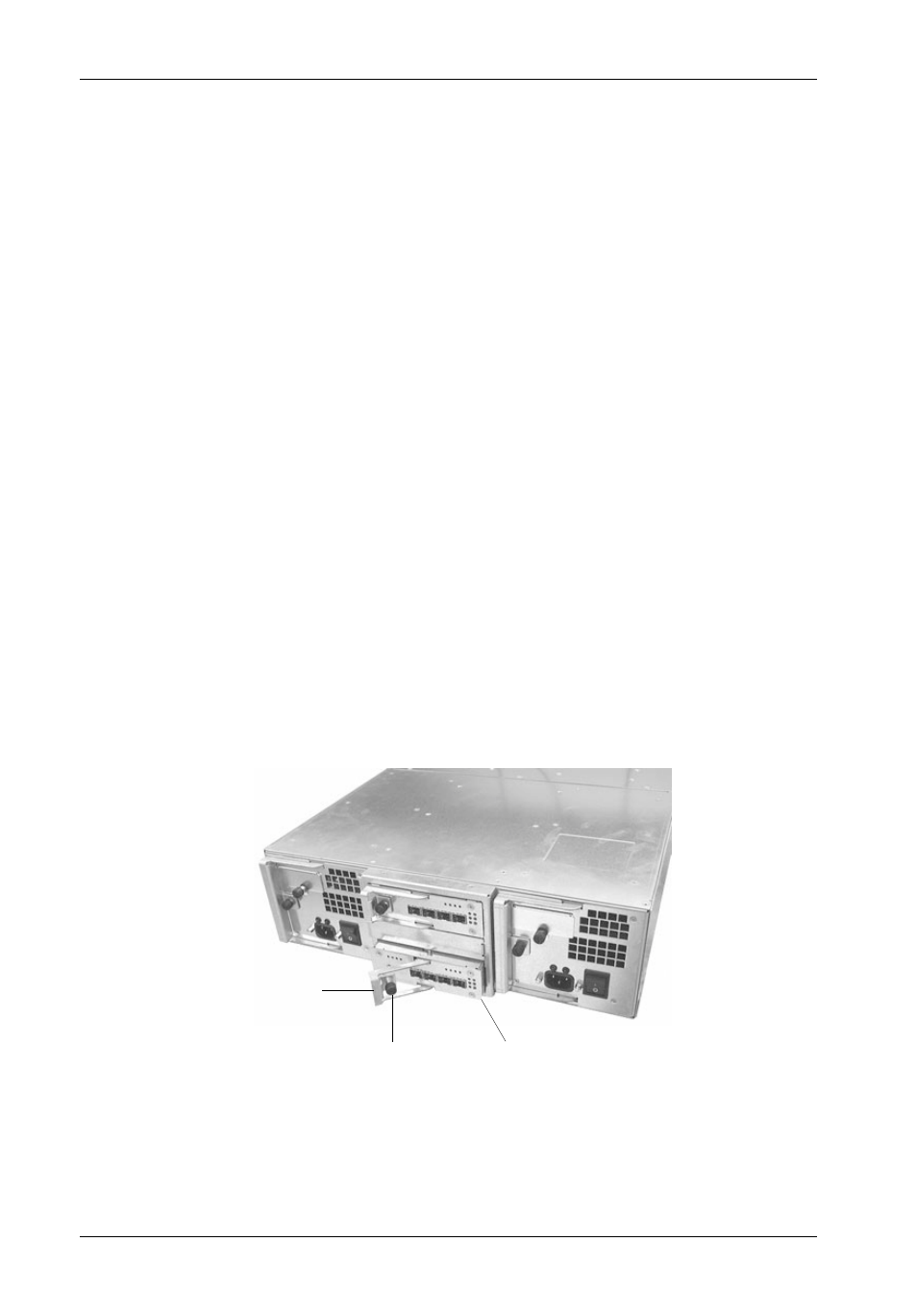

Figure 8: Removing/Installing the PBP Module
Removing/Installing the Port Bypass (PBP) Module
CAUTION: Remove ALL power from the InfoStation before removing the PBP module. The
PBP module contains NO USER SERVICEABLE PARTS inside the unit. Refer ALL
servicing to qualified service personnel!
NOTES: The PBP module is NOT hot-swappable! Remove ALL power to chassis before
removing and installing the PBP module.
An additional PBP Module is available as an upgrade. Contact StorCase for
further ordering information.
1. Unplug the InfoStation and verify that ALL cables have been disconnected.
2. Place the InfoStation on a soft clean surface to protect finish of the chassis.
3. Loosen the locking thumbscrew securing the PBP module to the InfoStation chassis
(Figure 8).
5. Remove the PBP module by grasping handle outwards and pulling out from chassis.
6. To install PBP module, simply reverse above mentioned steps.
NOTE: Blank plate (provided) must be installed if module slot is left empty. Instal-
lation of the blank plate is necessary for proper cooling inside chassis.
Locking
Thumbscrew
PBP “B”
Module
PBP Module
Handle
14FC_09
