4 Installation
StorCase Technology, Inc. DS60 Installation Instructions - Rev. C02

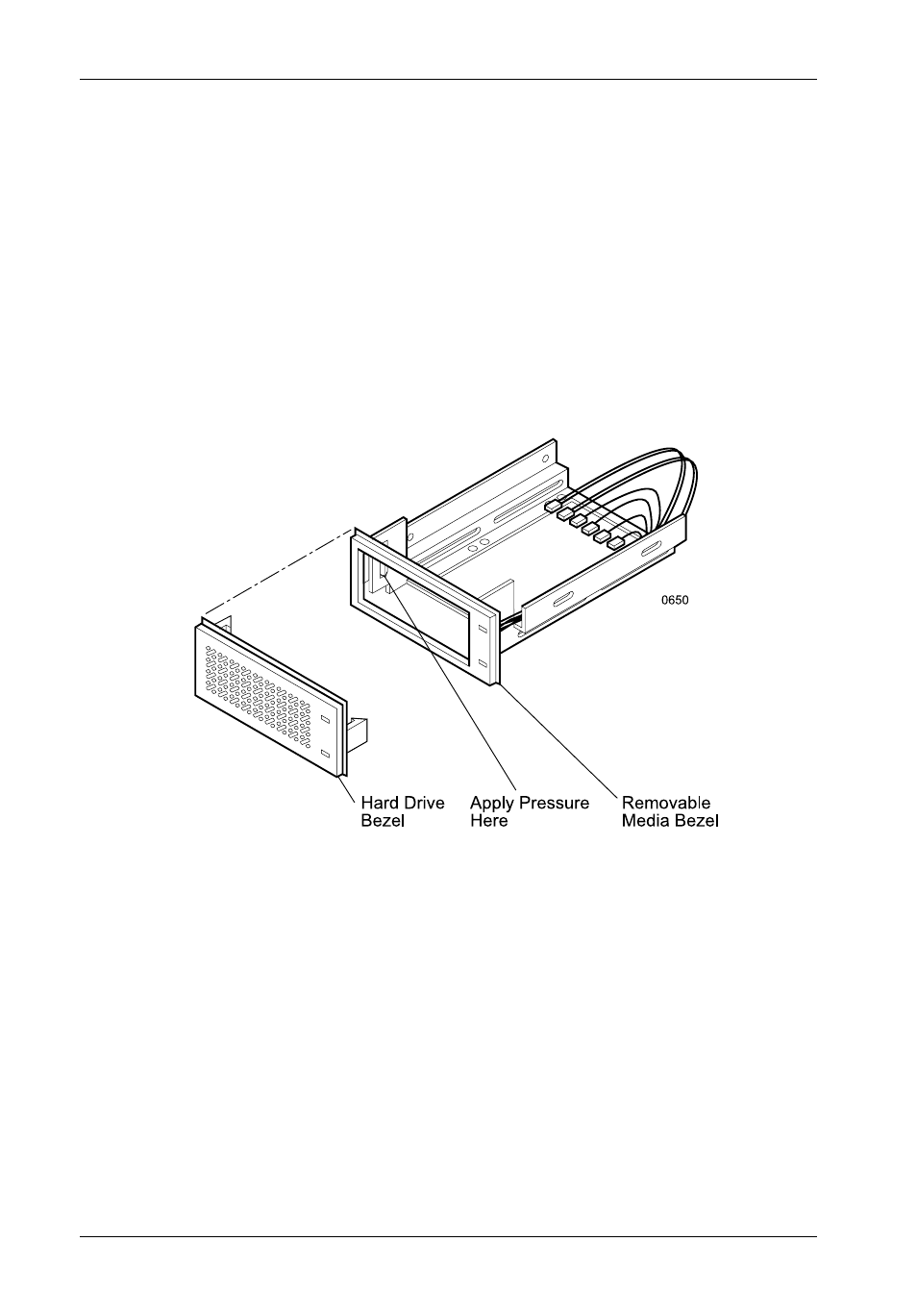

Figure 4: Replacing the Drive Bezel
5. If installing a removable media device, replace the slot patterned drive bezel with the
open front drive bezel as shown in Figure 4. The bezel can easily be removed by
applying gentle pressure with the tip of a flat blade screwdriver.
6. Install the drive(s) into the drive mounting bracket. Side-mount 1-inch high drives (i.e.
DAT drives) using four (4) M3 x 5 metric screws (Figure 5). Make certain that
removable media devices align with the drive bezel. Bottom mount hard drives with
#6-32 x 0.230" screws (Figure 6).
NOTE: If installing a 1" high front-loading device, side-mount it to the drive bracket and
install the appropriate filler panel to the top of the drive bezel as shown in Figure
5.
