2 Slide the cover

towards the back

of the carrier

1 Insert this end

into the carrier

first

3 Secure with #6-32

Phillips Flat Hd.

screws (2 Total)

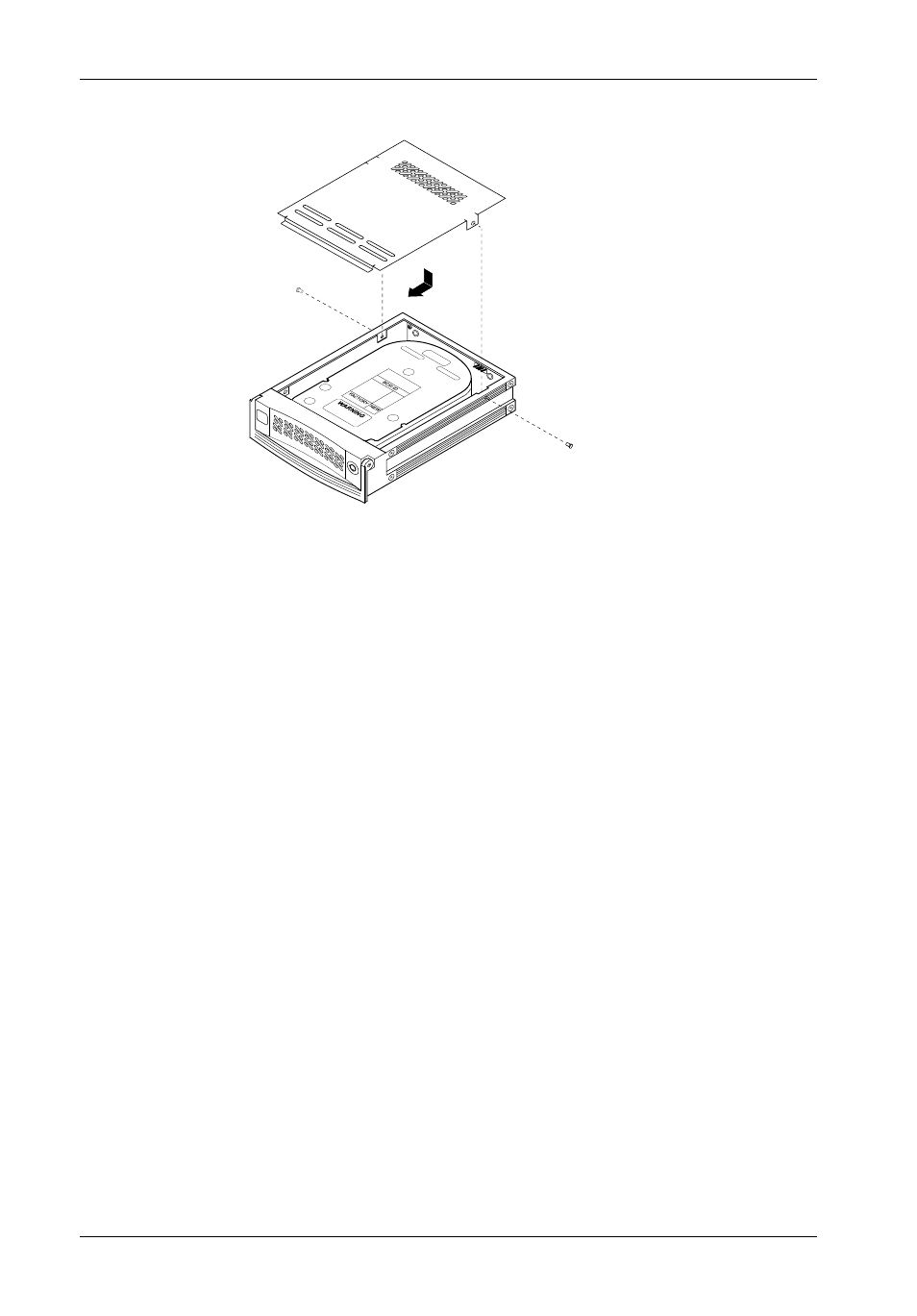

Figure 6: Drive Cover Installation

The DE110 drive carrier is now ready to be inserted into the receiving frame.

NOTE:

The lock on the DE110 carrier functions as a lock and a DC power

switch for the carrier unit. The lock must be engaged in order

to supply power to the carrier and installed drive.

Reboot the computer. The new disks is now ready for use, although it may have

to be formatted or initialized prior to use with your operating system and

applications software.

WARNING:

Unlocking the carrier unit switches DC power OFF to the drive.

Since disk drives require a short amount of time to spin down,

allow about 15 seconds before pulling the carrier unit out of the

receiving frame to avoid possible damage to the drive.

NOTE:

Disable FireWire device on host computer desktop before

turning OFF power (simply right-click on FireWire Icon located

in the System Tray and "disconnect").
