DS322 User's Guide - Rev. A02
Installation 9

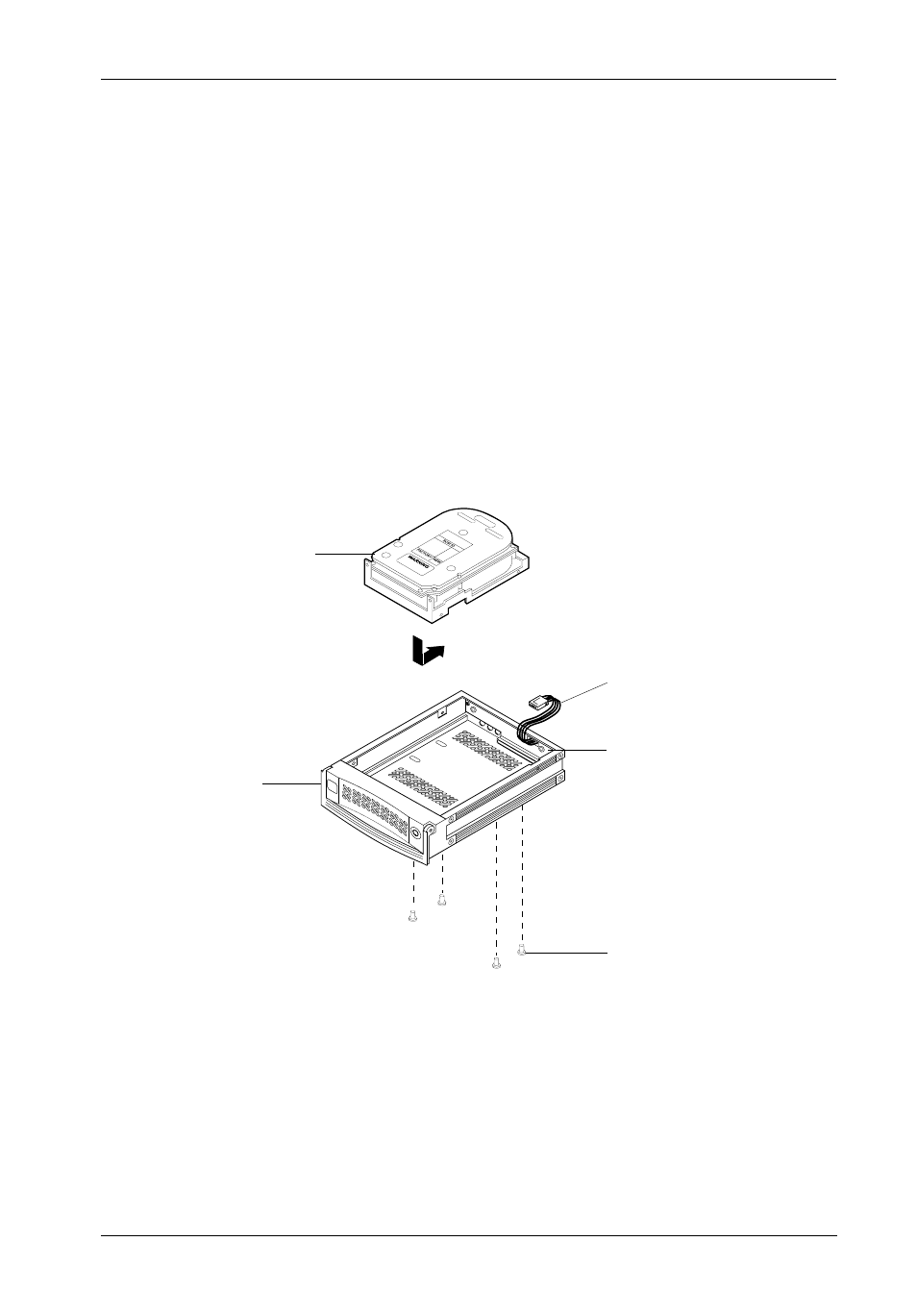

Figure 5: Drive Installation Assembly
Drive Installation
1. Attach the DC power cable (from the Drive Carrier Board) to the drive (Figure
5).
2. Carefully insert the drive into the carrier. Slide the drive towards the Drive Carrier
Board, so that the I/O connector on the drive mates with the connector on the
Drive Carrier Board (Figure 5). Make sure that the DC power cable is not
pinched.
3. Fasten the drive into place with four (4) #6-32 Phillips Flat Hd. screws (Figure
5).
4. Install the provided drive cover (Figure 6).
Drive
(Not Included)
Drive Carrier
Board
DC Power
Cable
#6-32 Phillips
Flat Hd. Screw
(4 each)
Drive
Carrier
