S20A124 User's Guide - Rev. B01 StorCase Technology, Inc.
Installation 11

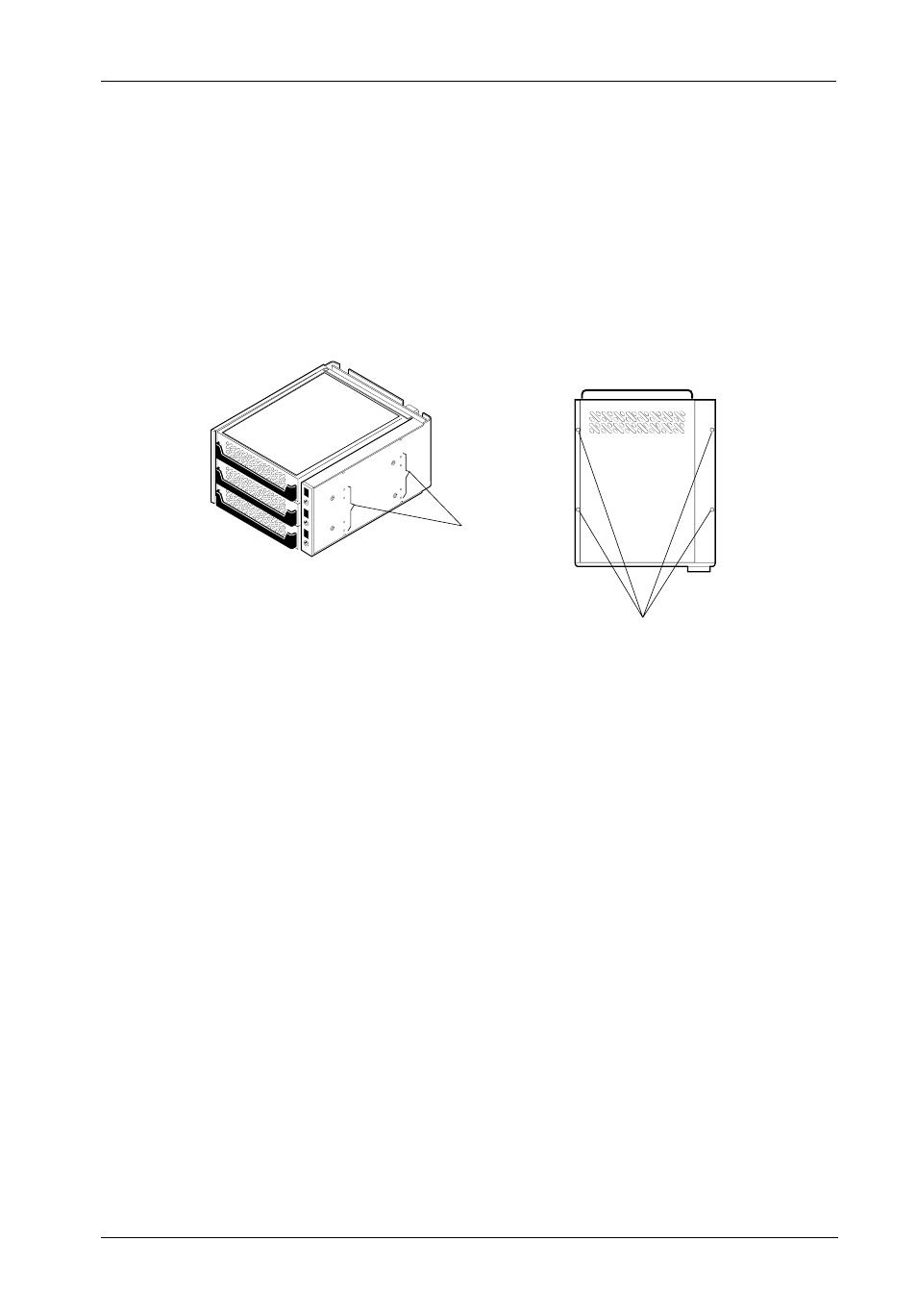

Figure 8: Receiving Frame Mounting Holes
5. Adjust the front of the receiving frame so the carrier slides freely in and out on
the receiving frame guides. The position of adjoining peripheral units may require
adjustment.
6. To connect a drive to a Remote Activity LED in the computer system or expansion
chassis, connect the appropriate cable(s) to the receiving frame motherboard
as shown in Figure 5. Connect J3A, J3B, and J3C Pins 11 & 12 to a remote activity
LED.
7. Connect the I/O cables from the host adapter to the receiving frame. The Pin 1
indicator on the cable must be properly aligned. Refer to Figure 5 for the correct
Pin 1 location.
NOTE: No onboard termination is provided on the DE300. External ter-
mination must be provided.
4. With the drive carriers locked into place inside the receiving frame, install the
DE300 receiving frame into the drive opening in the computer or expansion
chassis. Use the appropriate guides to position the DE300, and fasten it into place
with the four (4) #6-32 Phillips Pan Hd. screws provided. Figure 8 illustrates the
location of the mounting holes. Mounting holes are provided on each side and
the bottom of the receiving frame to accommodate a variety of mounting
configurations. Use the mounting holes which best suit the computer or
expansion chassis configuration.
0520a
Mounting
Holes
(Bottom)
Front of Unit
Mounting
Holes
(Right)
