14 Installation
StorCase Technology Inc. DE300i-SWC User's Guide - Rev. A00
Front of
Receiving
Frame
0445
0
2
4
6
8
A
C
E
0 = 10 SECONDS 8 = 50 SECONDS
1 = 15 SECONDS 9 = 55 SECONDS
2 = 20 SECONDS A = 60 SECONDS
3 = 25 SECONDS B = 65 SECONDS
4 = 30 SECONDS C = 70 SECONDS
5 = 35 SECONDS D = 75 SECONDS
6 = 40 SECONDS E = 80 SECONDS
7 = 45 SECONDS F = 85 SECONDS
Spin Down/Up Time

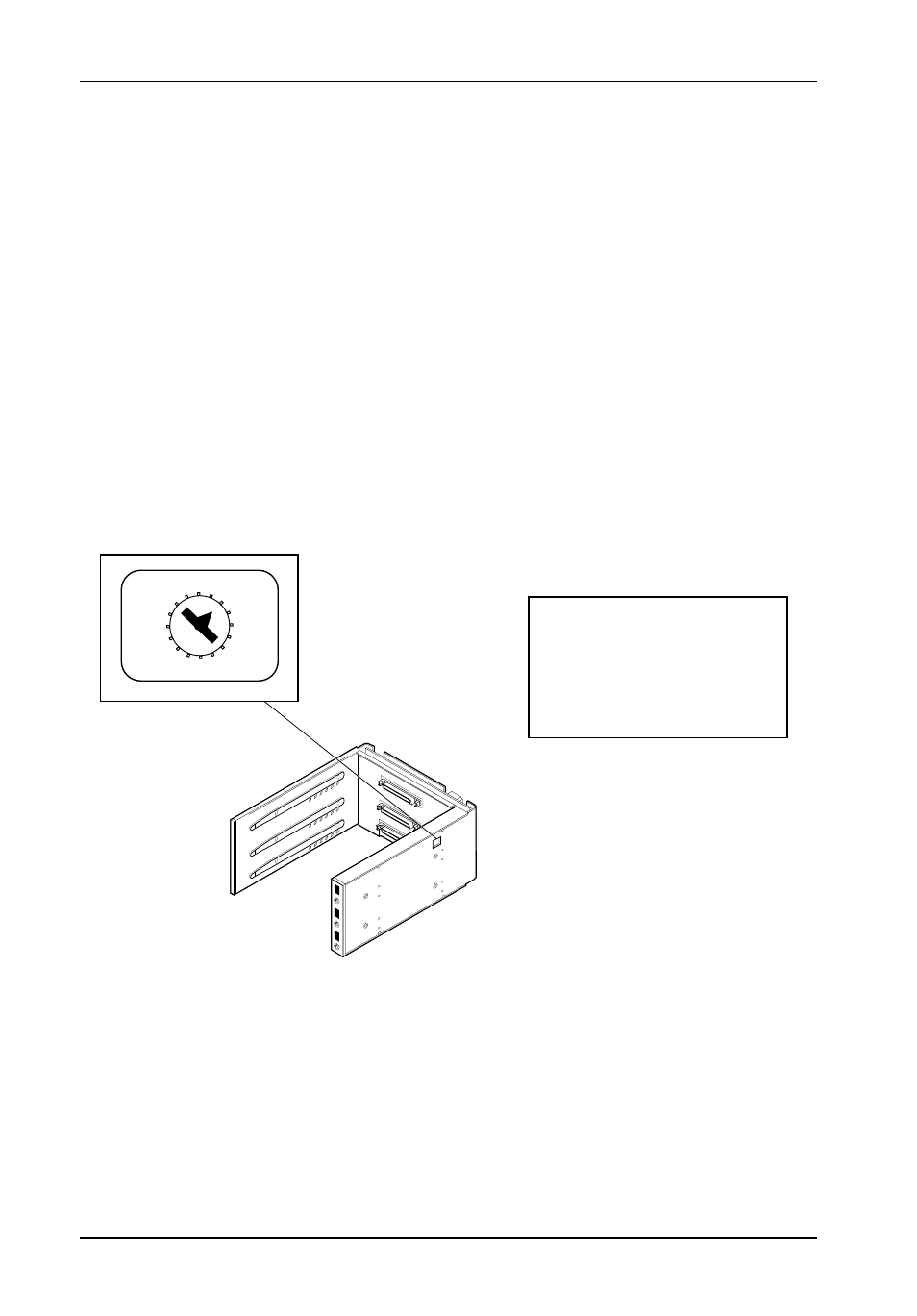

Figure 10: Device Spin Down/Up Timer
Adjusting the Spin Down/Up Timer
NOTE: The timer for device spin down is controlled by a small selector,
located in a cutout on the side of the DE300i-SWC receiving frame as
shown in Figure 10. The amount of time required for a drive to spin
down is approximately 15 seconds or more. This number can vary
depending on the type of SCSI device and manufacturer (some
devices may require 45 seconds or more). The factory configuration
is set for 20 seconds. A different delay time may be selected with the
provided alignment tool. Refer to the SCSI device manufacturer's
manual for more information on required device spin down time.
