Installing the receiving frame – StorCase Technology DE300i-SWC User Manual
Page 16
DE300i-SWC User's Guide - Rev. A00
StorCase Technology Inc.
Installation
9
0439
Pin 1
Pin 2
ID0
Pin 3
Pin 5
Pin 7
Pin 9
Pin 11
Pin 13
Pin 15
Pin 17
Pin 19
Pin 21
Pin 4
ID1
Pin 6
ID2
Pin 8
ID3
Pin 10 DT (Factory Installed Jumper)
Pin 12 RLED
Pin 14 DF
Pin 16 SYNC
Pin 18 TPWP
Pin 20 WTP
Pin 22 LK (Factory Installed Jumper)
Ground
Row
Signal
Row

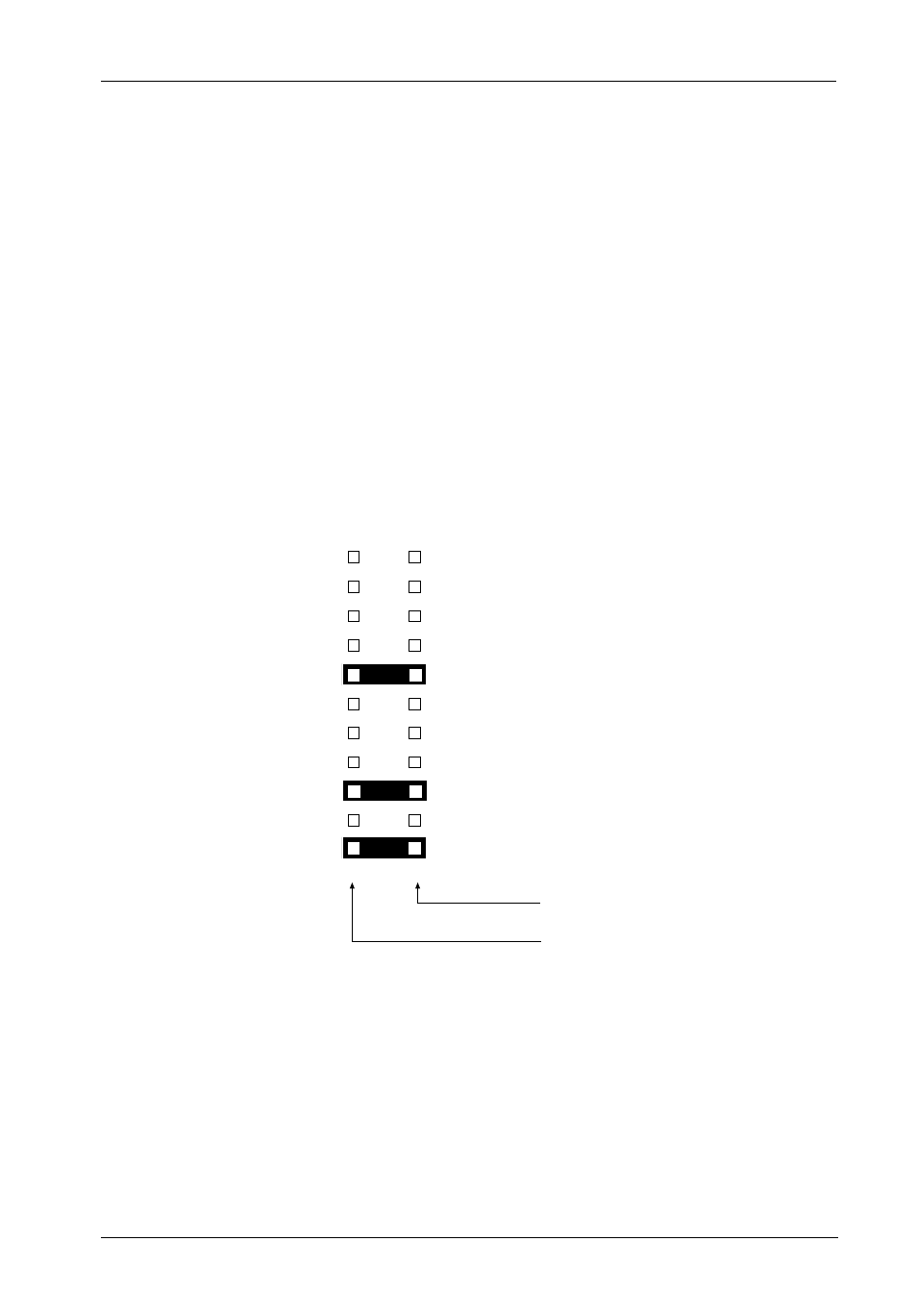

Figure 7: Receiving Frame Motherboard J3 Option Pins
Installing the Receiving Frame
The drive should be installed into the carrier before installing the receiving frame into the
mounting bay of a computer or expansion chassis.
NOTE:
Use a #2 Phillips screwdriver during this procedure.
1.
Turn OFF power to the computer.
2.
Open the computer system according to the manufacturers instructions. If
necessary, temporarily remove any expansion boards that may make
installation difficult.
3.
To select the DE300i-SWC unit ID remotely through the computer system or
external expansion chassis, the appropriate cable from the system must be
connected to the option pins (1-8 on connectors J3A, J3B, J3C) on the rear of
the receiving frame as shown in Figure 7.
