Installation 11
DE75i-SWC160 User's Guide - Rev. B01 StorCase Technology, Inc.

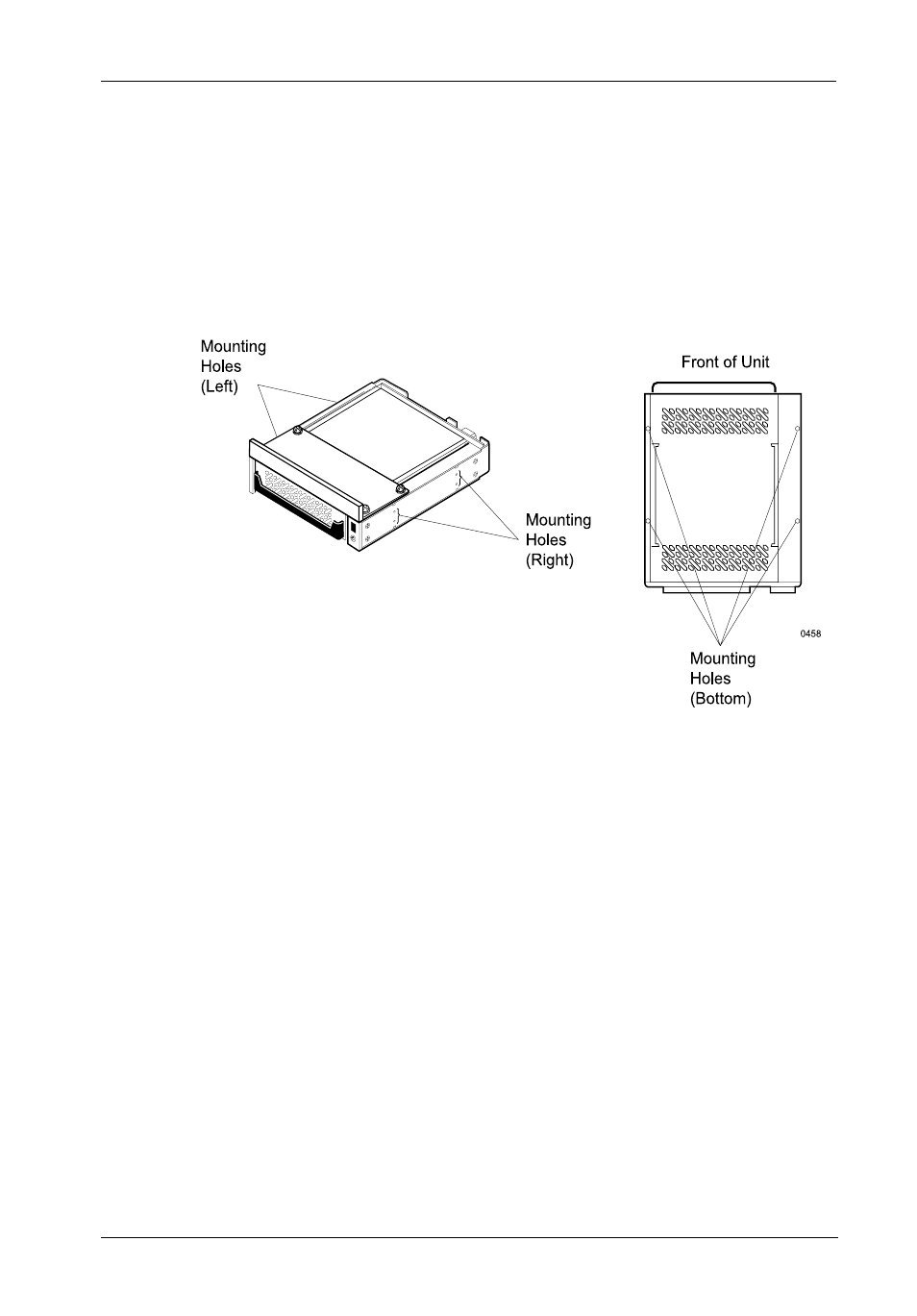

Figure 8: Receiving Frame Mounting Holes
5. Adjust the front of the receiving frame so the carrier slides freely in and out on
the receiving frame guides. The position of adjoining peripheral units may require
adjustment.
6. To connect a drive to a Remote Activity LED in the computer system or expansion
chassis, connect the appropriate cable(s) to the receiving frame motherboard
as shown in Figure 5. Connect Option Jumper Block Pins 11 & 12 to a remote
activity LED.
7. Connect the I/O cable from the host adapter to the receiving frame. The Pin 1
indicator on the cable must be properly aligned. Refer to Figure 5 for the correct
Pin 1 location.
NOTE: No onboard termination is provided on the DE75i-SWC160.
External termination must be provided.
4. With the drive carrier locked into place inside the receiving frame, install the
DE75i-SWC160 receiving frame into the drive opening in the computer or
expansion chassis. Use the appropriate guides to position the DE75i-SWC160,
and fasten it into place with the four (4) #6-32 Phillips screws provided. Figure
8 illustrates the location of the mounting holes. Mounting holes are provided on
each side and the bottom of the receiving frame to accommodate a variety of
mounting configurations. Use the mounting holes which best suit the computer
or expansion chassis configuration.
