Introduction 3
DE75i-SWC160 User's Guide - Rev. B01 StorCase Technology, Inc.

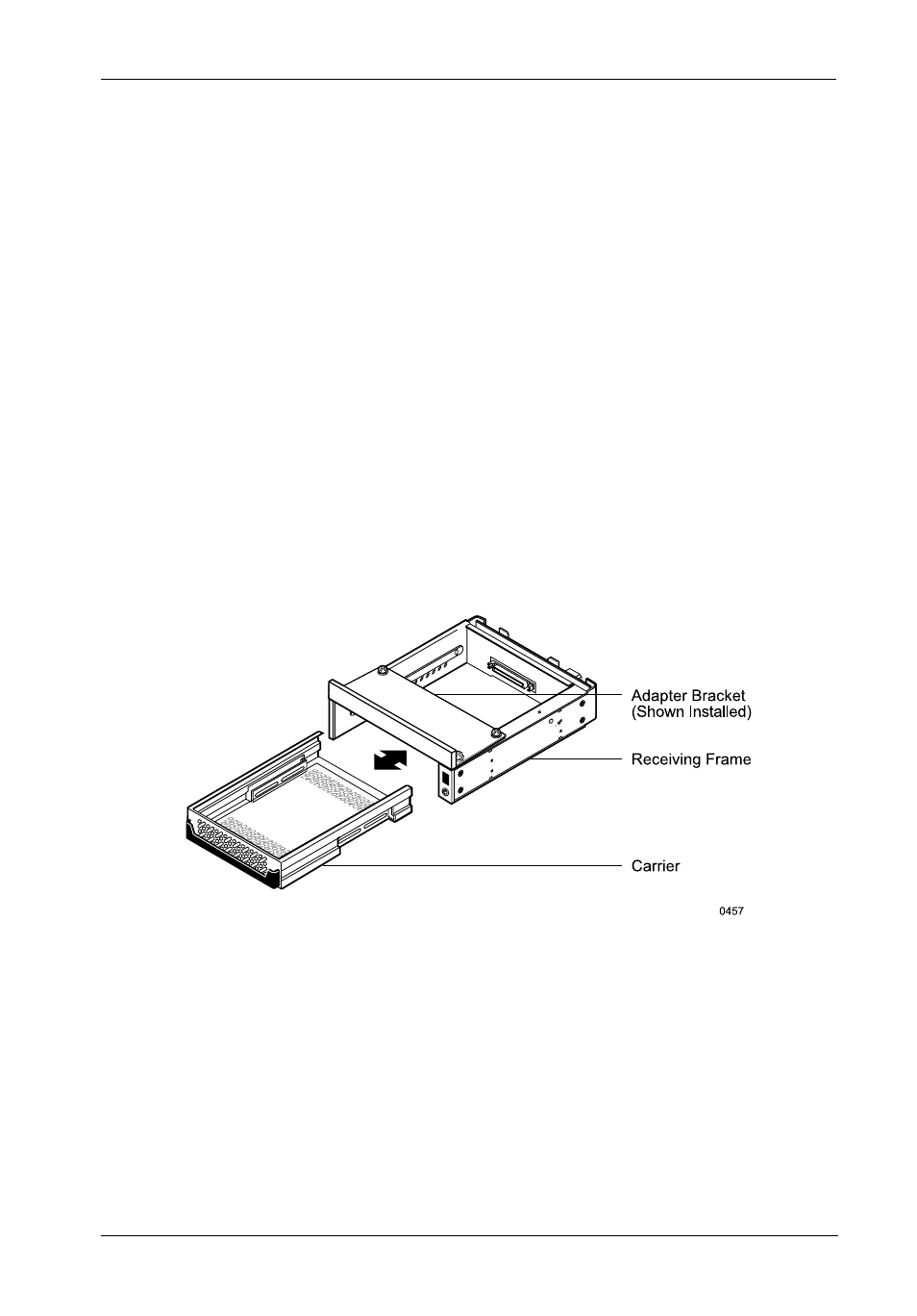

Figure 2: DE75i-SWC160 Receiving Frame and Carrier
This User's Guide describes the steps required to install the StorCase Data Express DE75i-
SWC160 removable enclosure inside a computer peripheral bay or external expansion
chassis. This guide supplements documentation provided with the host computer system,
operating system, and the drive to be installed within the carrier.
General Description
The StorCase Technology Data Express ® DE75i-SWC160 is composed of a receiving frame
which supports SCSI Wide Ultra160 interfaces and fits within a 5.25" half-height peripheral
slot. This 16-bit I/O can support up to 160MByte/sec transfer rates. The receiving frame
contains one (1) removable drive carrier designed to provide durable and reliable mounting
for one (1) 3.5" form factor, low-profile (up to 1" high) 80-pin Single-Connect Attachment (SCA)
SCSI drive (Figure 2).
The DE75i-SWC160 allows a drive to be removed and transported to another DE75i-SWC160-
equipped computer or expansion chassis, and also provides the ability to secure sensitive data
by removing and storing the drive safely for future use.
NOTES: DE75i-SWC160 requires LVD chassis and cabling.
DE75i-SWC160 supports implementations with a maximum of 9 devices
(with an available 9-device internal cable). Contact StorCase for
further information.
