S20A114 User's Guide - Rev. A01 StorCase Technology, Inc.
Installation 9
Installing the Receiving Frame
NOTE: For SCSI Ultra160 operation, the DE75 requires Ultra160 chassis and cabling.
The drive should be installed into the carrier before installing the receiving frame into the
mounting bay of a computer or expansion chassis.
NOTE: Use a #2 Phillips screwdriver during this procedure.
1. Turn OFF power to the computer.
2. Open the computer system according to the manufacturer’s instructions. If
necessary, temporarily remove any expansion boards that may make installation
difficult.
3. To select the DE75 unit ID remotely through the computer system or external
expansion chassis, the appropriate cable from the system must be attached to
option Pins 1-8 on the rear of the receiving frame (Figure 7). Set the unit ID to "0"
for remote ID selection (Figure 9).

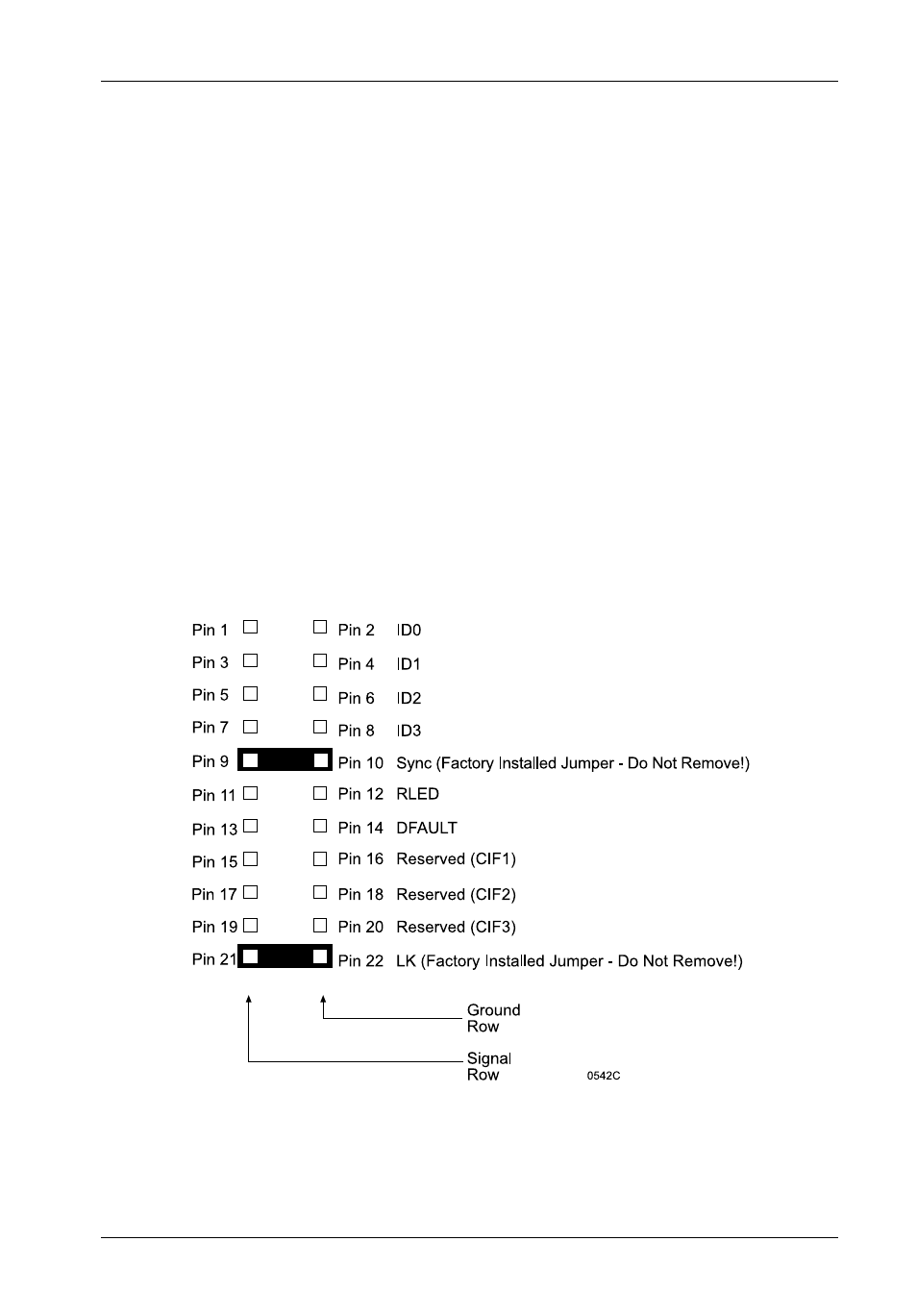

Figure 7: Receiving Frame Motherboard Option Pins
